Connecting the AC Power Supplies
Connecting the Removed Outer Jacket (ROJ) Power Cords
AC Input Wire Color and Cord Type
DC Output Wire Color
Parts Required
Only parts provided by Alcatel-Lucent Enterprise should be used when installing the power supplies.

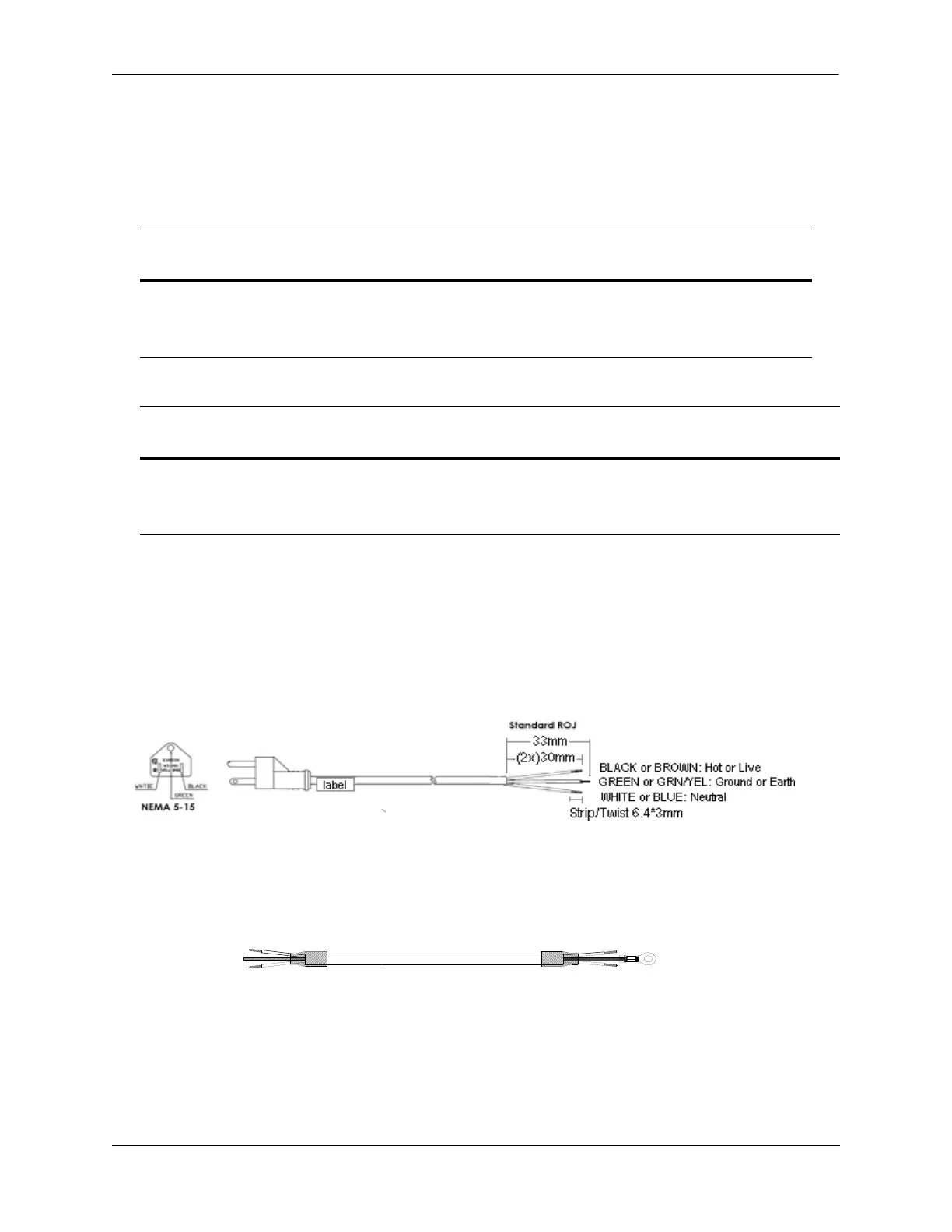

The PoE power supply uses both an input and output power cord with Removed Outer Jackets (ROJ):
• An AC power cord that provides input power from an AC power source to the power supply.
• An output power cord that provides output power from the power supply to the chassis.
AC ROJ Input Power Cord
DC ROJ Output Power Cord
Power Supply Label
North America Wire
Color
International Wire Color
L (Line) Black (30mm ROJ) Brown (30mm ROJ)
N (Neutral) White (30mm ROJ) Blue (30mm ROJ)
Protective Ground (PG) Green (33mm ROJ) Green/Yellow Stripe (33mm ROJ)
Power Supply Label
North America and International (Use same
power cord)
V- Red (ROJ)
V+ Black (ROJ)
Protective Ground (PG) Green (ROJ with grounding lug)
Red (V-)
Green with ring (Ground)
Black (V+)
Red (V-)
Green (Ground)
Black (V+)
