Installing Power Supplies for Rear Mount Trays
1. Orient the power supply as shown below. Insert the guide pins (located on either side of the DB-15
connector) into the guide holes in the rear of the chassis.

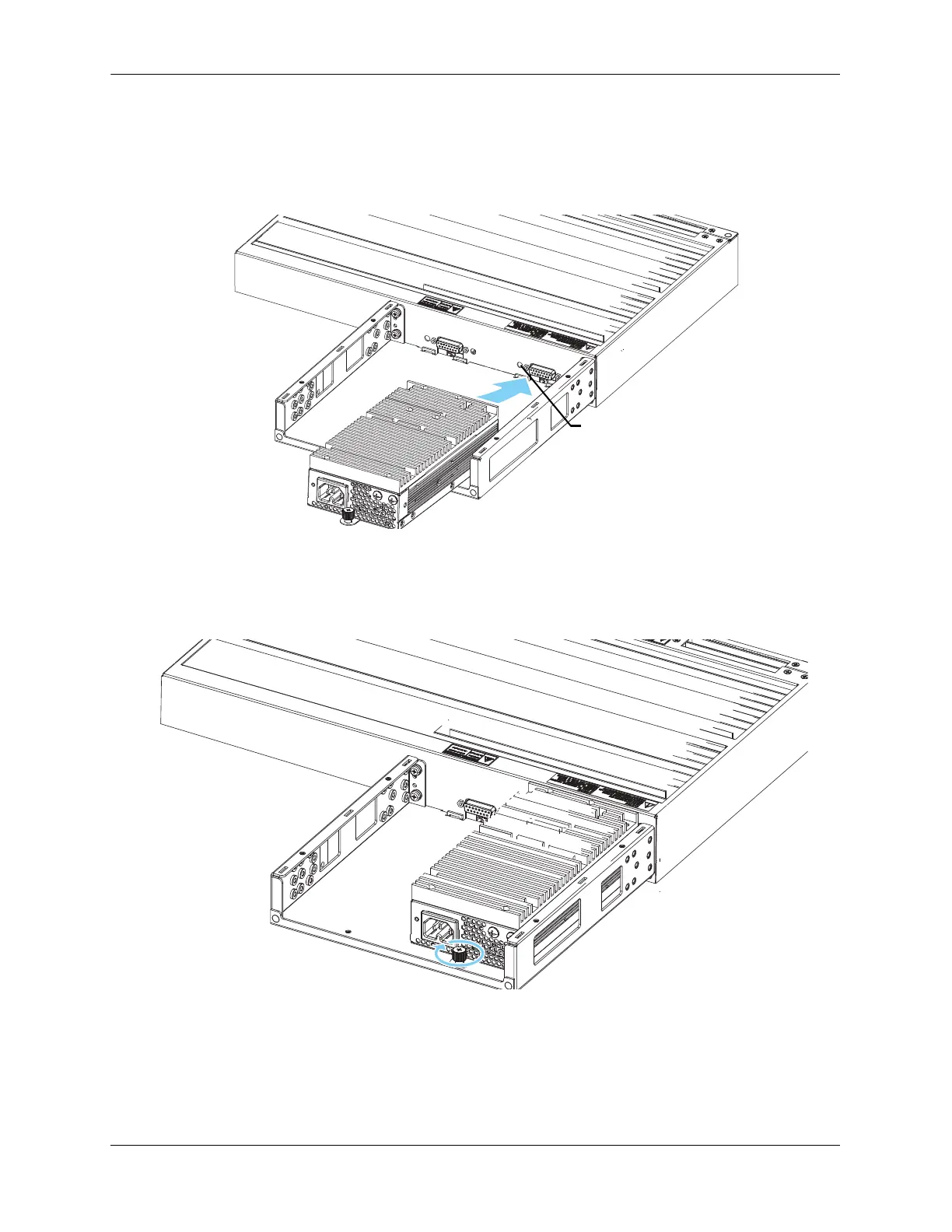

Align power supply guide pins and slide into postion
2. Push the power supply into place until the connector is fully seated and tighten the thumb screw at
the front of the power supply unit.
Secure power supply with thumb screw
3. For redundant power supply configurations, repeat these steps using the power supply connector
and thumb screw hole located at the other side of the chassis and power supply tray.
