Chassis and Power Supplies OmniSwitch 6465 Chassis Details
OmniSwitch 6465 Hardware Users Guide December 2019 page 3-7
OS6465-P28

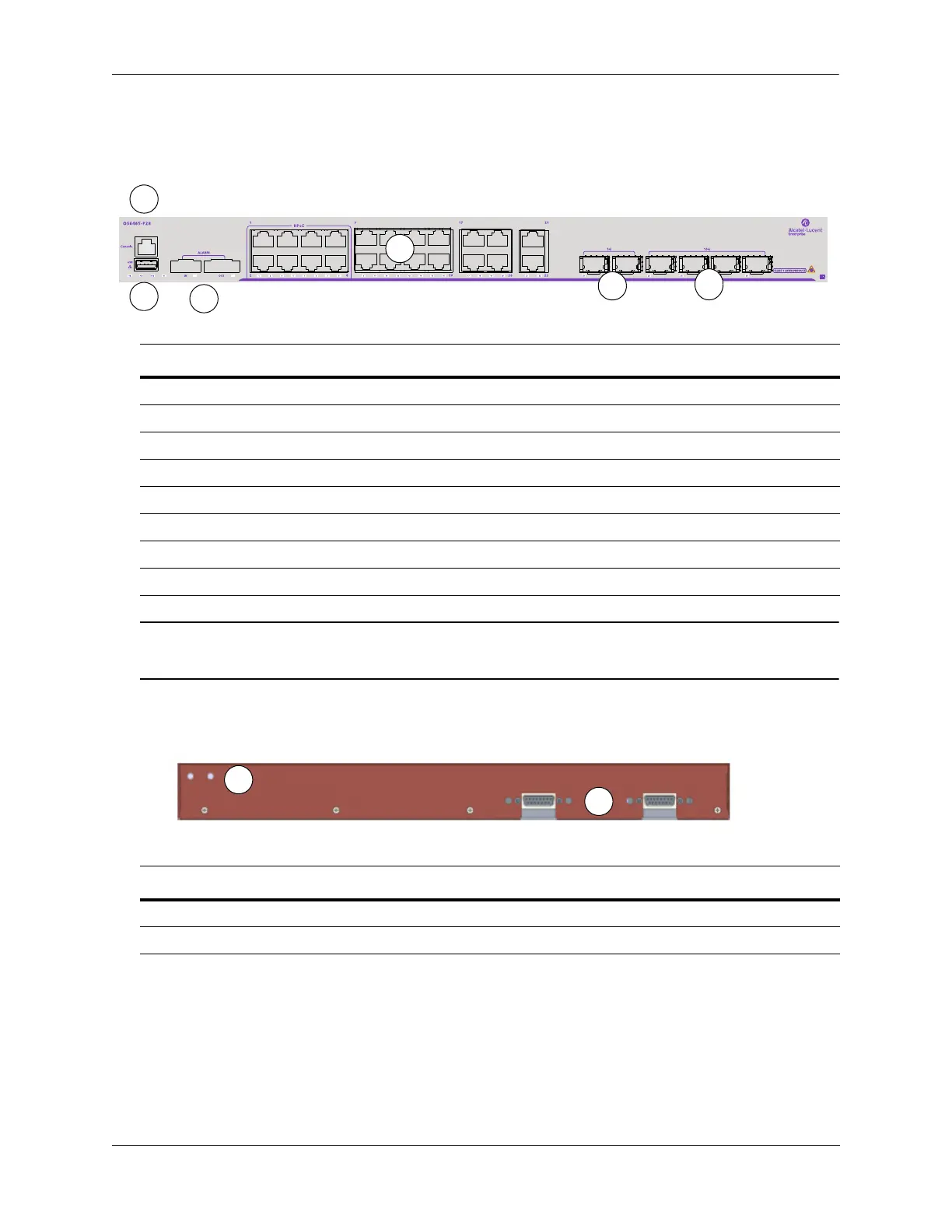

OS6465-P28 Front Panel
CLASS 1 M LASER CAUTION. CAUTION - CLASS 1 M LASER RADIATION WHEN OPEN.
DO NOT VIEW DIRECTLY WITH OPTICAL INSTRUMENTS
OS6465-P28 Rear Panel
Item Description
A
Console port
B
USB port
C
Alarm Connectors
D
(1-22) 10/100/1000Base-T PoE 802.3at ports (ports 1-8 support 60W)
E
(23-24) 100/1000Base-X SFP ports
F
(25-28) 1G/10G SFP+ ports
LEDs
See “Chassis Status LEDs” on page 3-13
Item Description
A
Grounding Lug
B
Power Supply Connectors
D
F
E
A
B
C
A
B
