Chassis and Power Supplies Mounting the Switch
OmniSwitch 6465 Hardware Users Guide December 2019 page 3-15
• Hook the top of the DIN rail clip over the top of the DIN rail.
• Rotate assembly downward until the bottom of the DIN rail clip latch snaps in place under the DIN rail
and release.
DIN Rail Unmounting
1. Pull down on the DIN rail clip latch to release the bottom. If the latch is hard to reach a long screw-
driver or other tool can be used to pull the latch down.
2. Rotate the bottom of the assembly away from the DIN rail and lift the assembly off the DIN rail.

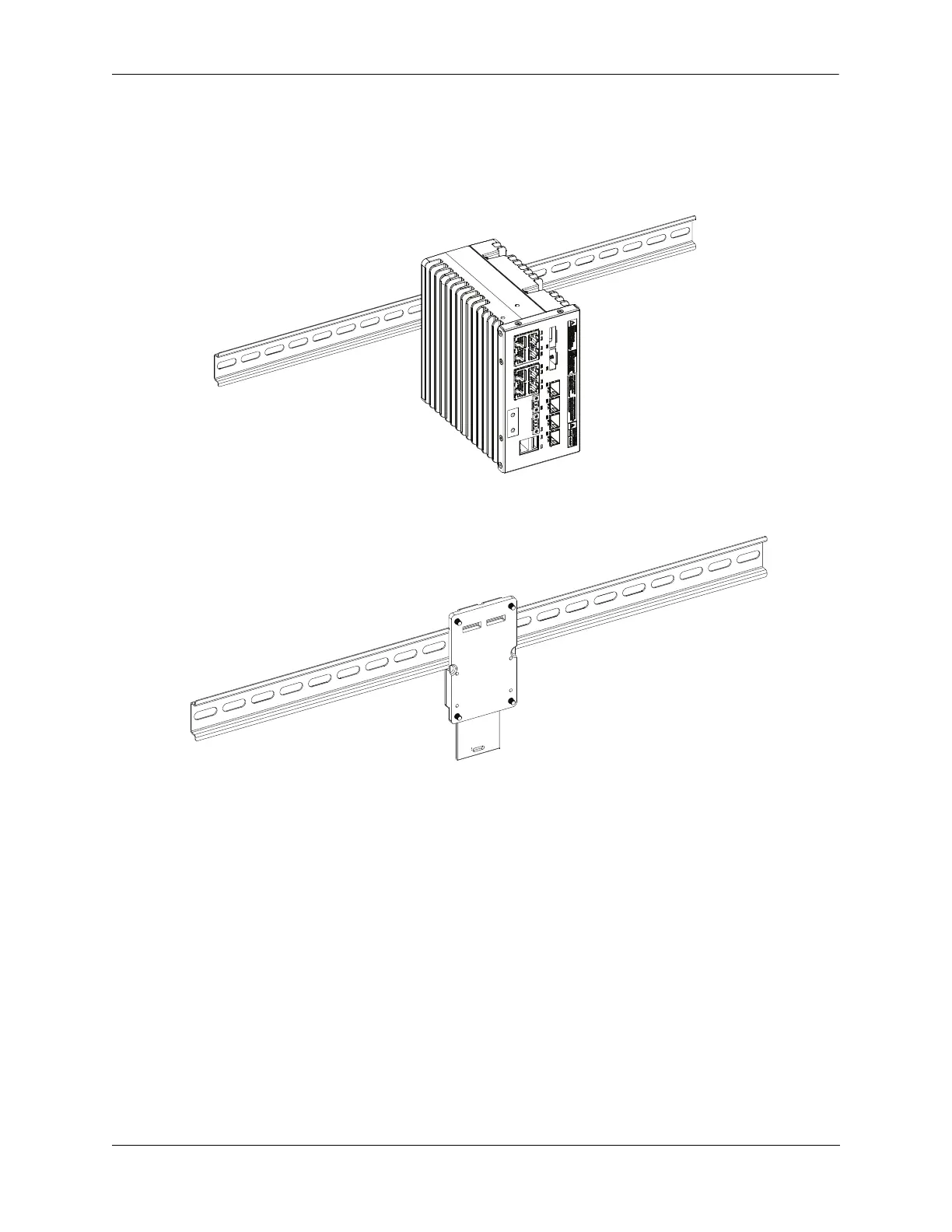

DIN Mounted Chassis
DIN Clip (Chassis Not Shown)
