Mounting the Switch Chassis and Power Supplies
page 3-20 OmniSwitch 6465 Hardware Users Guide December 2019

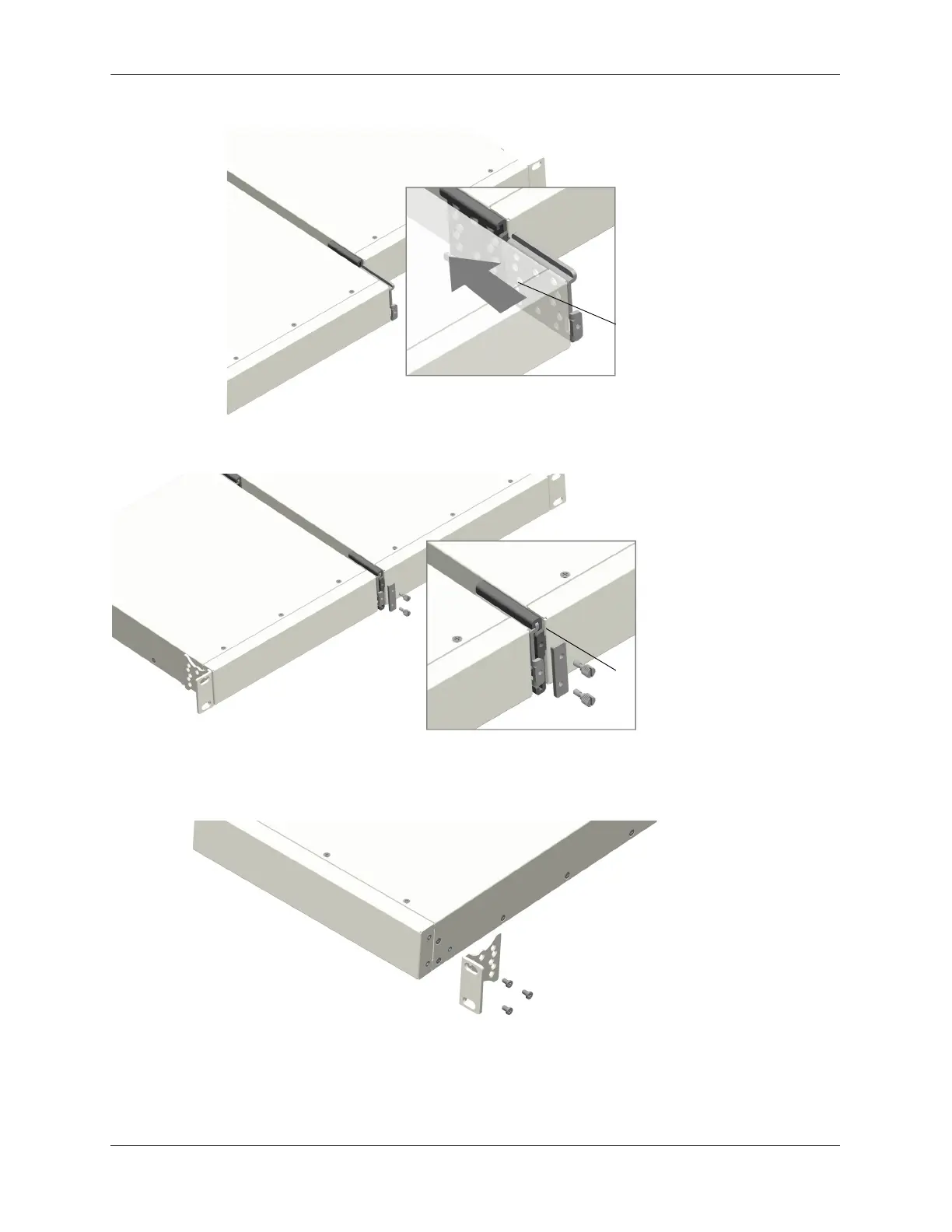

2 Align the chassis and slide both front and rear center brackets together.
Slide Chassis Together
3 Place bracket plate over front and rear brackets and secure with thumb screws.
Secure Front and Back with Bracket Plate
4 Attach rack mount brackets to both sides of the front of the chassis.
Attach Rack Mount Brackets
5 Using one additional person, lift and position the assembly on the rack until the rack-mount flanges are
flush with the rack post.
To Next Page
