Alcatel-Lucent OmniSwitch 6900 - OS6900-T20 Front Panel; OS6900-T20 Rear Panel

OmniSwitch 6900 Chassis Chassis and Power Supplies
page 3-8 OmniSwitch 6900 Hardware Users Guide June 2020

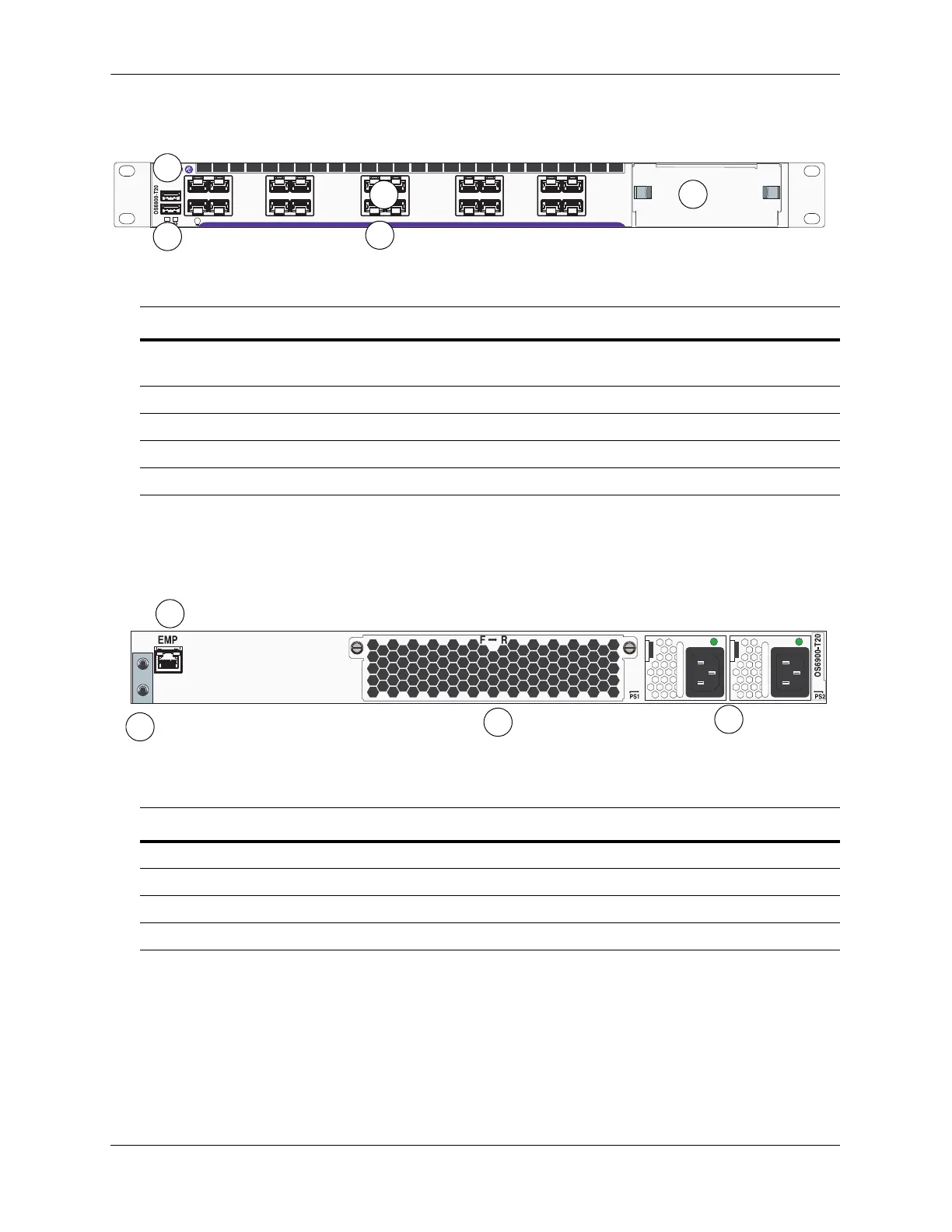

OS6900-T20 Front Panel
OS6900-T20 Rear Panel
Item Description
A
USB Port (For information on using a USB flash drive, refer to the OmniSwitch AOS Release 8
Switch Management Guide.)
B
Console Port
C
Status LEDs
D
20 10GBase-T Ports
E
Expansion Module Slot
Item Description
A
Ethernet Management Port (EMP)
B
Chassis Grounding Lug
C
Fan Tray
D
Power Supply Bays
D
A
B
C
E
A
B
C
D
