Alcatel-Lucent OmniSwitch 6900 - OS6900-T40 Front Panel; OS6900-T40 Rear Panel

Chassis and Power Supplies OmniSwitch 6900 Chassis
OmniSwitch 6900 Hardware Users Guide June 2020 page 3-9

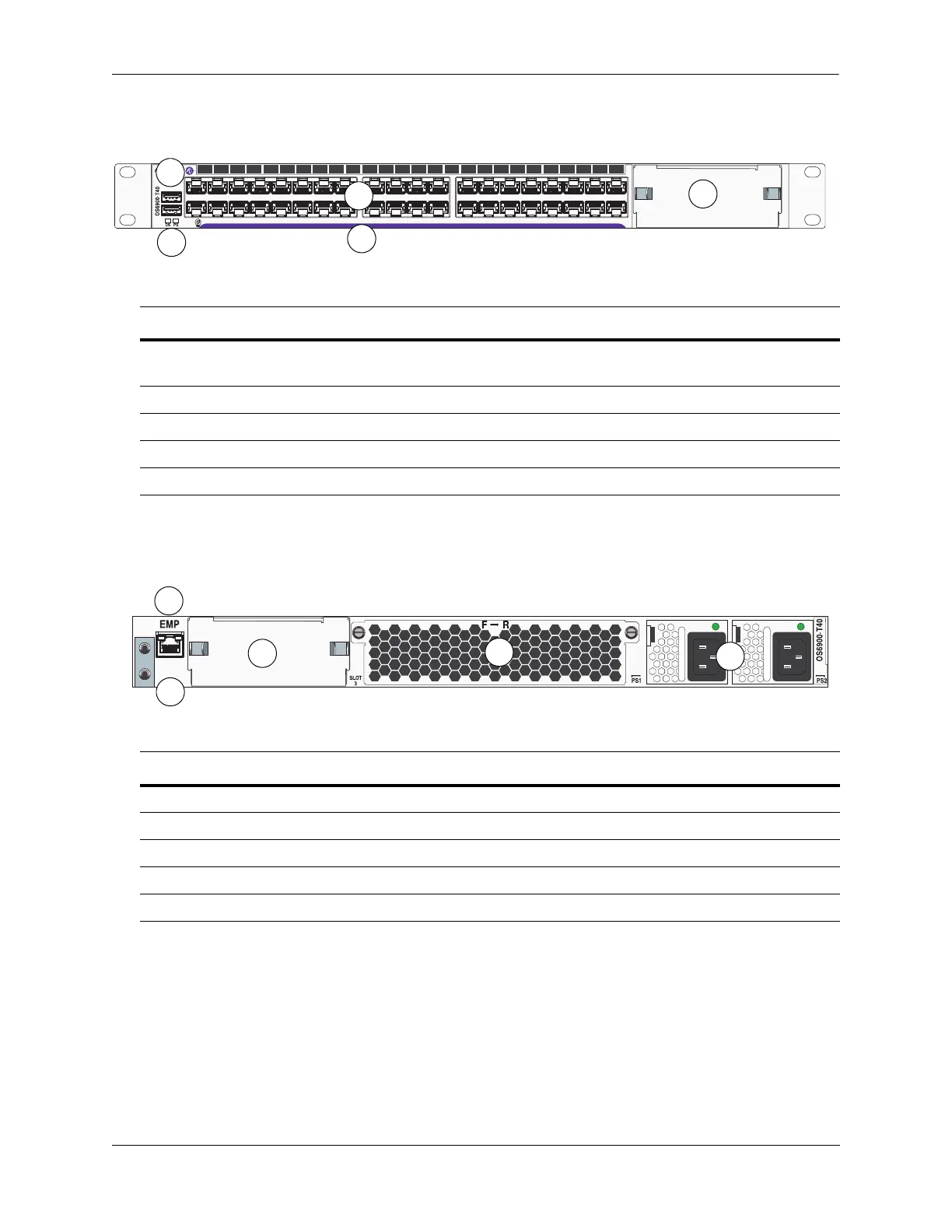

OS6900-T40 Front Panel
OS6900-T40 Rear Panel
Item Description
A
USB Port (For information on using a USB flash drive, refer to the OmniSwitch AOS Release 8
Switch Management Guide.)
B
Console Port
C
Status LEDs
D
40 10GBase-T Ports
E
Expansion Module Slot
Item Description
A
Ethernet Management Port (EMP)
B
Chassis Grounding Lug
C
Expansion Module Slot
D
Fan Tray
E
Power Supply Bays
D
A
B
C
E
A
B
C
D
E
