Alcatel-Lucent OmniSwitch 6900 - OS-XNI-U12 E Expansion Module; Plug-In Module Status LEDs

Chassis and Power Supplies OmniSwitch 6900 Expansion Modules
OmniSwitch 6900 Hardware Users Guide June 2020 page 3-31
OS-XNI-U12E
Note. OS-XNI-U12E modules support 12X10G SFP+ or 12X2G/4G/8G Fibre Channel connections. An
Alcatel-Lucent Data Center License is required for Fibre Channel operation.
Plug-In Module Status LEDs
Item Description

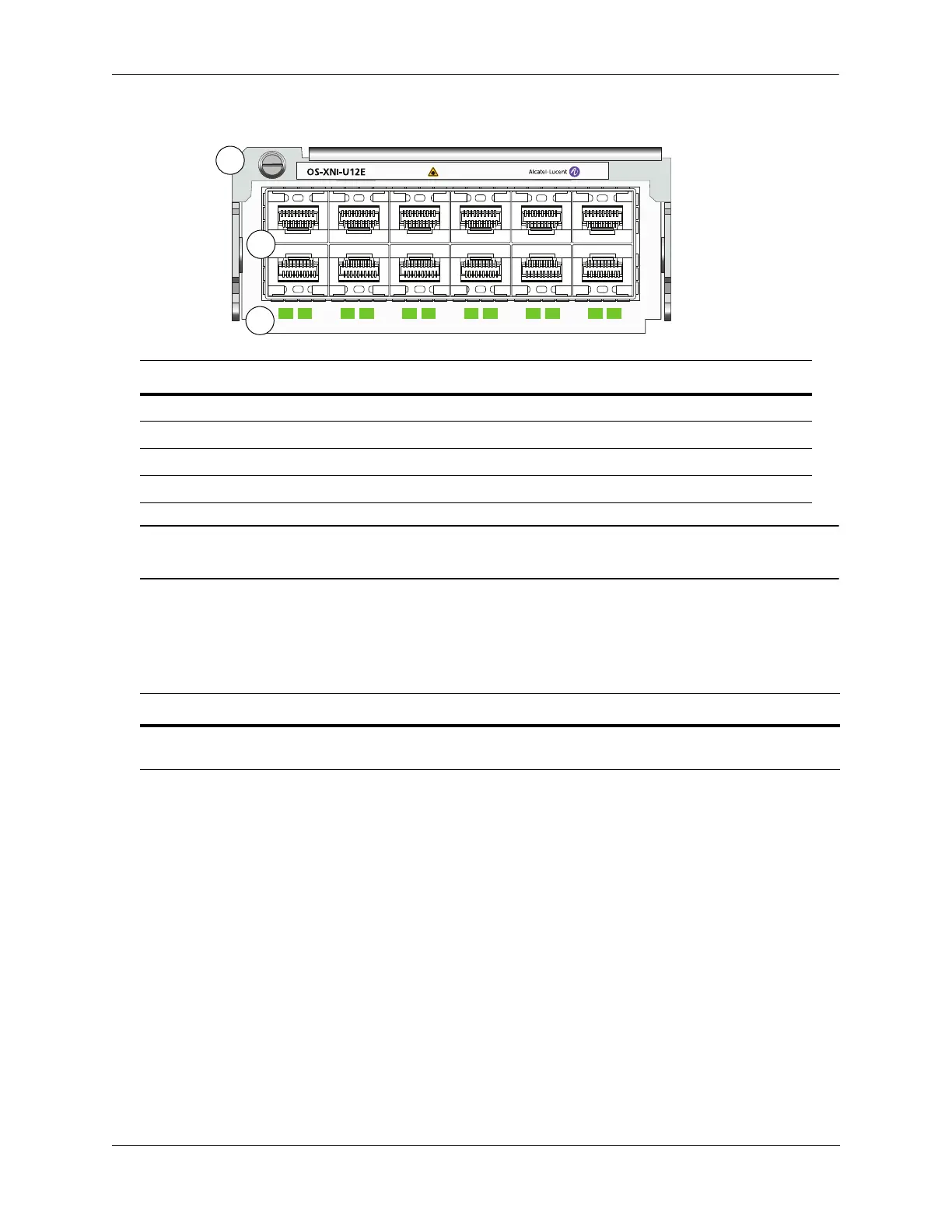

A
Lock Lever and Captive Screw
B
SFP+/FC Ports
C
Status LEDs
Power Consumption 31W (max. power, fully populated)
LED State Description
Port LEDs Solid Green
Blinking Green
Valid Link
Traffic/Activity
1
2
11
12
1211109876543
21
