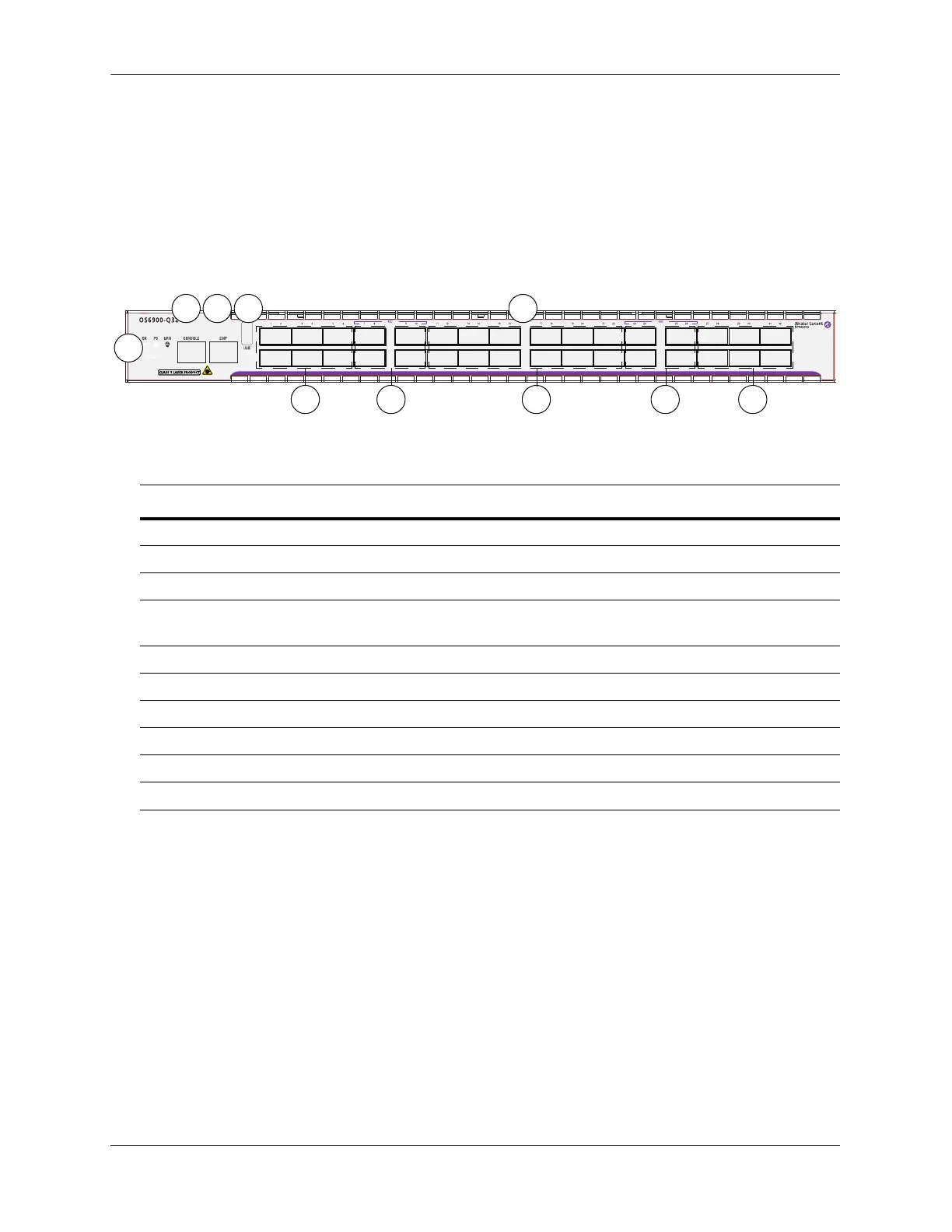

OS6900-Q32 Front Panel
OS6900-Q32: 40Gigabit Ethernet L3 fixed configuration chassis in a 1U form factor with 32 QSFP+ ports.
All QSFP+ ports support 40G while specific ports (ports 1 - 6; 11 - 22 and 27 - 32) may operate as single
40G or 4X10G. (See front panel diagram and table below.)
System software detects when a direct-attach splitter cable is connected and allows each QSFP+ port to be
configured as four (4) 10G SFP+ ports (allowing for a maximum number of 104 physical ports).
*Refer to page 3-26 for detailed information on port LED behavior for OS6900-Q32 switches.
Item Description
A
Status LEDs
B
Console Port (USB Form Factor - RS-232)
C
RJ45 10/100/1000 Ethernet Management Port (EMP)
D
USB Port (For information on using a USB flash drive, refer to the OmniSwitch AOS Release 8
Switch Management Guide.)
E
Port Status LEDs*
F
QSFP+ ports 1 through 6: providing 40G or optional 4X10G splitter cable support
G
QSFP+ ports 7 through 10: providing 40G support only
H
QSFP+ ports 11 through 22: providing 40G or optional 4X10G splitter cable support
I
QSFP+ ports 23 through 26: providing 40G support only
J
QSFP+ ports 27 through 32: providing 40G or optional 4X10G splitter cable support
C
A
B ED
F G H I J
Ports 1 - 6
40G or 4X10G
Ports 7 - 10
40G
Ports 11 - 22
40G or 4X10G
Ports 23 - 26
40G
Ports 27 - 32
40G or 4X10G
