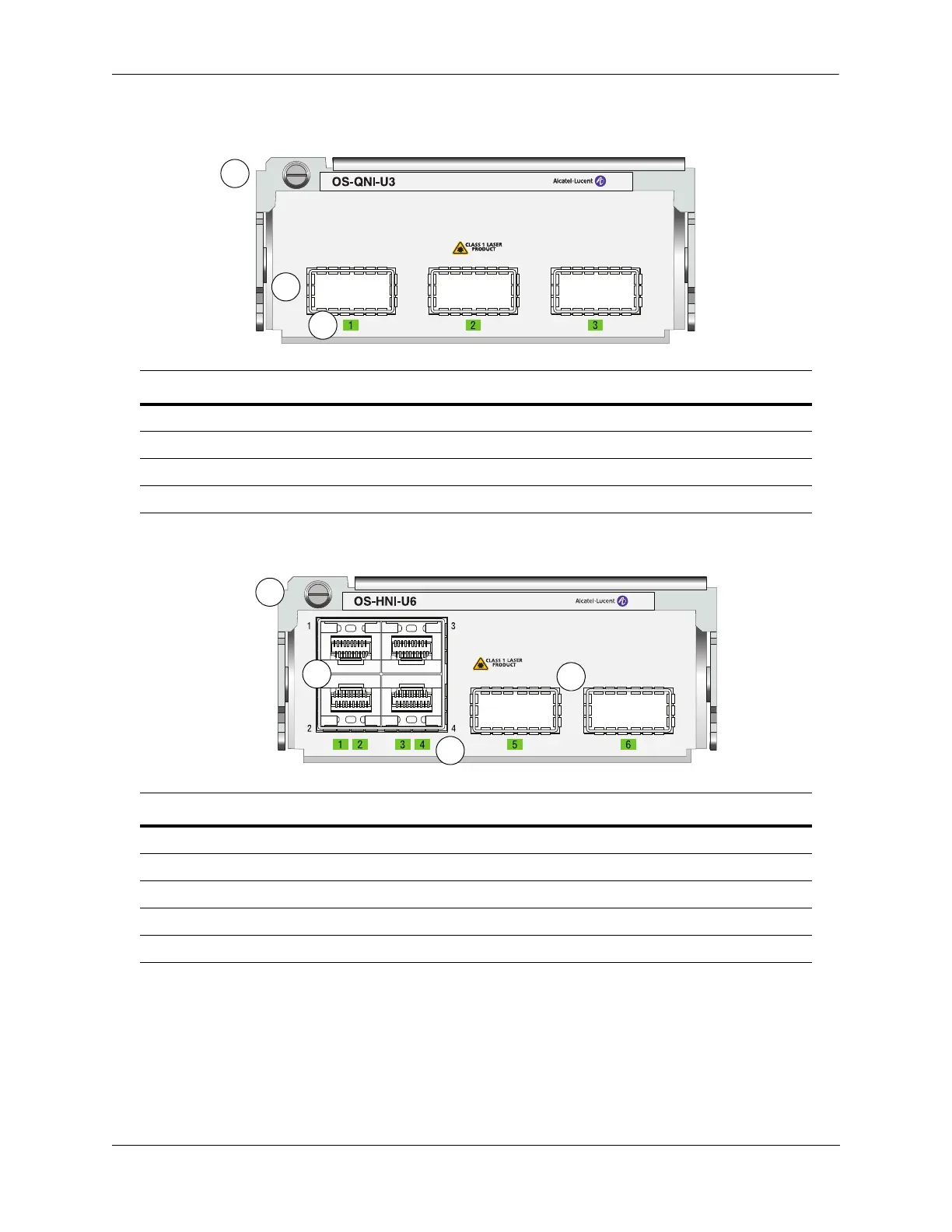

OS-QNI-U3
OS-HNI-U6
CAUTION - TRANSCEIVERS ARE CLASS 1M LASER RADIATION WHEN OPEN. DO NOT VIEW
DIRECTLY WITH OPTICAL INSTRUMENTS.
Item Description
A
Lock Lever and Captive Screw
B
QSFP+ Ports
C
Status LEDs
Power Consumption 34W (fully populated)
Item Description
A
Lock Lever and Captive Screw
B
SFP+ Ports
C
Status LEDs
D
QSFP+ Ports
Power Consumption 37W (fully populated)
