Mini Power Post™ Monitoring System - USER GUIDE
Basic System Functions
System Power, Menu, and Event Displays
SYSTEM ON AND PUMP OFF
When the system is powered and the pump is off under normal
operating conditions, the green LEDs will illuminate inside the top
cover of the enclosure to indicate there is power to the system.
When the system is idle and there has been no activity or key
pressed for approximately 70 seconds, the OLED display screen
will be blank.
CAUTION:
Before proceeding with the operation of this
product, Alderon™ recommends changing factory settings to
customize the system per application for desired operation. See
page 21 for complete system settings information.
The Mini Power Post™ Monitoring System includes visual indication provided by the various color LEDs that illuminate inside
the top cover of the enclosure along with displayed text on the OLED screen. This section outlines the basic system functions
for: system power, menu access, pump run event, pump alarm events, auxiliary alarm events, and data log center information.
For remote notification of a high level or filter alarm event, a Versa’larm™ indoor alarm panel must be used with the system.
WAKE SYSTEM
To wake the OLED display screen, press any arrow key (up, down, left, or right) on the menu keypad and SYSTEM NORMAL
will appear (Figure 1). Turn off the green power on LEDs in the settings menu, see page 21 for detailed information.
SYSTEM MENU
To access the system menu, press MENU on the menu keypad and RESETBLE HISTORY will appear (Figure 2). Pressing the
MENU button from a blank screen will also access the main menu. To view the list of menu screens and system settings, see
pages 19-22 for detailed information.

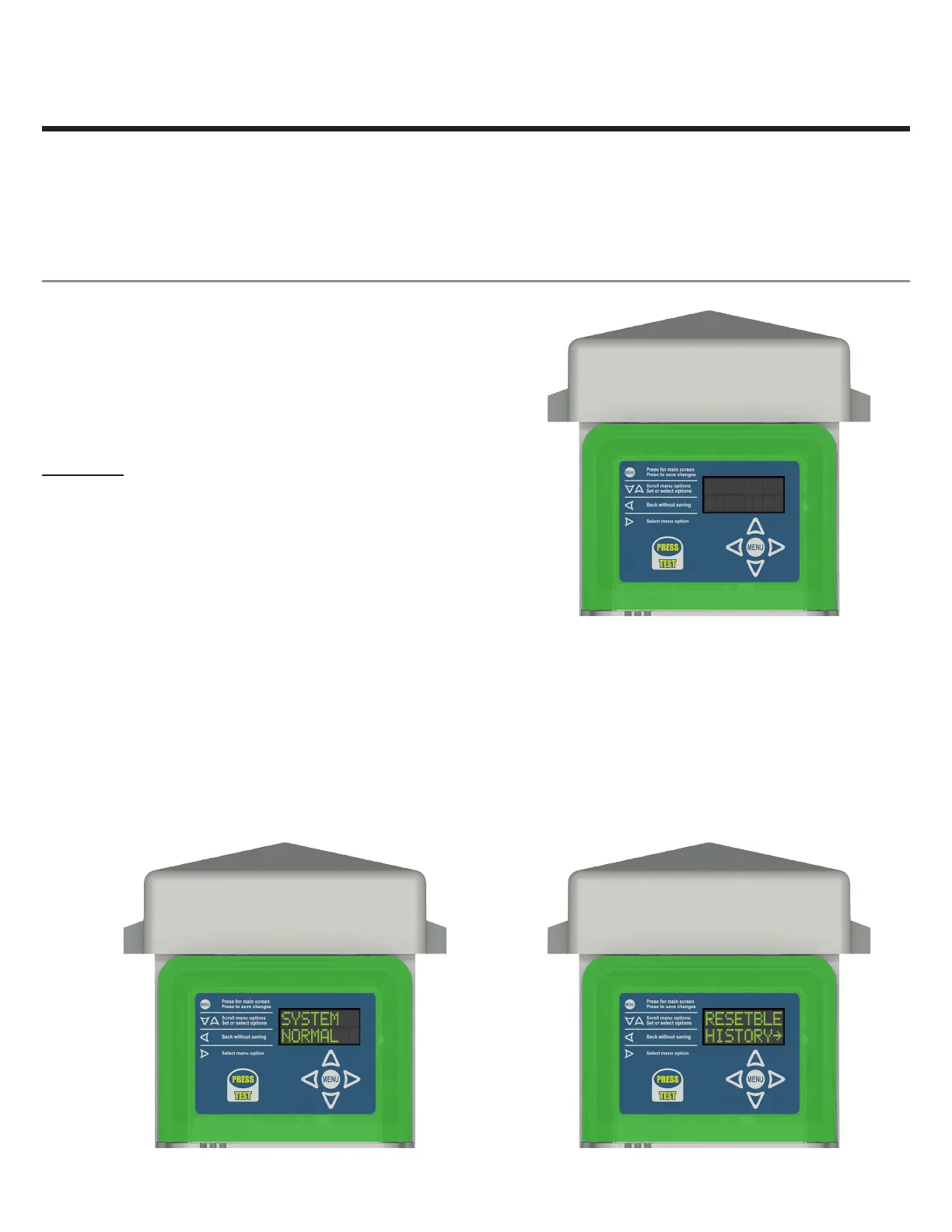

(Fig. 1) (Fig. 2)
To Next Page
