18 | Alderon Industries™ - Leading Edge Control Products
Mini Power Post™ Monitoring System - USER GUIDE

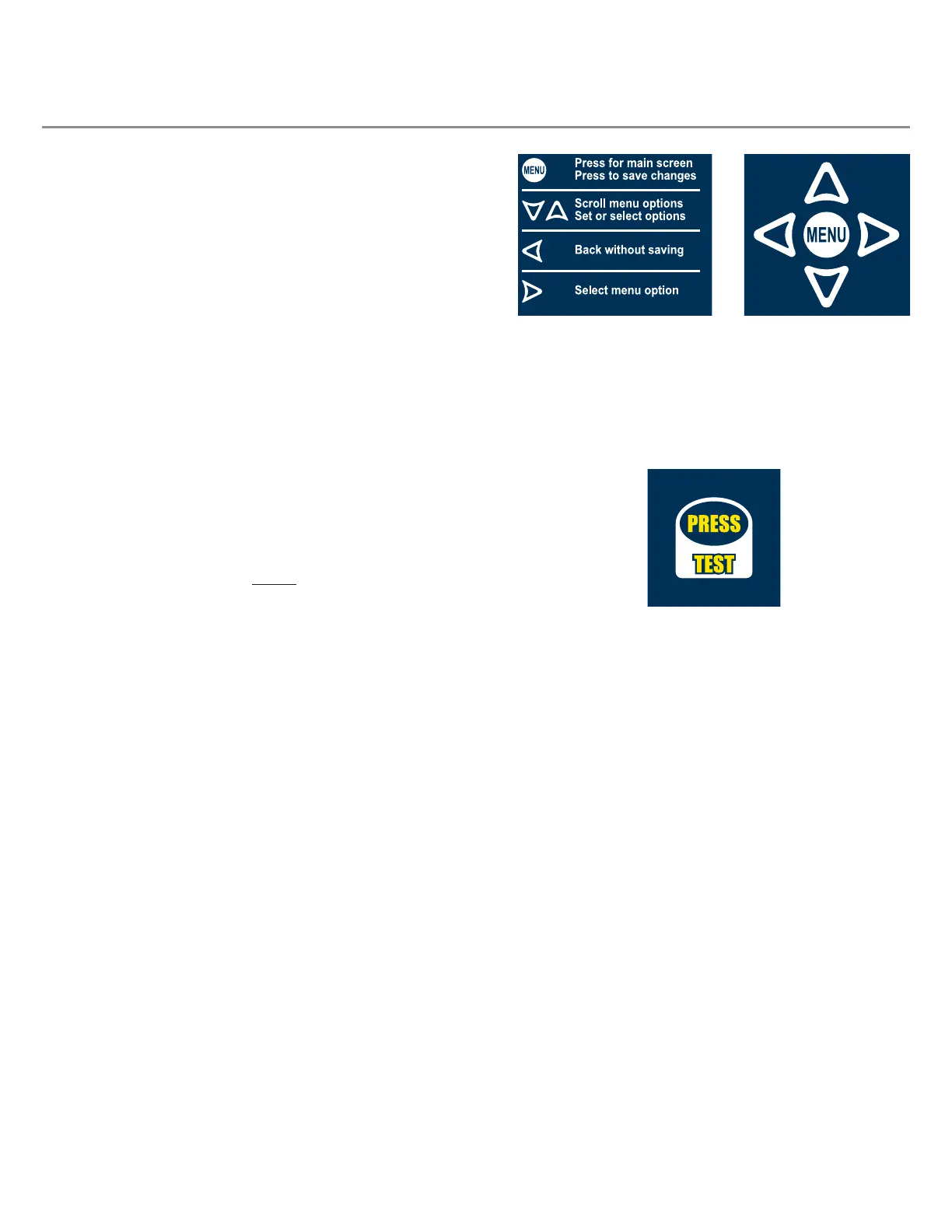

Product Label Examples
MENU LEGEND and KEYPAD
The menu legend and keypad are located on the product label,
see the examples to the right and detailed text version below.
1) Press the MENU button to access the main menu screen,
accept settings questions, or save changes.
2) Press the DOWN or UP arrows to scroll through the list of
menu options and to set or select system options.
3) Press the LEFT arrow to go back without saving from any
menu or settings option screen.
4) Press the RIGHT arrow to select menu options or to enter
the next value in the settings option screens.
TEST PUSHBUTTON
The test pushbutton is used for quick access to lifetime pump
run event counter statistic, test the alarm LEDs, or exit the menu
system.
1) Perform a system test weekly by pressing the PRESS
pushbutton, the system MUST be in a system normal or
idle state (solid green LEDs). The lifetime pump run event
counter statistic should display until the button is released,
or for two seconds, whichever is greater. Then, the alarm
LEDs should illuminate for two seconds each while cycling
between red, green, blue, and off. The OLED screen
should display a TESTING (COLOR) event to match the
respective LEDs after the event statistic is displayed.
2) Pressing the PRESS pushbutton after the system test has
started will restart the test sequence from the beginning at
the lifetime pump run event counter statistic.
Note: When activated, system test will exit the menu system
without saving and disable the menu system. Any events that
are active while system test starts will not be shown, but will be
tracked normally. Any newly activated event will deactivate the
system test event.
