Alderon Industries™ - Leading Edge Control Products | 21
Mini Power Post™ Monitoring System - USER GUIDE
Menu System (continued)

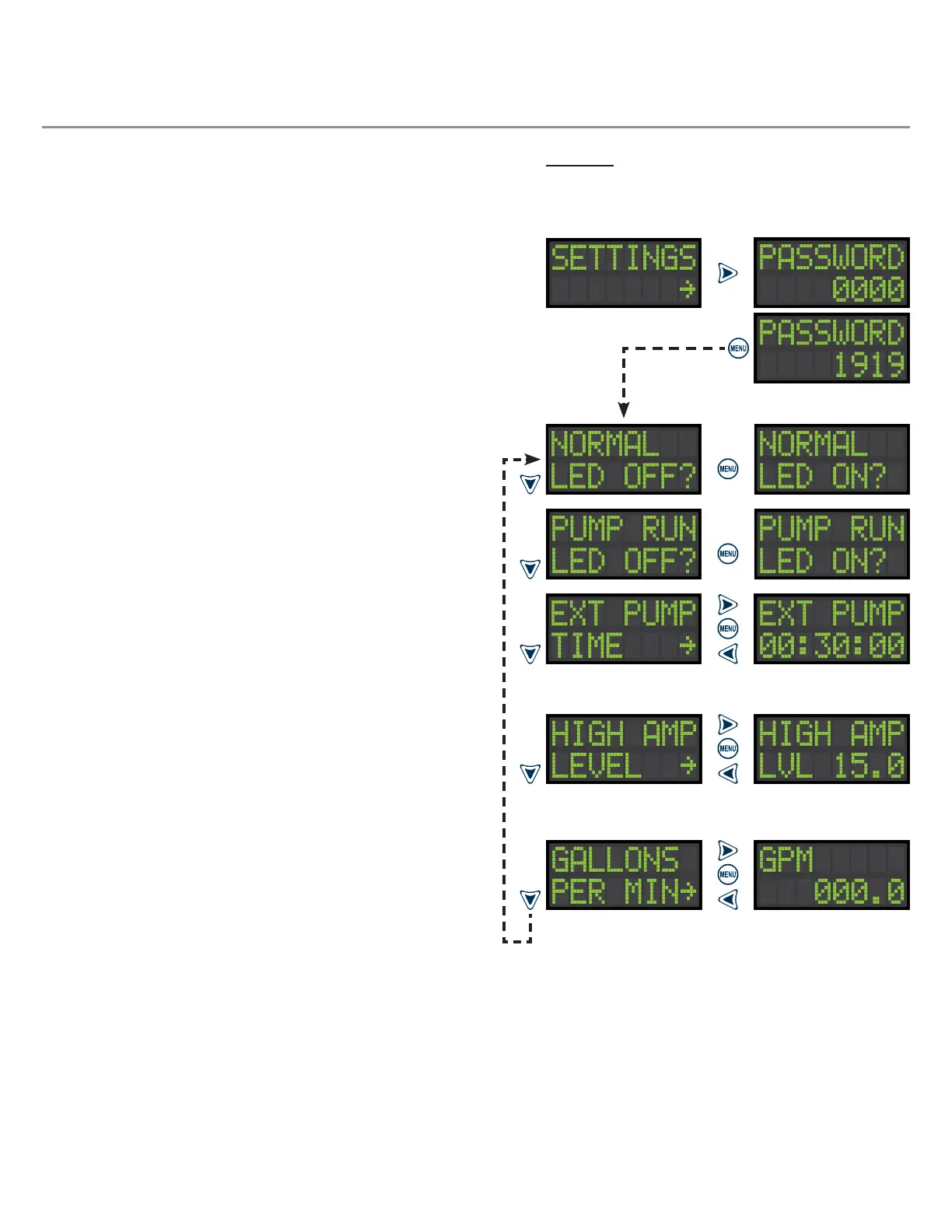

2.0 | MAIN MENU - Settings
From the SETTINGS screen, press right arrow key to access
the menu for system options which can be programmed, follow
the steps below for each setting within this menu.
2.1 Password (factory set to 1919)
i. Password 0000 will appear on the screen
ii. Up or down arrow, increase/decrease selected digit
iii. Right arrow, moves cursor to the right (blinking)
iv. Press MENU to accept password
v. Left arrow, exit without entering
vi. Incorrect entry will exit user to the settings menu
Note: To change the password, use the up or down arrows until the
password screen reappears, then enter numeric values between
0000-9999 and press MENU to save.
2.2 Normal LED Setting (factory set to LED On)
i. Normally LED Off?, press MENU to turn LED off
ii. Normally LED On?, press MENU to turn LED on
2.3 Pump Run LED Setting (factory set to LED On)
i. Pump Run LED Off?, press MENU to turn LED off
ii. Pump Run LED On?, press MENU to turn LED on
2.4 Extended Pump Run Time Setting (factory set to 30 min)
i. The current setting will appear on the screen
ii. Up or down arrow, increase/decrease selected digit
iii. Right arrow, moves cursor to the right (blinking)
iv. Press MENU to save changes
v. Left arrow, exit without entering
2.5 High Amp Level Setting (factory set to 15 Amps)
i. The current setting will appear on the screen
ii. Up or down arrow, increase/decrease selected digit
iii. Right arrow, moves cursor to the right (blinking)
iv. Press MENU to save changes
v. Left arrow, exit without entering
2.6 Gallons Per Minute Setting (factory set to Zero)
i. The current setting will appear on the screen
ii. Up or down arrow, increase/decrease selected digit
iii. Right arrow, moves cursor to the right (blinking)
iv. Press MENU to save changes
v. Left arrow, exit without entering
Note: The down arrow key will cycle through all the settings menu options until a specic option is selected using the right arrow key or question
mark as displayed on the screen. When a setting is changed, SETTINGS Saved will appear on the screen. Press the left arrow key to exit from any
screen.
Press the test pushbutton to exit the menu system.
OR
OR
CAUTION:
Before proceeding with the operation of this product,
Alderon™ recommends changing factory settings to customize
the system per application for desired operation.
