14 | Alderon Industries™ - Leading Edge Control Products
Mini Power Post™ Monitoring System - USER GUIDE
Pump Alarms
EXTENDED PUMP RUN ALARM
An extended pump run alarm event will occur when the pump
has run continuously for longer than the congured amount of
time, factory set to 30 minutes.

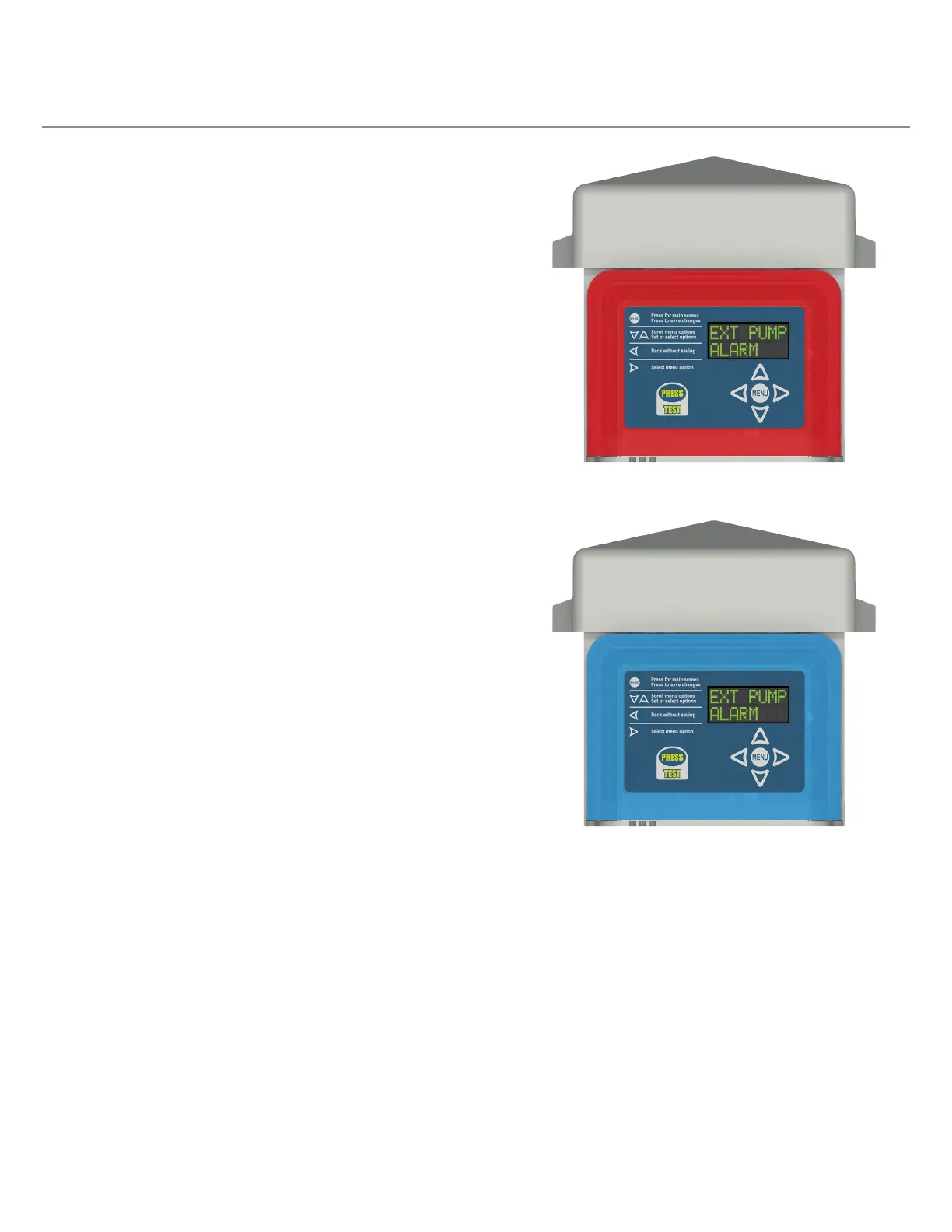

The red and blue LEDs will illuminate inside the top cover of
the enclosure and alternate every second. The OLED screen
will display an EXT PUMP ALARM event. The alarm condition
will clear once the system no longer detects an extended pump
run event.
Use the menu keypad to access the extended pump run alarm
information below while the pump is running or when the system
is idle. See pages 21, 24, and 28 for detailed information and
display screens.
▪ Extended Pump Run Event Counter - Records each
extended pump run event.
▪ Extended Pump Run Elapsed Time - Records the total
run time of each extended pump run event including: last,
average, maximum, and minimum of the last 10 extended
pump run cycles.
▪ Extended Pump Run Amp Detection - Records the
amps each time an extended pump run event occurs
including: last, average, maximum, and minimum of the
last 10 pump cycles.
▪ Extended Pump Run Setting - Use the menu keypad
to change the factory setting of 30 minutes. See page 21
for detailed information.
▪ Extended Gallons Per Minute (GPM) Setting - Factory
set to zero, use the menu keypad to change the setting.
If the GPM is set to zero, the total gallons pumped stats
will not be displayed on the OLED screen.
▪ All Data Stored in Two Formats
i. Resettable; Reset all data to zero.
ii. Non-Resettable; All lifetime data is stored.
‹ ‹ ‹ Alternating LEDs › › ›
