Mini Power Post™ Monitoring System - USER GUIDE
Installing Post (continued)

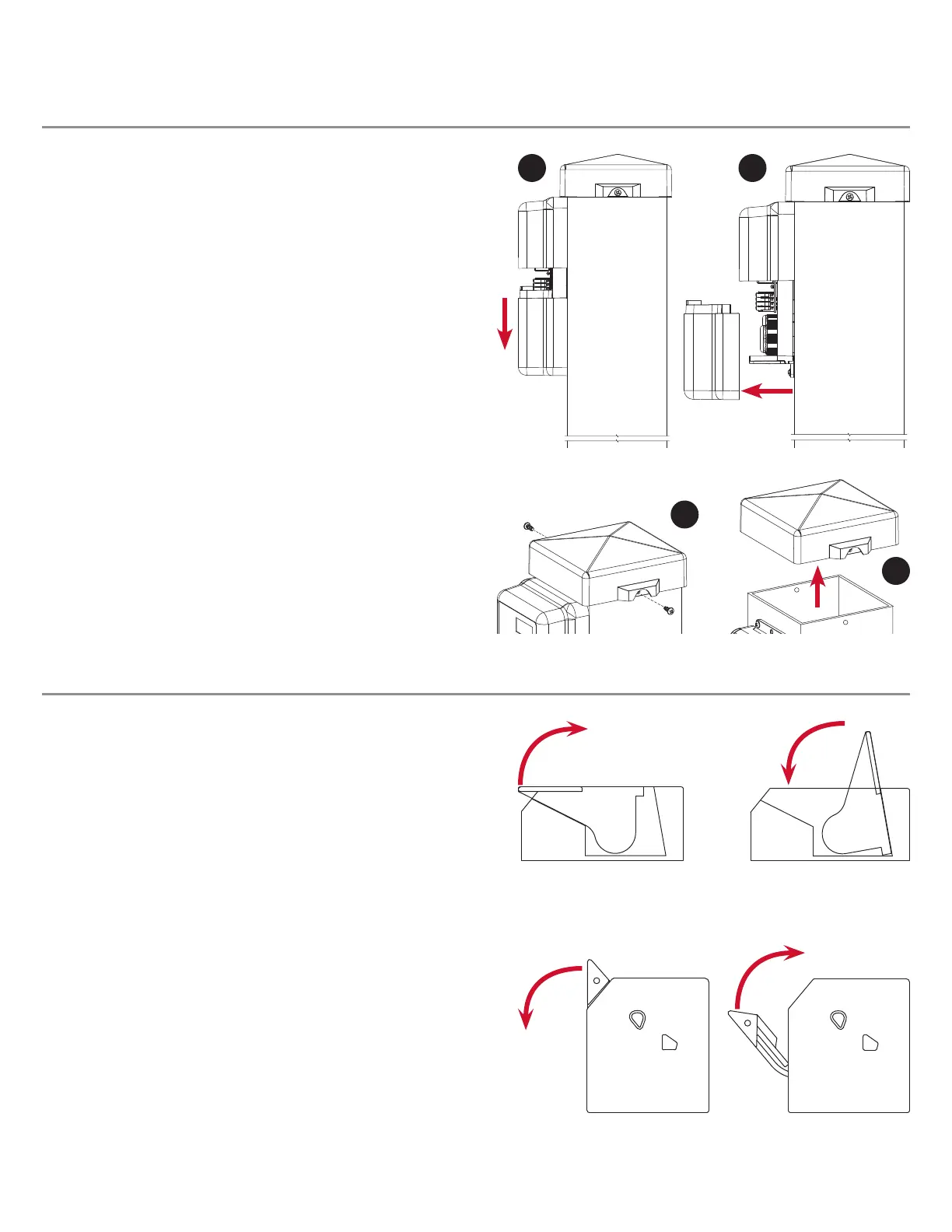

STEP 3: REMOVE BOTTOM COVER
The bottom enclosure cover is fastened by a single screw on
the bottom of the enclosure. Remove the screw and slide the
cover directly downward until sound chamber is cleared (3A)
and pull directly away from the enclosure (3B).
Wiring
INSTALLING WIRE INTO WAGO CONNECTORS
Before making wire connections and terminations, carefully
read this section for proper functions of both types of WAGO
connectors used with this product.
WARNING: Improper use of the connectors will cause damage
to components. DO NOT use mechanical tools to open or close,
hand usage only for proper installation and component integrity.
Wire Termination - Splice Connector WAGO (Figure 1):
1) Lift tab(s) upward.
2) Insert wire(s) into slot.
3) Press tab(s) downward.
4) Make sure wire(s) are secured.
Wire Connection - Quick Snap Terminal WAGO (Figure 2):
1) Press tab(s) outward. DO NOT open past a 40° angle to
avoid risk of breaking the tab(s).
2) Insert wire(s) into slot.
3) Press tab(s) inward.
4) Make sure wire(s) are secured.
TO OPEN
WAGO
TO CLOSE
WAGO
(Fig. 1)
3B3A
(Fig. 2)
TO OPEN
WAGO
TO CLOSE
WAGO
STEP 4: REMOVE POST CAP
Unscrew the fasteners on the left and right of the post cap
(4A) and pull directly upwards (4B). Keep the post cap off until
installation and testing are completed for wiring access.
4A
4B
To Next Page
