LDO chip on the core board to meet the requirements of users with different
level interfaces. For users who need a lot of IOs, this core board will be a good
choice. Moreover, the IOs connection part, the routing between the ZYNQ
FPGA chip and the interface is equal length and differential processing. The
core board size is only 2.36 inch* 2.36 inch, which is very suitable for
secondary development.

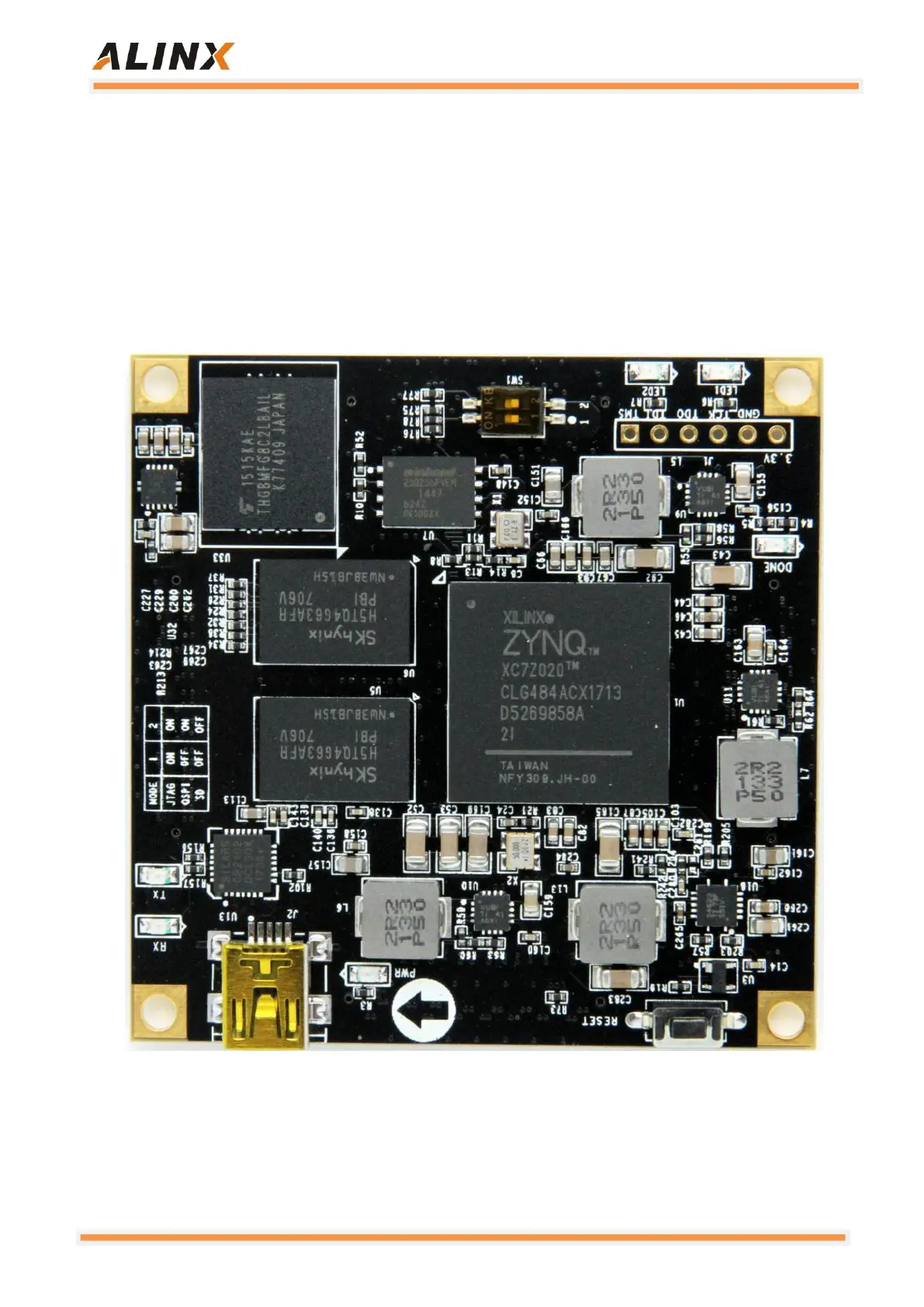

Figure 2-2-1: AC7021Core board Front View
