Electronic Door Fittings of the PegaSys Series 13

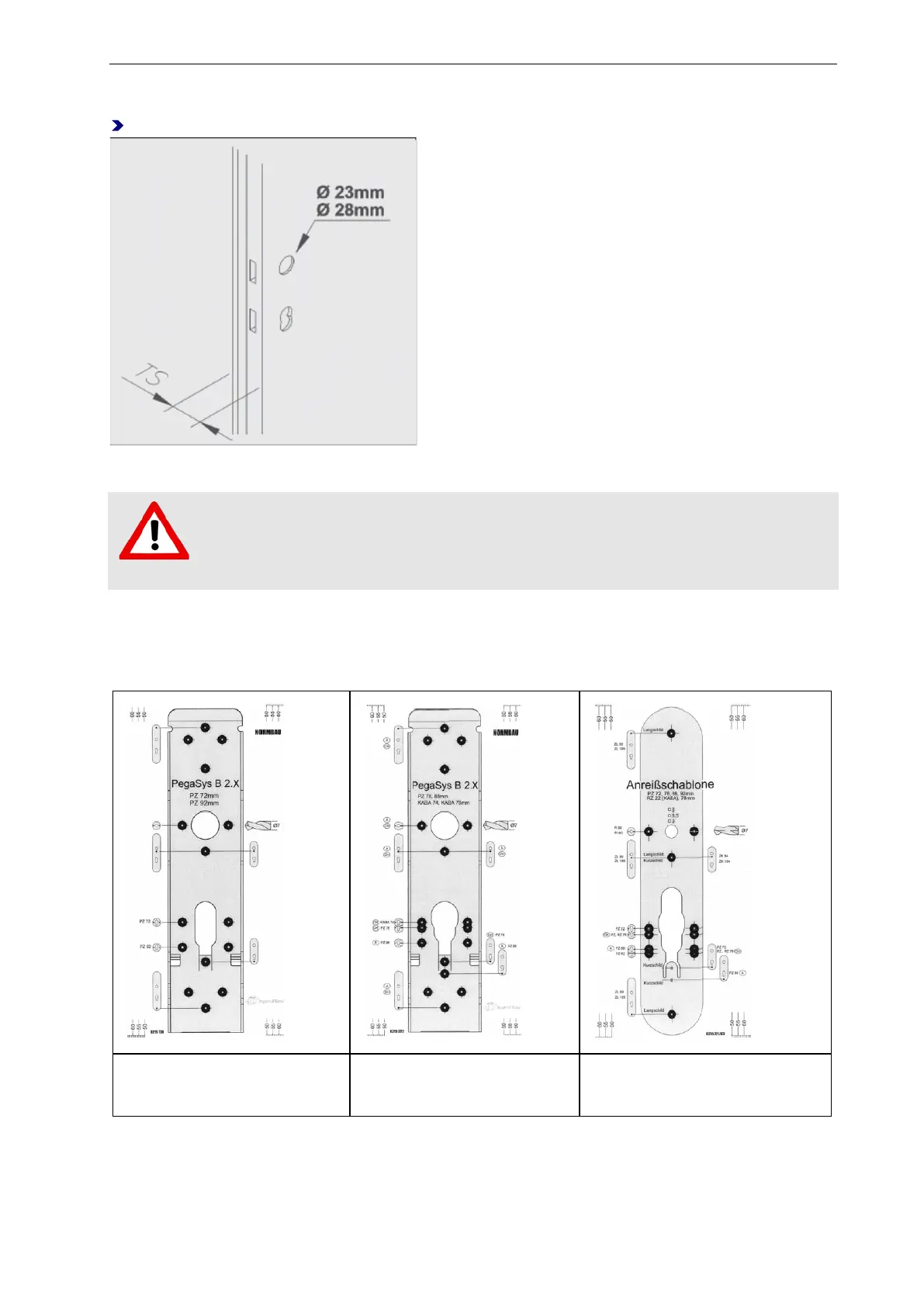

Preparations for installation: Drilled hole in door
Check the door hole with a caliper or gauge.
Recommendation: The diameter should be min. 28 mm.
A diameter of 28 mm is required for screw-on mounting on doors with tubular frames, as well
as for exterior fittings without a key hole.
Min. diameter: 23 mm
Scribing templates
The following scribing templates are included in the scope of delivery:
PegaSys B 2.x
PZ 72 mm
PZ 92 mm
PegaSys B 2.x
PZ 78, 88 mm
KABA 74, 78 mm
Long plate: Germany
PZ 72, 78, 88, 92 mm
RZ 22 (KABA), 78 mm
