Chapter 2
Installation/Wiring
2–24

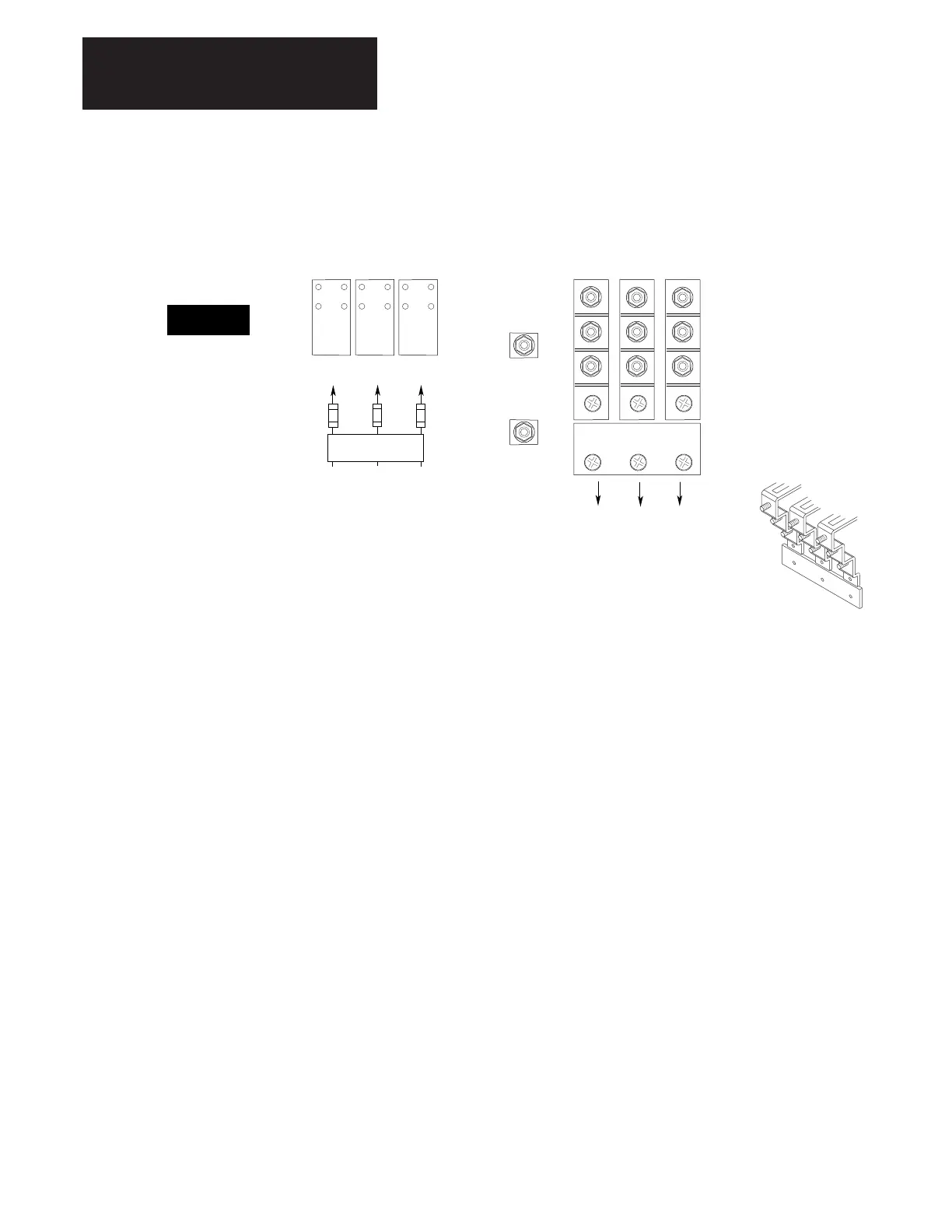

Figure 2.10. cont.
Terminal Block TB1
DC +
Brake
R
(L1)
S
(L2)
T
(L3)
380-480V, 522-597 kW (700-800 HP) Terminal Designations
500-600V, 522-597 kW (700-800 HP) Terminal Designations
To Motor
DC –
Brake
Required
Input Fusing
1
AC Input Line
(located at bottom of drive)
W
(M3)
U
(M1)
V
(M2)
W
U
V
H
Frame
1
Required Branch
Circuit Disconnect
1
User supplied.
