110 Rockwell Automation Publication 1444-UM001D-EN-P - June 2018

Chapter 3 Configure the 1444 Dynamic Measurement Module

Port Configuration Page

Use the Port Configuration page to enable and configure module ports.

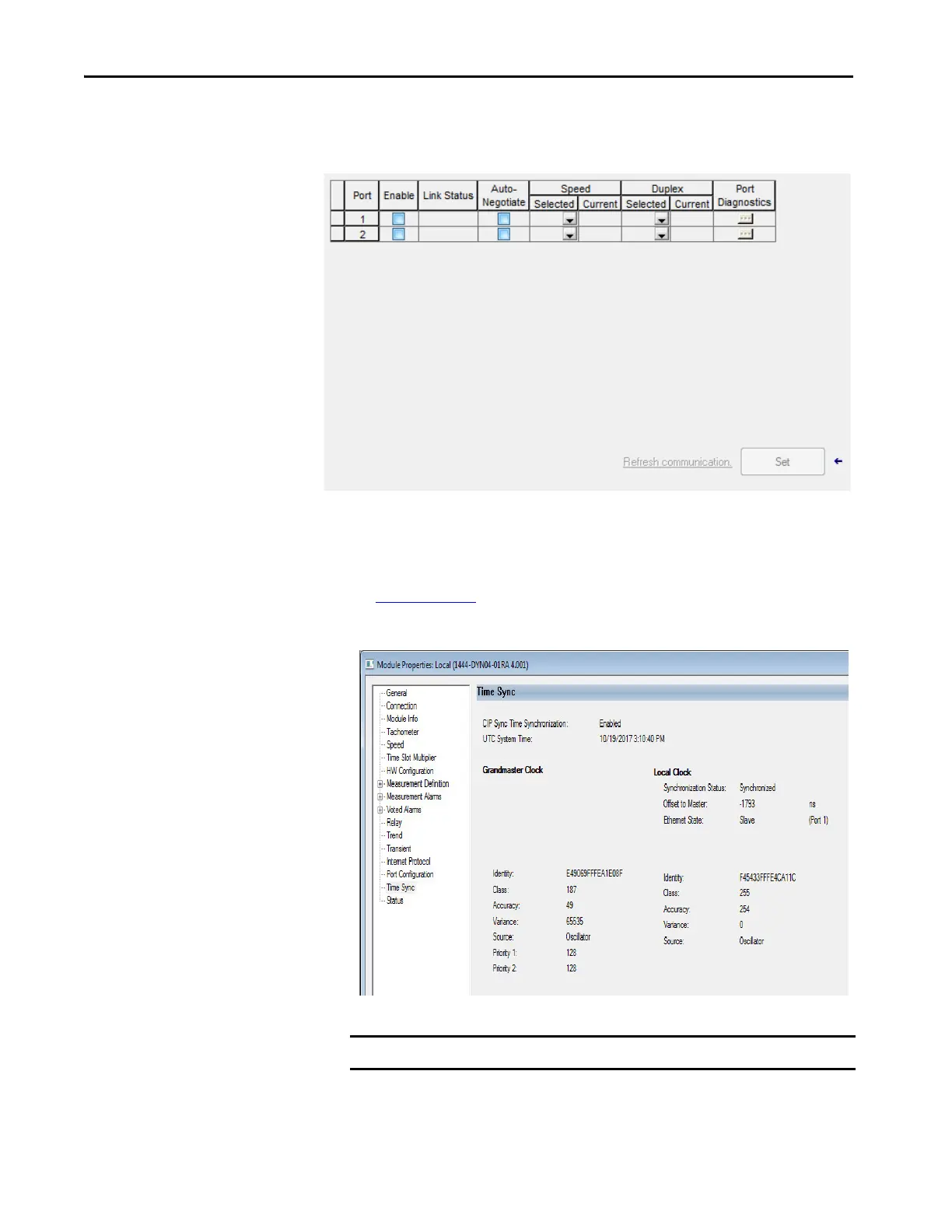

Figure 48 - The Port Configuration Page

See the online help for the parameter Port Configuration values.

Time Sync Page

See ENET-UM001 for more information.

Figure 49 - The Time Sync Page

IMPORTANT The module must be ONLINE for the Time Sync page to update.
