Configure Alarms Chapter 8
Measurement Alarms Page
Page Overview

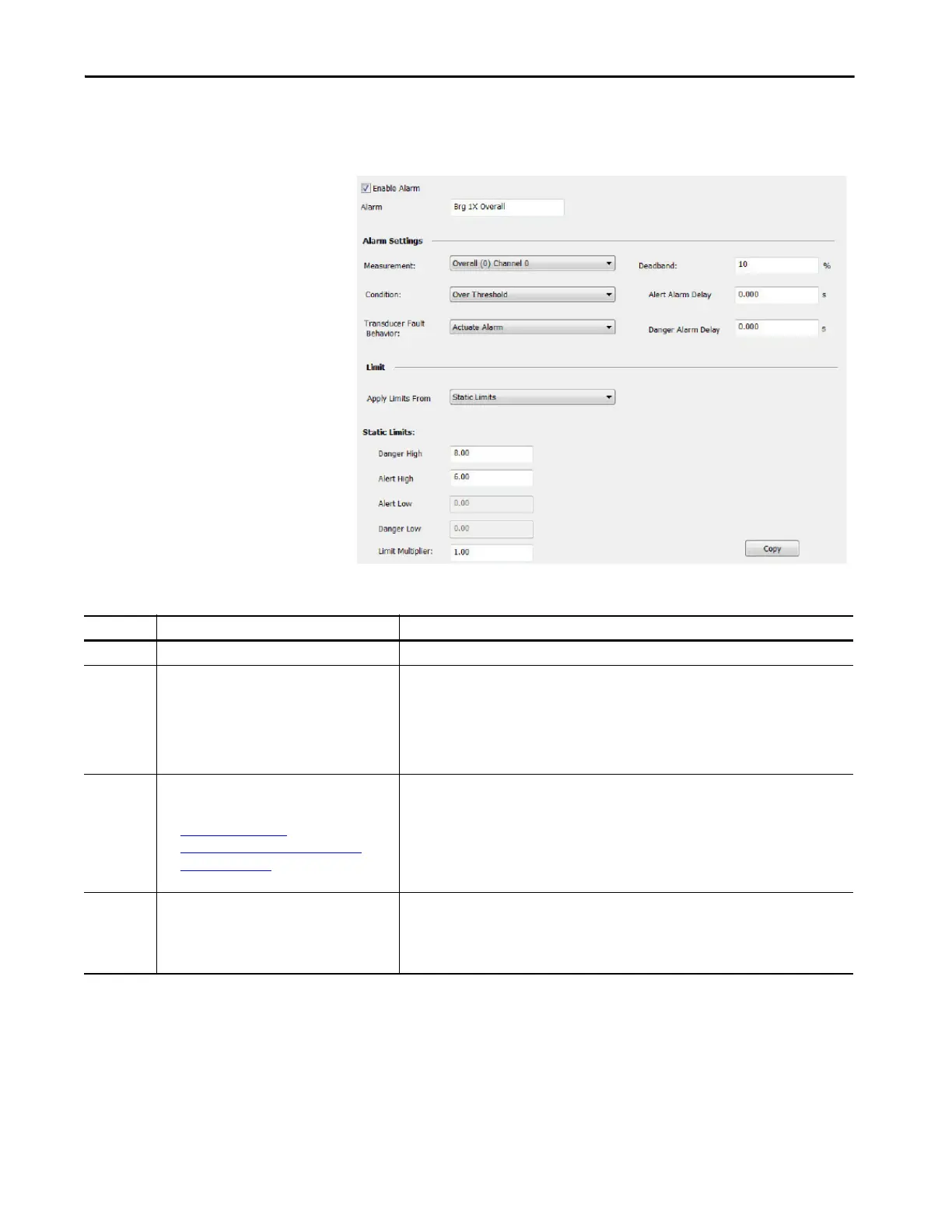

The following overview describes the dynamic measurement module.
Table 45 - Alarms
Parameter Values Help
Enable Alarm Checked (1) / Unchecked (0) Check to enable the alarm.
Alarm Name Characters Enter a name of up to 32 characters. There are no rules for the name content or uniqueness. However,
the name is used when you select Measurement Alarms as input to other functions, such as Voted Alarm
definition, so unique names are recommended. Additionally the name:
• Must start with a letter or underscore (“_”).
• Must consist of letters, numbers, or underscores.
• Cannot contain two contiguous underscore characters.
• Cannot end in an underscore.
Measurement Available selections are dependent on the Channel
Type and the Channel Measurement Type for the
channel that is associated with each measurement.
See General
Page on page 97.
See Hardware Configuration Page on page 111.
See Table 46 on page 218
to view all available
settings.
Select the measurement for the selected Measurement Alarm to evaluate.
Condition Select from:
•Greater Than
•Less Than
• Inside Range
•Outside Range
Select the desired condition.
