214 Rockwell Automation Publication 1444-UM001D-EN-P - June 2018

Chapter 8 Configure Alarms

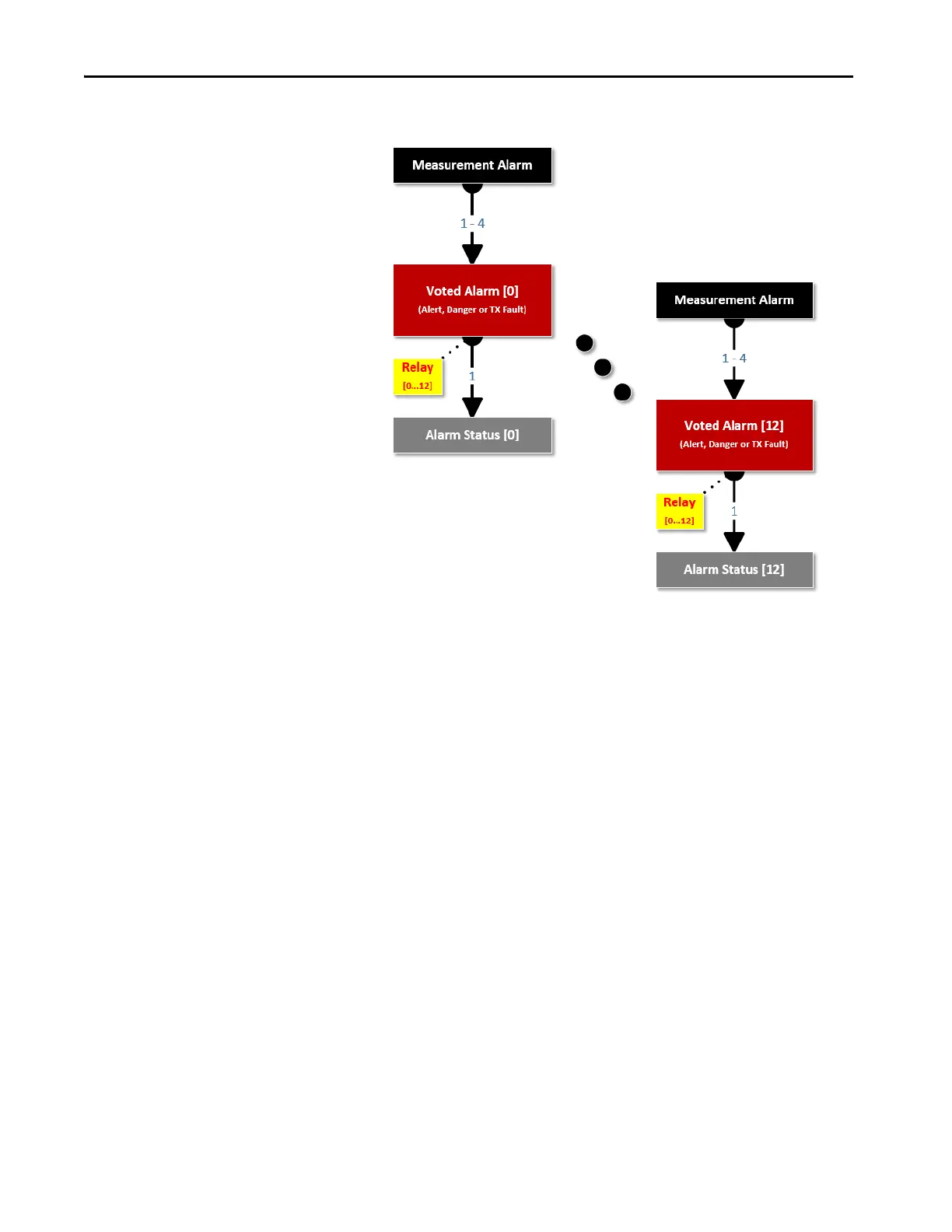

Figure 86 - Alarm Status Static Alignment

Static alignment assigns Voted Alarm N to Alarm Status N. So the status of

Voted Alarm 4 is in Alarm Status 4, Voted Alarm 7 is in Alarm Status 7, and so

on. A Voted Alarm can have only one output. Any relay, 0 … 12, can reference

any Voted Alarm.
