66 Rockwell Automation Publication 1444-UM001D-EN-P - June 2018
Chapter 2 Install the Dynamix 1444 Series Monitoring System
Tacho Inputs
The DYN module includes two local tacho inputs, 0 and 1.
These inputs are not isolated from other module circuitry; the signal input has
a resistive pull-up to 5V and the return connection is analog ground/return.
These local inputs are designed for when one of the following is available:
•a TTL level tacho signal
a tacho sensor with an open collector output (such as NPN type)
a connection to an Opto output on another Dynamix module
the TTL output from an XM-220 Dual Speed module (1440-SPD02-
01RB)
In most situations, the preferred method of providing tacho signals to the
module is through the TSC Expansion module.
DYN Module Transducers
Proximity Probes
The following are examples of proximity probes.

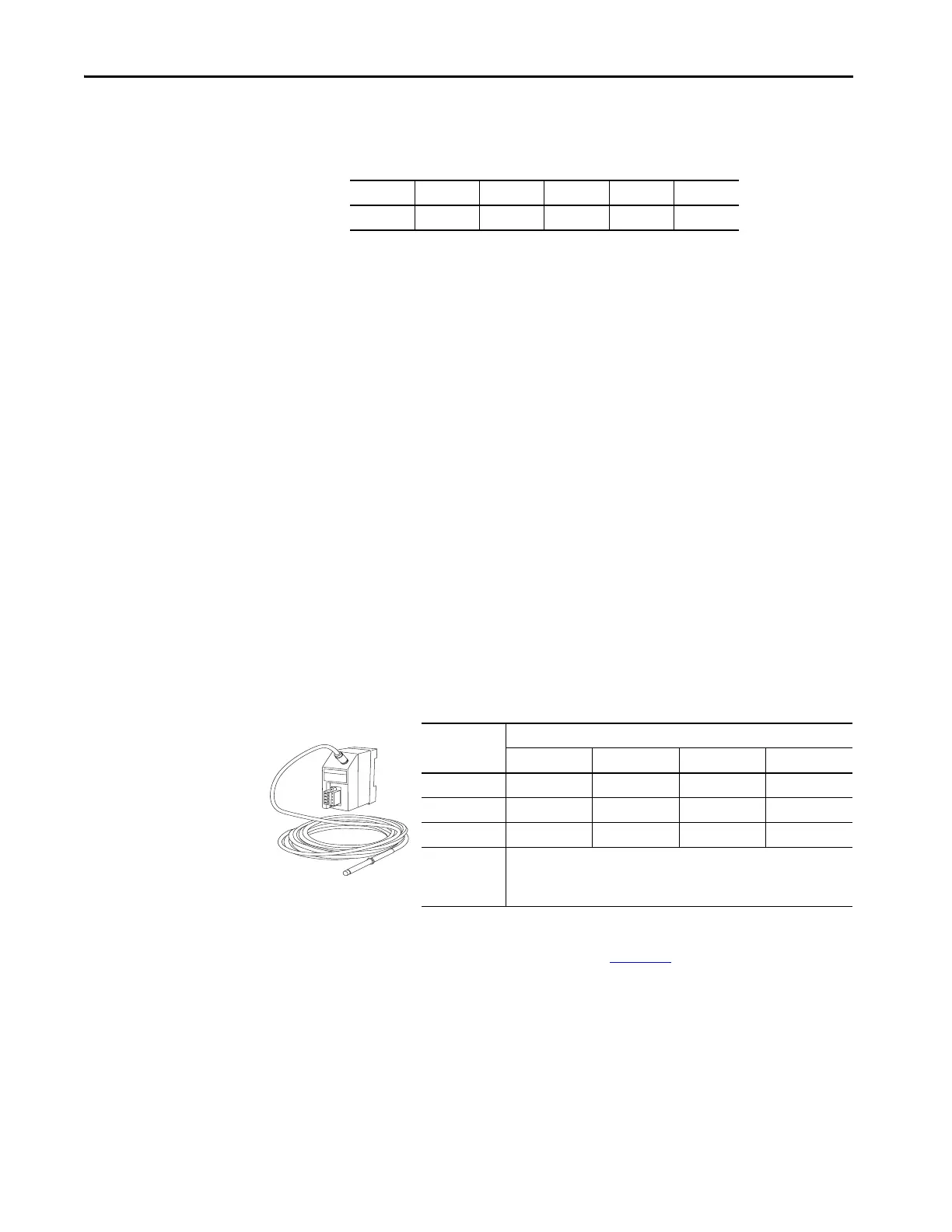

Figure 20 - ECP Connections
The channel must be configured for a negative 24V supply and either of the
two signal connections can be used as in Figure 20
.
17 18 19 20 21 22
T0SIG T0RET T1SIG T1RET
32487-M
ECP Driver Module Channel
0123
Output 2 or 3 6 or 7 10 or 11 14 or 15
Common 4 8 12 16
-24V15913
Shield any terminal base shield pin
upper: 59…64
lower: 19, 20, 23, 24, 27, 28, 31, 32
