Rockwell Automation Publication 1444-UM001D-EN-P - June 2018 65
Install the Dynamix 1444 Series Monitoring System Chapter 2

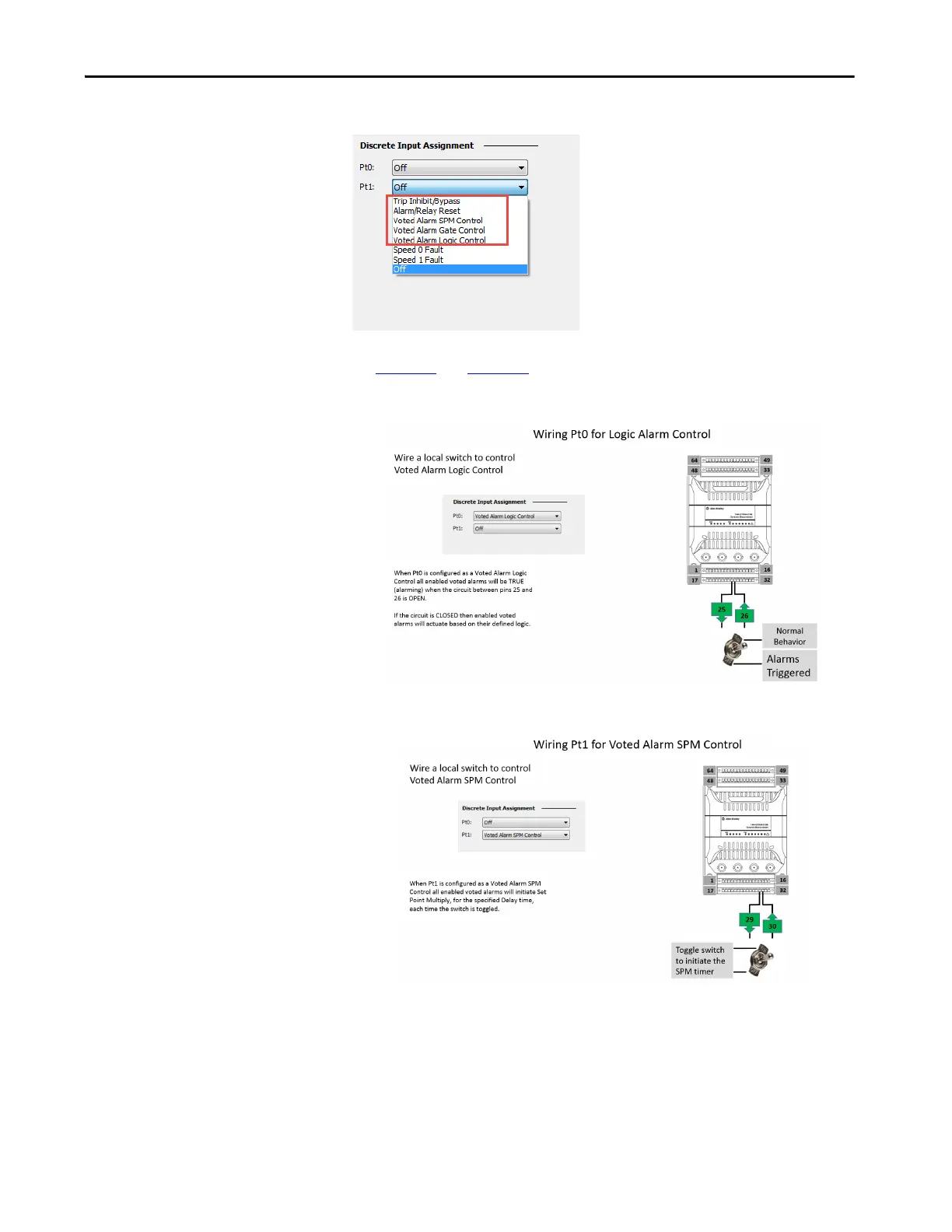

Figure 17 - Discrete Input Assignment
See Figure 18 and Figure 19 f or examples.
Figure 18 - Wiring Pt0 for Logic Alarm Control
Figure 19 - Wiring Pt1 for Voted Alarm SPM Control
These inputs are not isolated from other module circuitry; the signal input has
a resistive pull-up to 5V and the return connection is analog ground/return.
Logic inputs have various possible uses (configuration-dependent), including
alarm gating and SPM controls.
