Rockwell Automation Publication 1444-UM001D-EN-P - June 2018 167
Measurement Definition Chapter 4

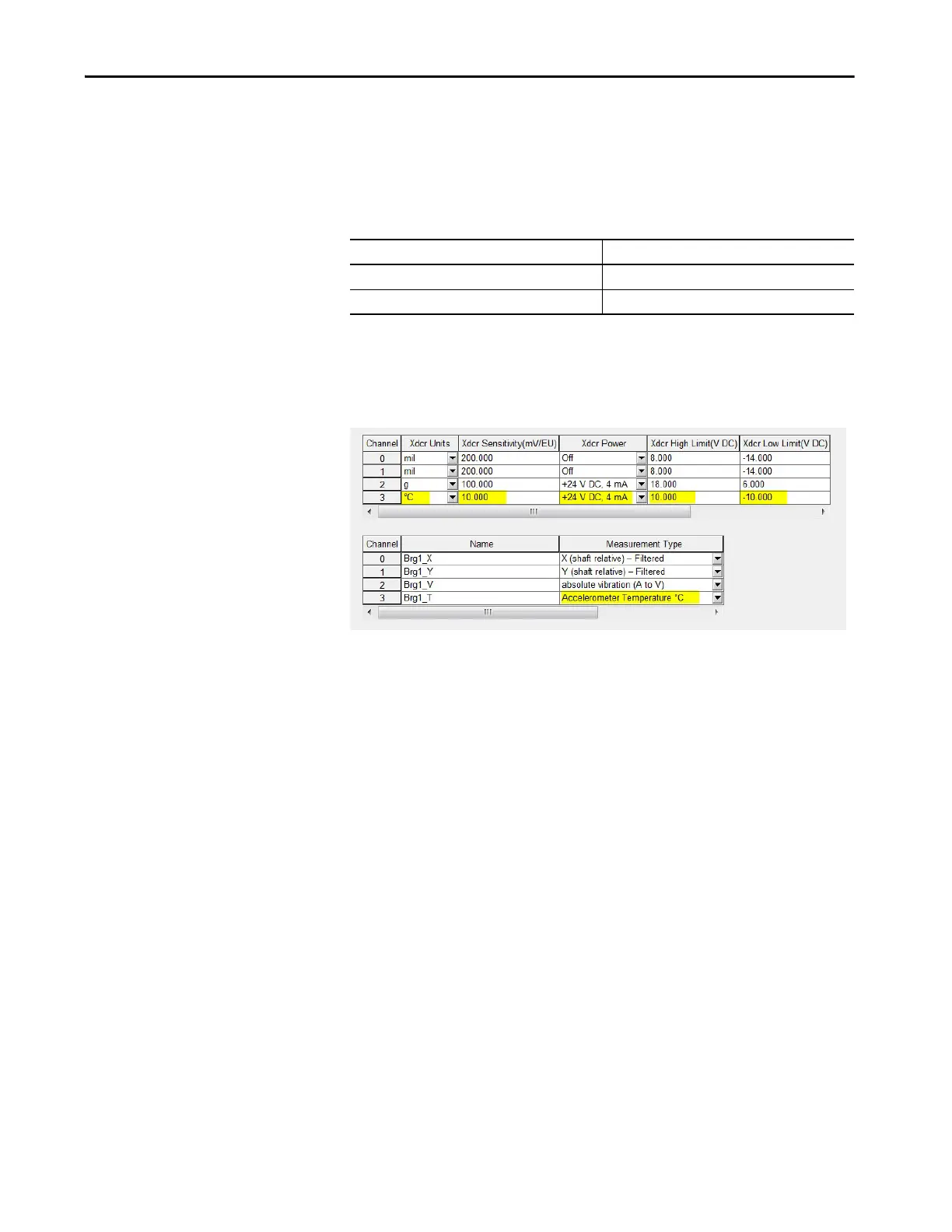

Module Configuration – HW Configuration Page
On the Hardware Configuration page, for the channel that measures the
temperature:
1. Set the measurement type and transducer sensitivity as follows:
2. Set the Transducer Power to “+24V DC, 4 mA”.
3. Set the Transducer High and Low limits to -10 V DC to +10V DC.
Measurement Definition – DC Page
For Proportional DC measurements only three attributes are enabled on the
DC page – Units, Time Constant and Calibration Offset. For temperature
measurements, in most cases, only the Calibration Offset must be entered.
The value to enter for an offset can be determined either of two ways: a
“Nominal Offset” value can be entered, or a “Specific Offset” can be
determined and entered.
Measurement Type Transducer Sensitivity
Accelerometer Temperature °C 10 mV/°C
Accelerometer Temperature °F 5.56 mV/°F
