Relay Output
There is one single pole double throw (SPDT) relay that is included in the
DYN module with the three contact connections being made available at the
terminals. A typical purpose for this module relay is to signal module status.
See Figure 84 on page 209
.
NC – Normally closed
C – Common
NO– Normally open
‘Normal’ is the relay contact state when unpowered.

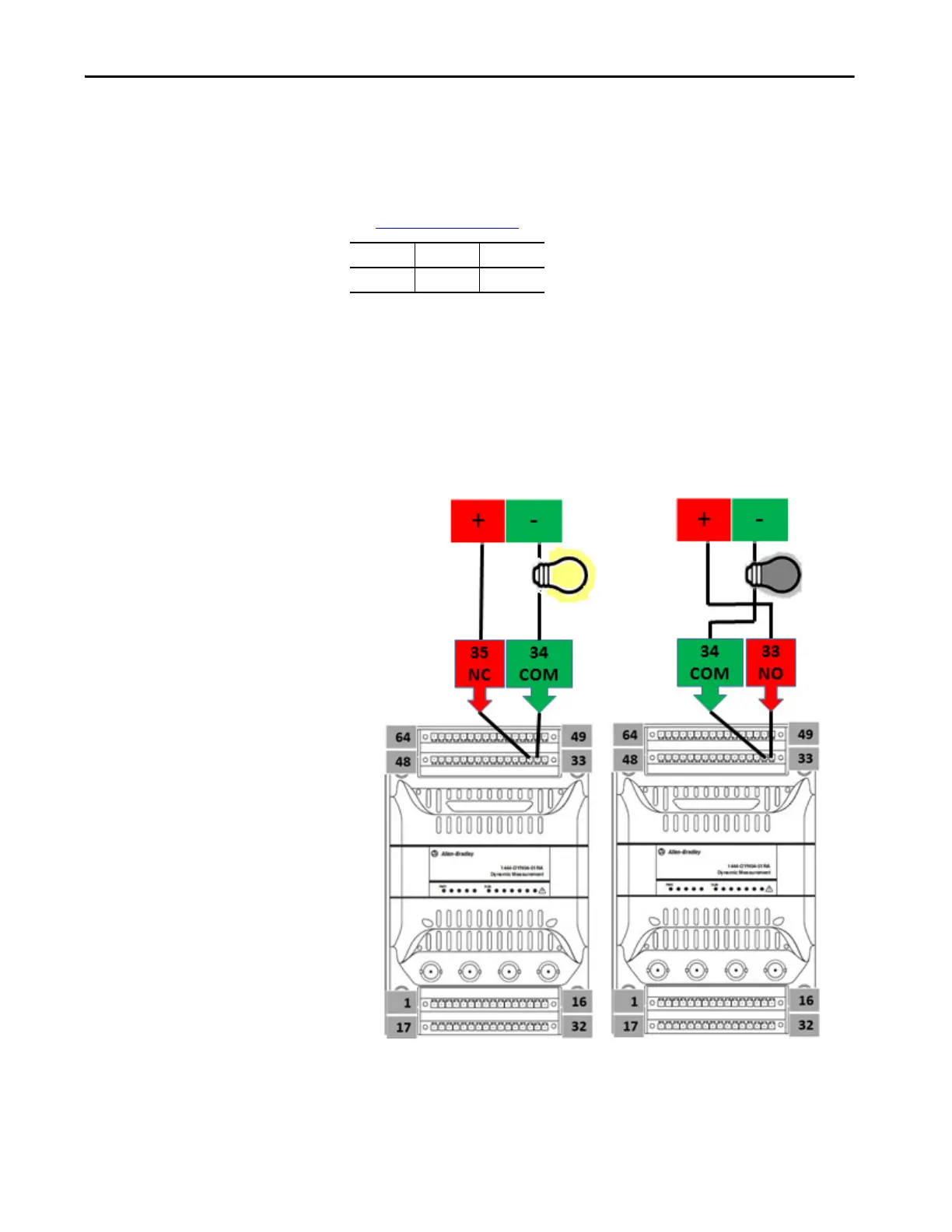

Figure 13 - Wiring Relays
35 34 33
NC C NO
