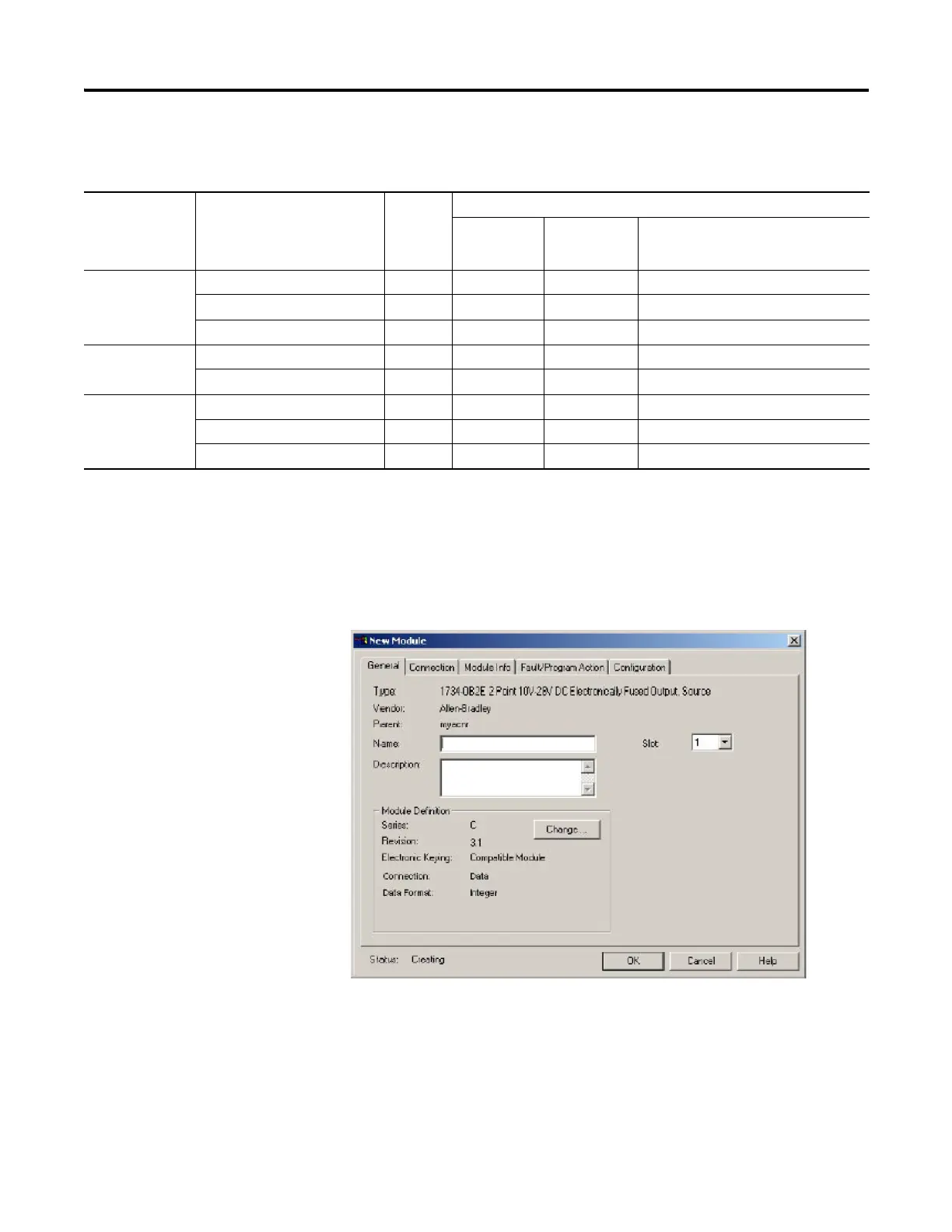

Rockwell Automation Publication 1734-UM001E-EN-P - July 2013
184 Configure POINT I/O Modules in RSLogix 5000 Software
The choices for connection type for modules depend on the communication type
format for the parent adapter, per the table.
Understand Transition to Hard Run Behavior
While online with a controller in Remote Run mode, change fields on the dialogs
you select from the New Module dialog.
When you switch the controller to Hard Run, note the following:
• You disable all controls except for the Description field on the General
dialog, which remains active in all modes.
• You revert to each control that contains an edited value, including the
Description field on the General dialog, to include the following dialogs:
Adapter
Communication
Format
Connection Type Input
Module
Output Module
1734-OA2
1734-OW2,4
1734-OX2
1734-OB2,
1734-OB4,
1734-OB8
1734-OB2E, 1734-OB4E, 1734-OB8E
1734-OB2EP, 1734-OV2E, 1734-OV4E,
1734-OV8E
Listen Only - Rack
Optimization
Data (default) x x x x
Listen Only x x
Listen Only Rack Optimization x x x
None Data (default) x x x x
Listen Only x x
Rack Optimization Data (default) x x x x
Listen Only x
Rack Optimization x x x x
