Rockwell Automation Publication 1734-UM001E-EN-P - July 2013
88 Install POINTBlock I/O Modules

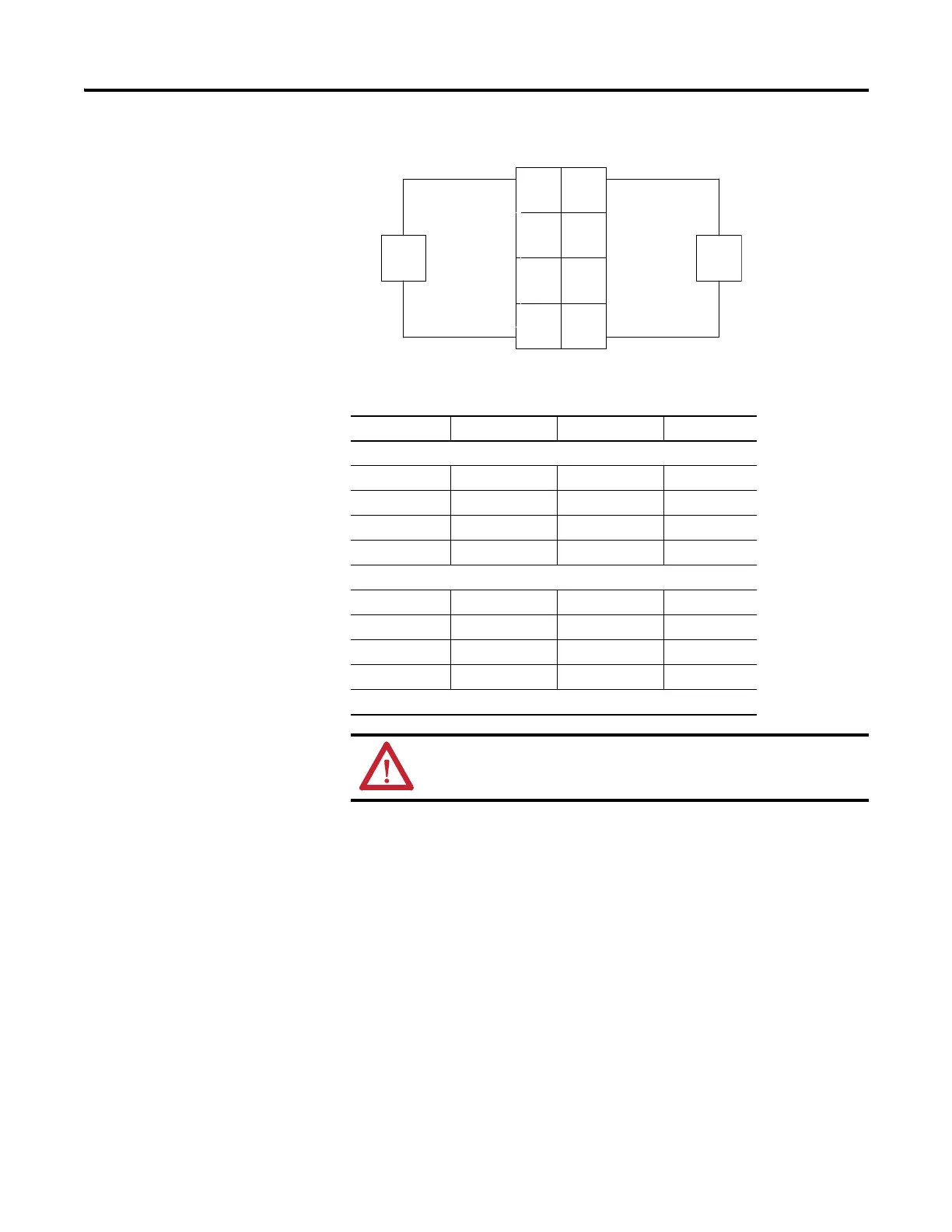

Input Wiring Diagram
Channel Input Terminal Return Voltage
Remote Termination Block 1
00 4 6
11 5 7
22 4 6
33 5 7
Remote Termination Block 2
40 4 6
51 5 7
62 4 6
73 5 7
120V AC is supplied through the internal power bus.
ATTENTION: When connecting more than one wire in a
termination point, make sure that both wires are the same gauge
and type.
Prox
In 0
In 1
In 2
L2
L1
L1
L2
In 3
Prox
L1 = 120V ac
L2 = Return
3
5
7
0
1
2
4
6
To Next Page
