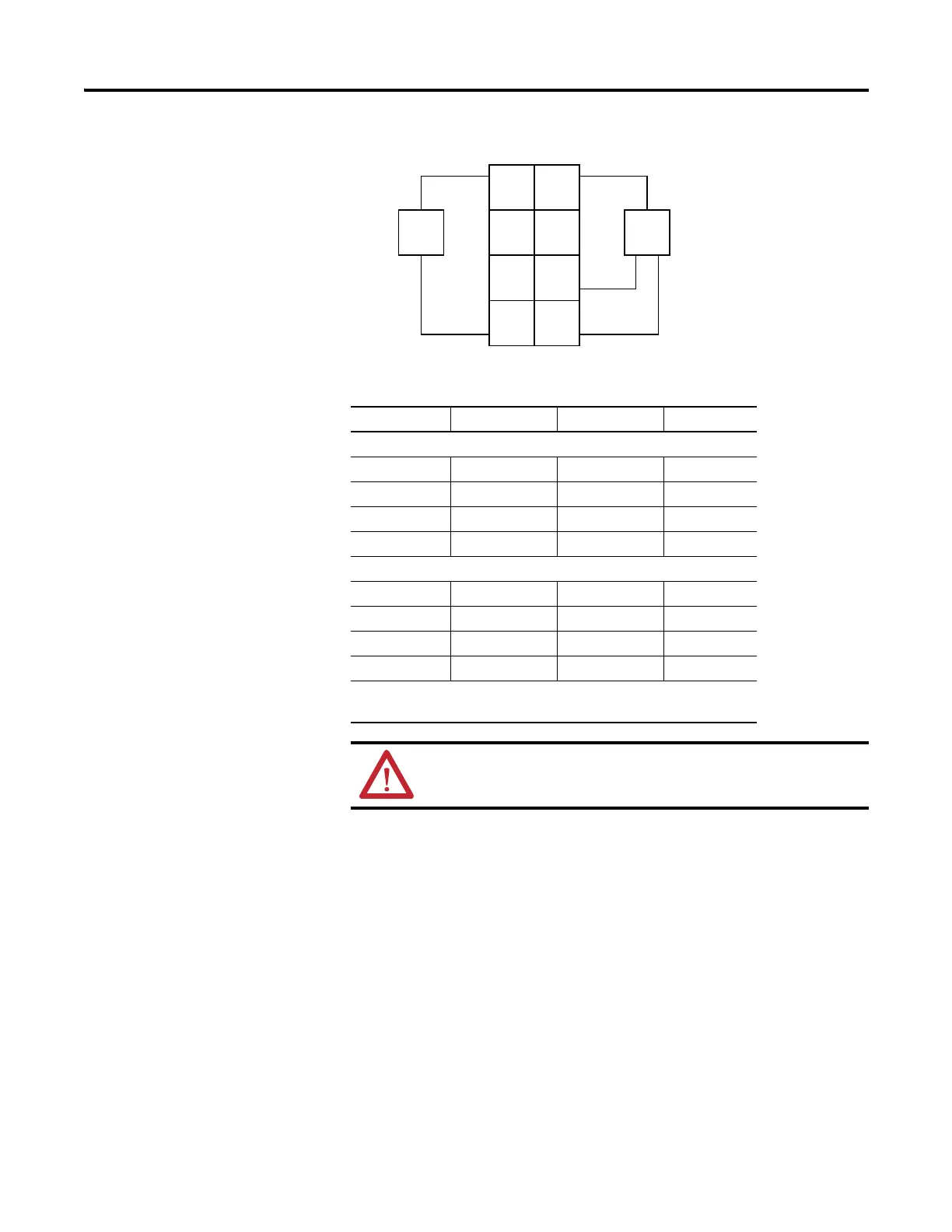

82 Install POINTBlock I/O Modules
Sink Input Wiring
Channel Input Terminal Common Voltage
Remote Termination Block 1
00 4 6
11 5 7
22 4 6
33 5 7
Remote Termination Block 2
40 4 6
51 5 7
62 4 6
73 5 7
Connect common on 3-wire proximity switches.
12/24V DC is supplied through the internal power bus.
ATTENTION: When connecting more than one wire in a
termination point, make sure that both wires are the same gauge
and type.
Prox
In 0 In 1
NC
C
VV
C
NC
Prox
V = 12/24V dc
C = Common
3-wire2-wire
3
5
7
01
2
4
6
