86 Install POINTBlock I/O Modules

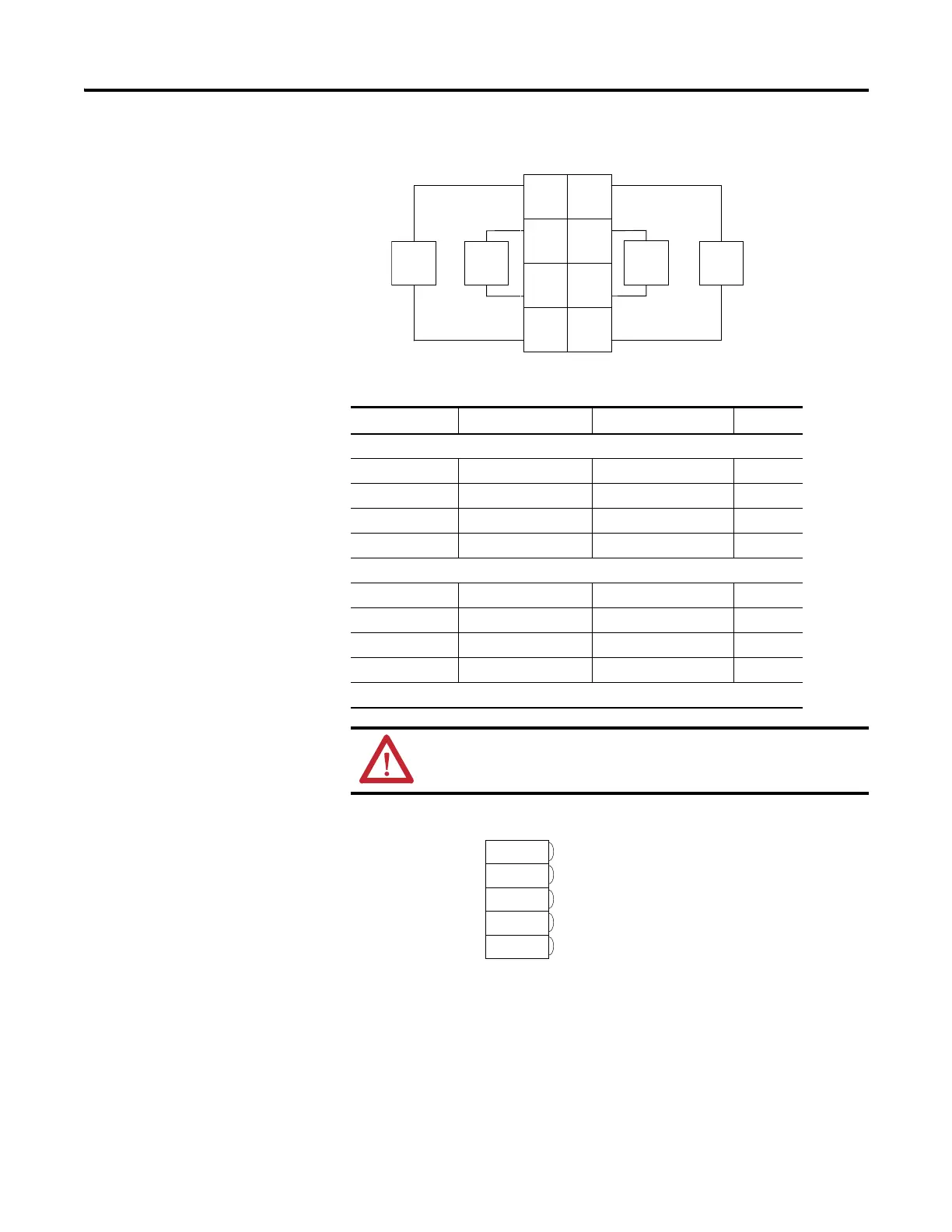

Output Wiring Diagram
DeviceNet Connector Wiring
Channel
Output Terminal Common Terminal Power
Remote Termination Block 3
Channel 0 0 6
Channel 1 1 7
Channel 2 2 4
Channel 3 3 5
Remote Termination Block 4
Channel 4 0 6
Channel 5 1 7
Channel 6 2 4
Channel 7 3 5
Module power is supplied from the internal power bus.
ATTENTION: When connecting more than one wire in a
termination point, make sure that both wires are the same gauge
and type.
Load
In 0 In 1
In 2
L2
L2
L2
L2
In 3
Load
L1 = 120V ac
L2 = Return
3
5
7
01
2
4
6
Load
Load
DeviceNet
Connection
Red
White
Bare
Blue
Black
-V
+V
CAN - High
Shield
CAN - Low
