Allen-Bradley 1734-IE2V - Page 179

Rockwell Automation Publication 1734-UM001E-EN-P - July 2013
Configure POINT I/O Modules in RSLogix 5000 Software 187
1. From the General dialog, select Fault/Program Action.

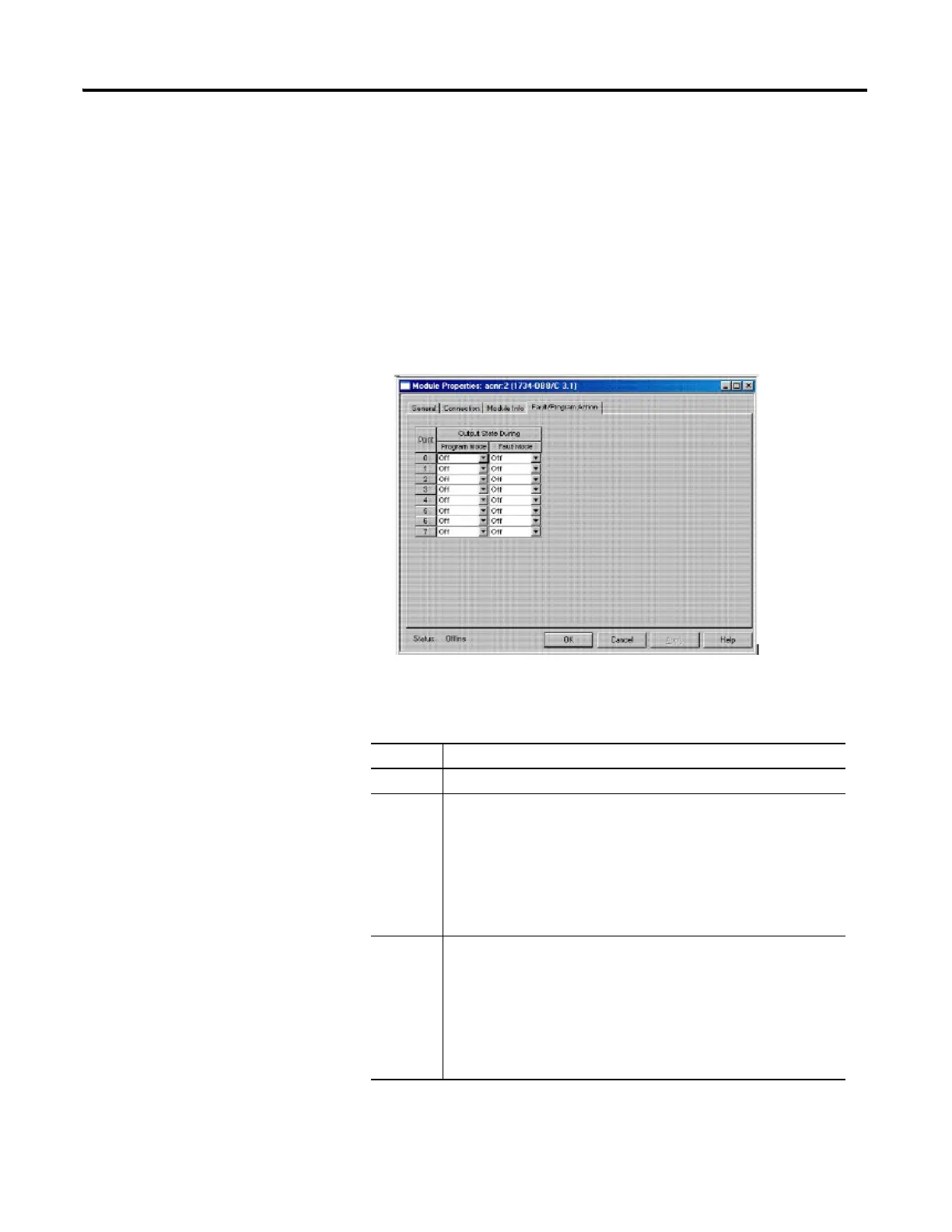

You see the Fault/Program Action dialog. See the figure for the Fault/
Program Action dialog for an 8-point output module. The dialogs for 2-
point and 4-point output modules are identical except for the number of
point you can configure. Use this dialog to configure the Program mode
and Fault mode for channels for the following modules:
• Without diagnostic status
• With overload diagnostic status
• With overload and open load diagnostic status
2. From the Fault/Program Action dialog, complete entries, referring to the
table for a summary of how to make these entries.
3. From the Fault/Program Action dialog, perform one of the following:
Feature Description
Point Displays the channel numbers.
Program
Mode
• Select a value to determine the behavior of each output when the
controller transitions to the Program mode.
• Make a selection from the available values for each channel:
- Off (default)
- On
- Hold
• In Hard Run only, you disable editing this feature.
Fault Mode • Select a value to determine the behavior of each output when
communication with the controller fails.
• Select from the available values for each channel:
- Off (default)
- On
- Hold
• In Hard Run only, you disable editing this feature.
