Rockwell Automation Publication 1734-UM001E-EN-P - July 2013
190 Configure POINT I/O Modules in RSLogix 5000 Software
• Auto Restart

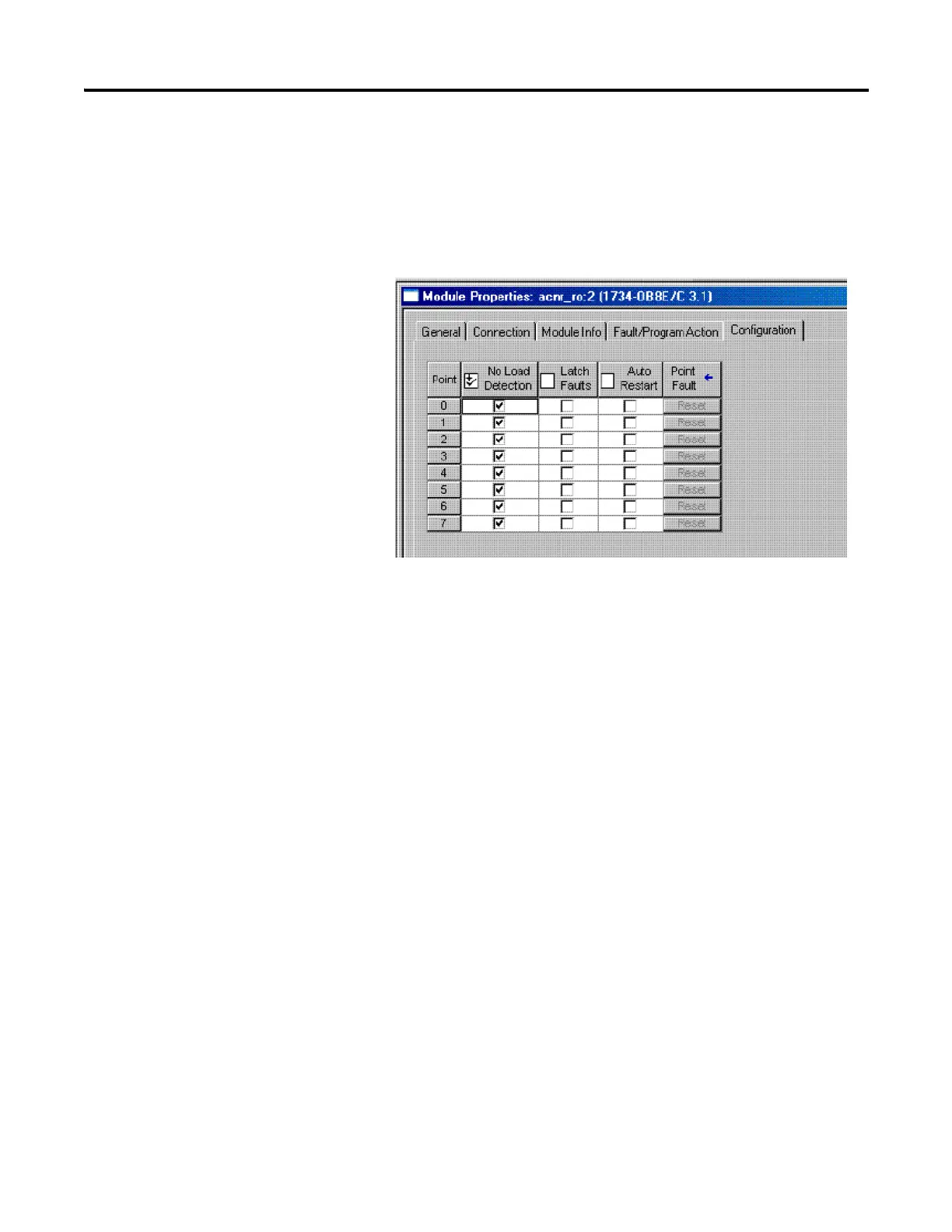

See the figure where, as an example, if you want to configure all of the
channels the same way, you check the No Load Detection header. This
checks all the boxes in the column and enables the bit for all the
channels in the module.
4. From the bottom of the Configuration dialog, perform one of the
following:
• Click another tab at the top of the dialog.
or
• Click OK, which closes the dialog.
or
• Click Cancel to return to default values.
or
• Click Apply to save changes you made on any of the dialogs and
continue to display the dialog, noting that you enable the Apply button
when you make changes to any of the dialogs.
