Rockwell Automation Publication 1734-UM001E-EN-P - July 2013
Configure POINT I/O Modules for DeviceNet Networks 221

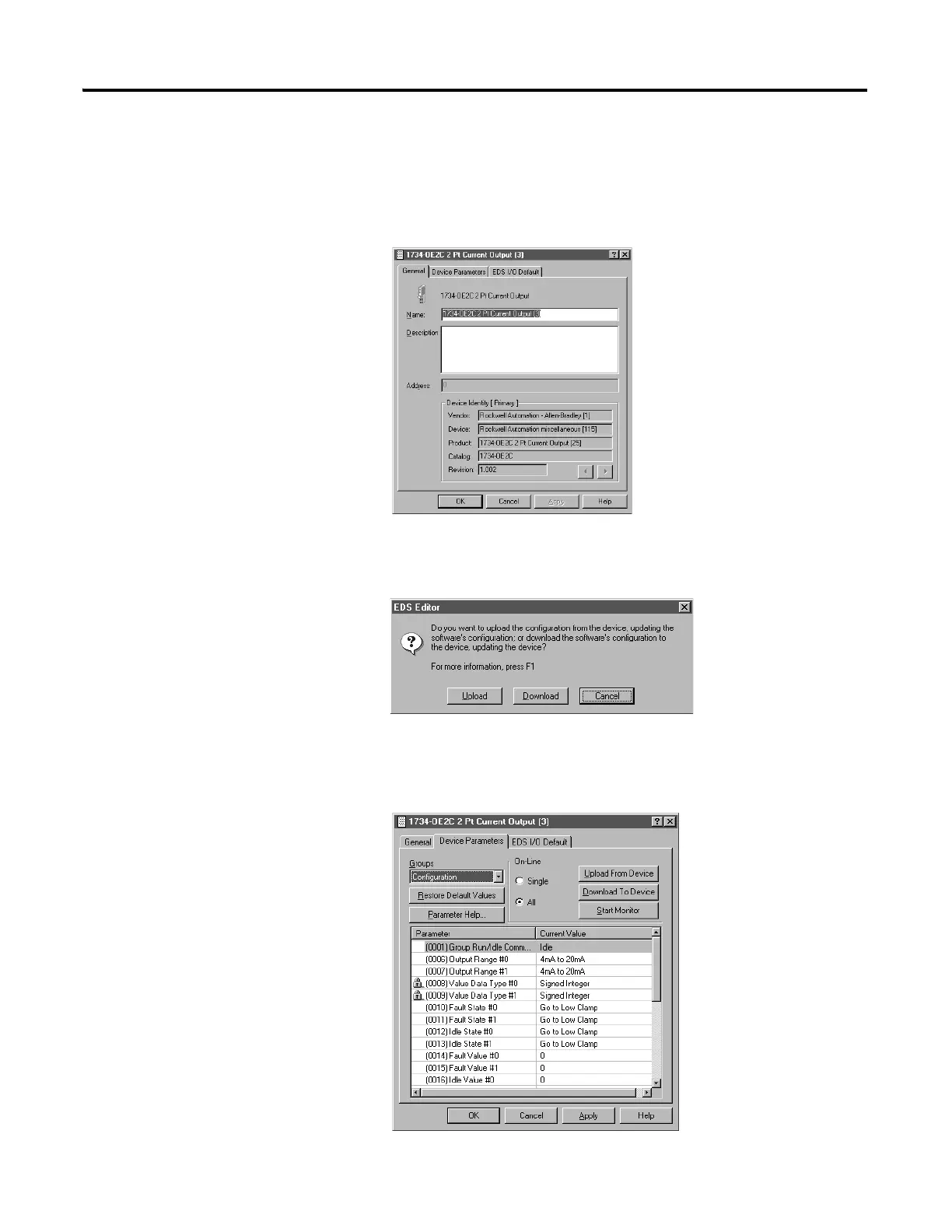

To configure the analog output module, use this procedure.
1. Double-click the icon.
The General dialog appears.
2. From the General dialog, click Device Parameters to set parameters.
You see the EDS Editor dialog.
3. From the EDS Editor dialog, click Upload to upload existing parameters
from the device.
4. From the Device Parameters dialog, from Groups select Configuration.
