1-4 About the Modules
EXAMPLE

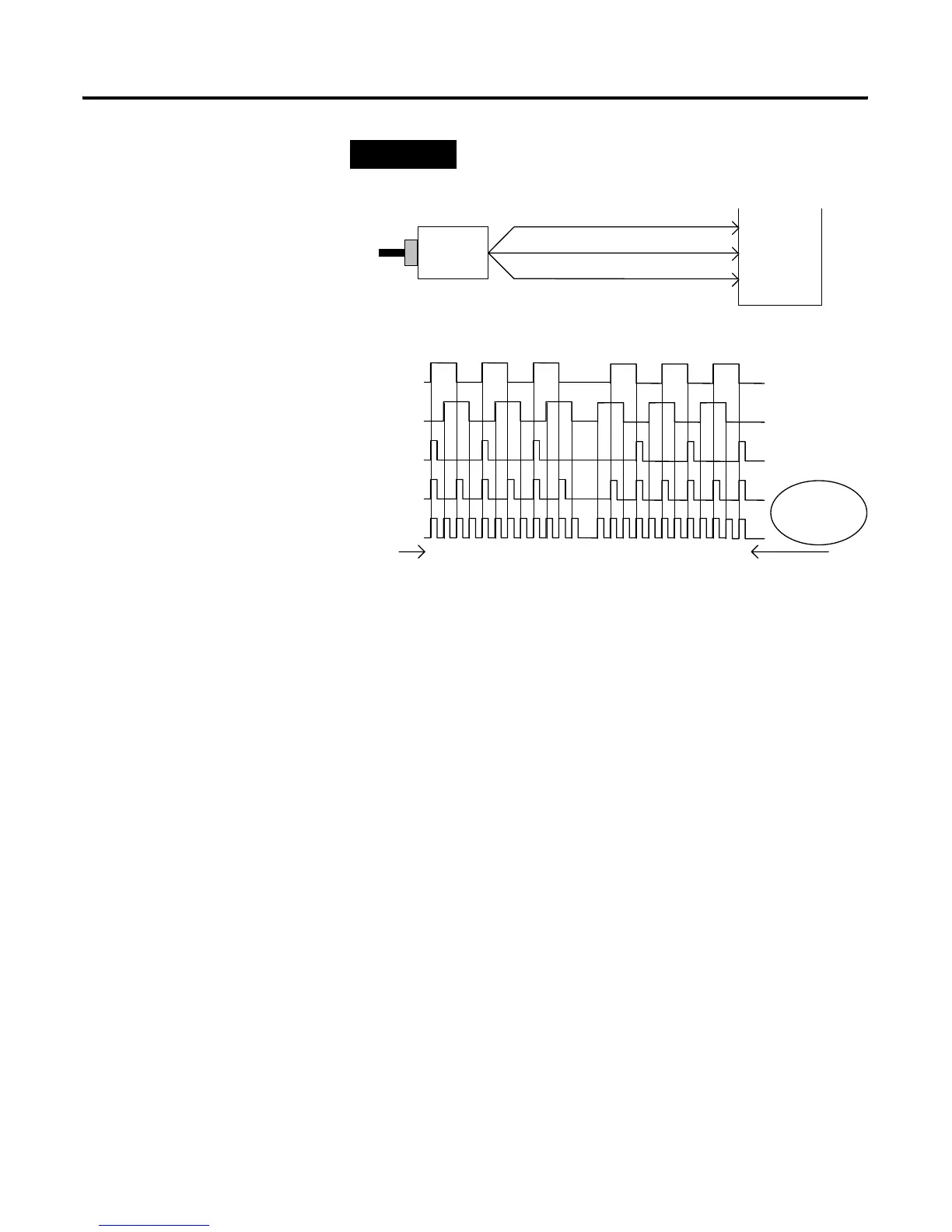

Example of Multiplying Encoder Mode X1
X1 Multiplying Encoder Mode
Quadrature input signals are used to count on the leading (up
direction) OR trailing (down direction) edge of A for a bidirectional
count, and channel B is used to determine the direction.
[ B = leads A, Count = Down; B = follows A, Count = Up ]
X2 Multiplying Encoder Mode
Quadrature input signals are used to count on leading AND trailing
edges of A for a bidirectional count, and channel B is used to
determine the direction.
[ B = leads A, Count = Down; B = follows A, Count = Up ]
X4 Multiplying Encoder Mode
Quadrature input signals are used to count on leading AND trailing
edges of A AND B for a bidirectional count, and channel B is used to
determine the direction.
[ B = leads A, Count = Down; B = follows A, Count = Up ]
A
B
Quadrature Encoder
1734-VHSC
Input A
Input B
123
135246
1352467 10981211
A
Input
B
Input
X
1 Count
X
2
Count
X
4 Count
210
531420
11 9 710 8 6 5 23401
Forward Rotation Reverse Rotation
Input Z
Outputs
Updated
Continuously
Z (Store Count)
(Gate / Reset )
