Configure a ControlNet Module
50 Rockwell Automation Publication CNET-UM001F-EN-P - February 2018

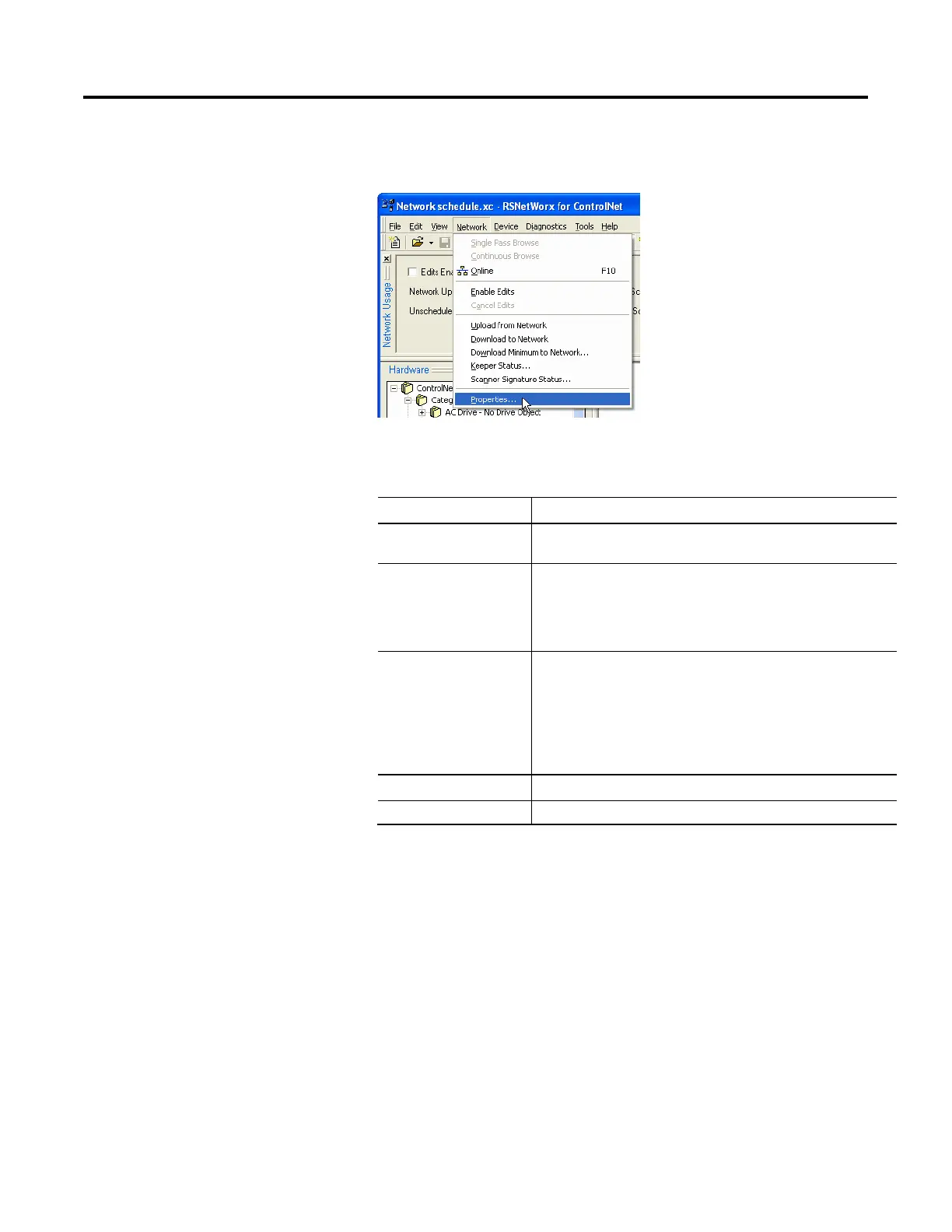

9. To change the network properties from default settings to those that
best fit your network, from the Network menu, choose Properties.
10. On the Network Parameters tab, configure the network parameters, as
described in the table below, and click OK.
Parameter Description
Network Update
Time (ms)
The smallest user-configurable repetitive time cycle at
which data can be sent on a ControlNet network.
Max Scheduled
Address
This is the node with the highest network address that
can use scheduled time on a ControlNet link. I/O data is
transferred during scheduled time. RSNetWorx for
ControlNet software sets this value. We recommend that
you not change it.
Max Unscheduled
Address
Node with the highest network address that can use
unscheduled time on a ControlNet link. Messaging data
is transferred during unscheduled time.
Nodes set at addresses higher than the maximum
unscheduled node do not communicate on the network.
For example, they will not display in FactoryTalk Linx
software.
Media Redundancy Designates if the network uses media redundancy.
Network Name User-defined name of the network.
