12 Rockwell Automation Publication 1788-UM059B-EN-P - September 2015
Chapter 1 Linking Device Overview
1788-EN2DNR and
1788-EN2DNROM Linking
Device Features
The linking devices have these features.
Features
For Class 0 CIP Safety connections, 5 ms maximum delay from network to
network
EtherNet/IP Features
The linking device supports these connections:
32 Class 0 connections (Safety)
21 Class 1 connections (1 excl. owner, 20 input only/listen only)
16 Class 3 connections
Integrated web server
Beacon-based DLR (Device Level Ring) support
DeviceNet Features
63 nodes on the DeviceNet network
Master/scanner as well as slave/adapter functionality
Safety I/O
Scanner configuration using RSNetWorx
for DeviceNet software
Autoscan
ADR (Automatic Device Replacement) with a capacity of 256 kB
Quick connect (as originator)
I/O slave messaging (bit strobe, polling, cyclic, change of state)

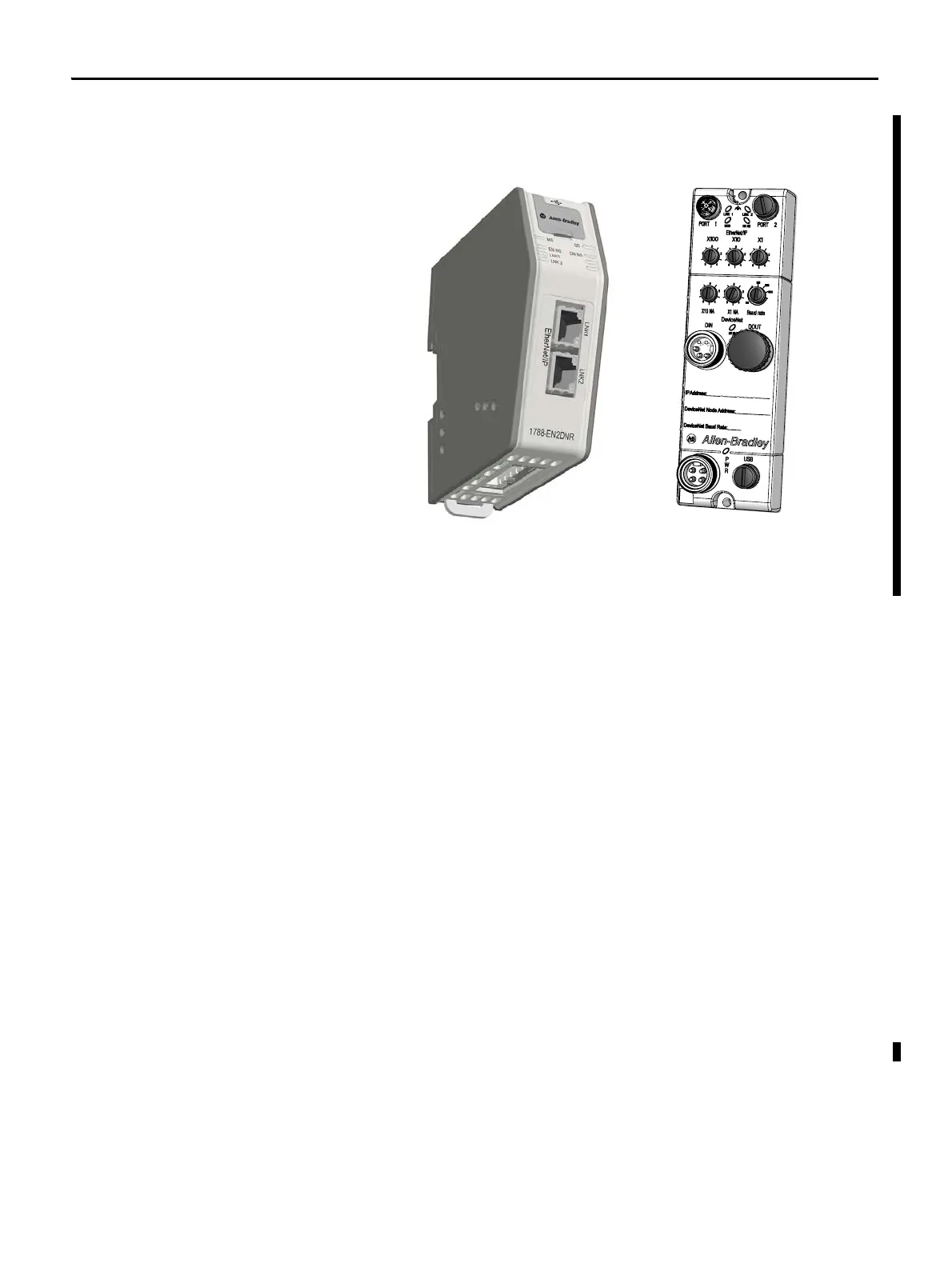

1788-EN2DNR (IP20)
1788-EN2DNROM (IP67)
