Rockwell Automation Publication 1788-UM059B-EN-P - September 2015 67
Chapter 7
Diagnostic Web Pages
The diagnostic web pages are the same for the 1788-EN2DNR and the 1788-
EN2DNROM linking devices.
Access the Diagnostic Web
Pages

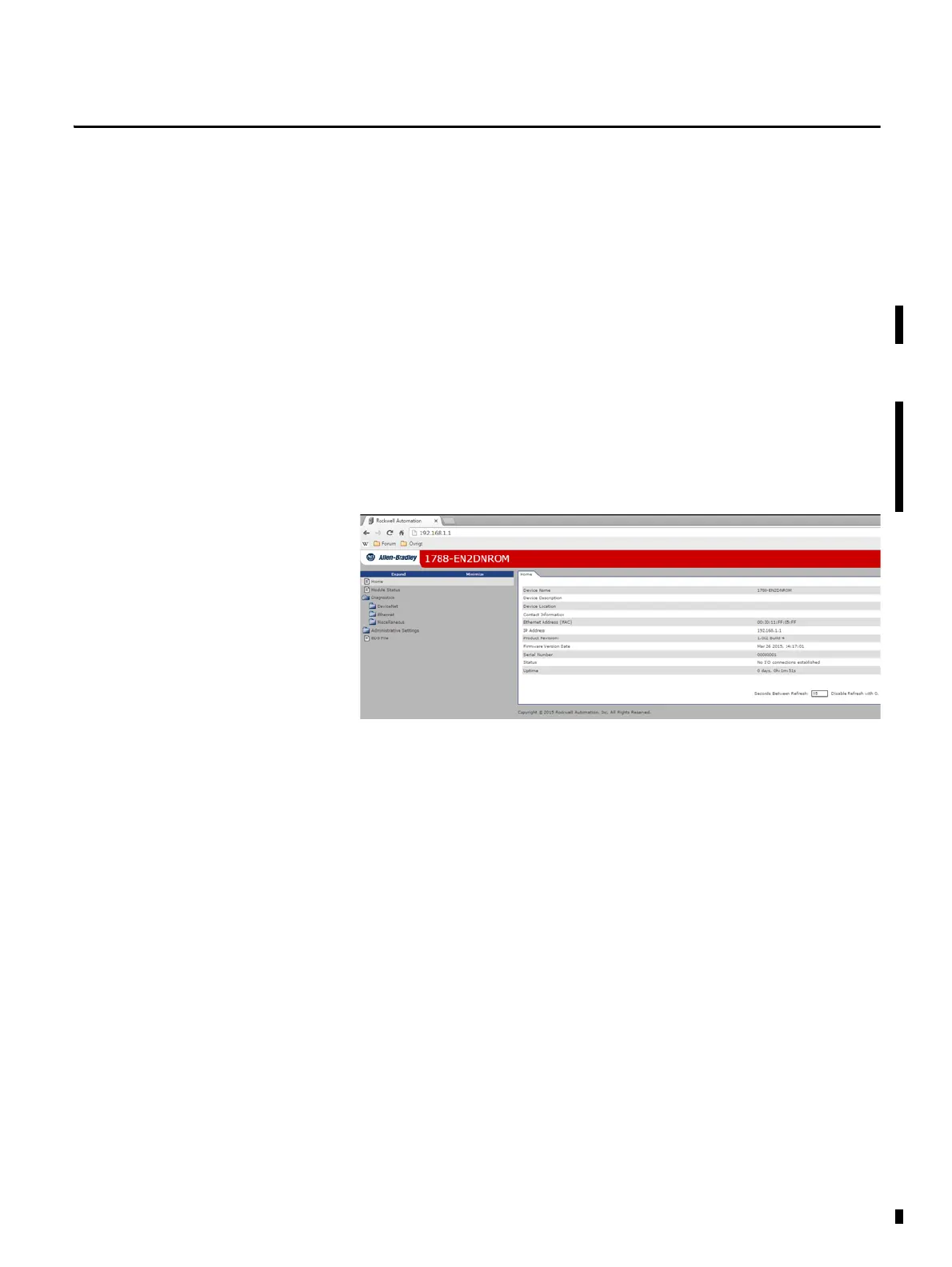

To access the diagnostic web pages, do the following:
1. Browse to the linking device by entering the IP address set by the switches
in your web browser’s address bar and press Enter.
2. In the left pane, click Diagnostics.
Diagnostic Web Pages—
DeviceNet
The following sections explain the diagnostic web pages for the DeviceNet
network.
DeviceNet Status
The DeviceNet Status page presents information about the DeviceNet network
and general DeviceNet diagnostics.
Active Nodes
The Active Nodes page indicates which DeviceNet nodes are currently online on
the DeviceNet network. Nodes that are listed in the scan list are marked ‘Active’.
Nodes that are not in the scan list, but still part of the network, are marked
‘Online’.
