Allen-Bradley 1788-EN2DNR - Mounting the 1788-EN2 DNR Linking Device; Mounting the 1788-EN2 DNROM Linking Device

Rockwell Automation Publication 1788-UM059B-EN-P - September 2015 13
Linking Device Overview Chapter 1
Mounting the 1788-EN2DNR
Linking Device
The 1788-EN2DNR linking device can be mounted to a DIN rail.

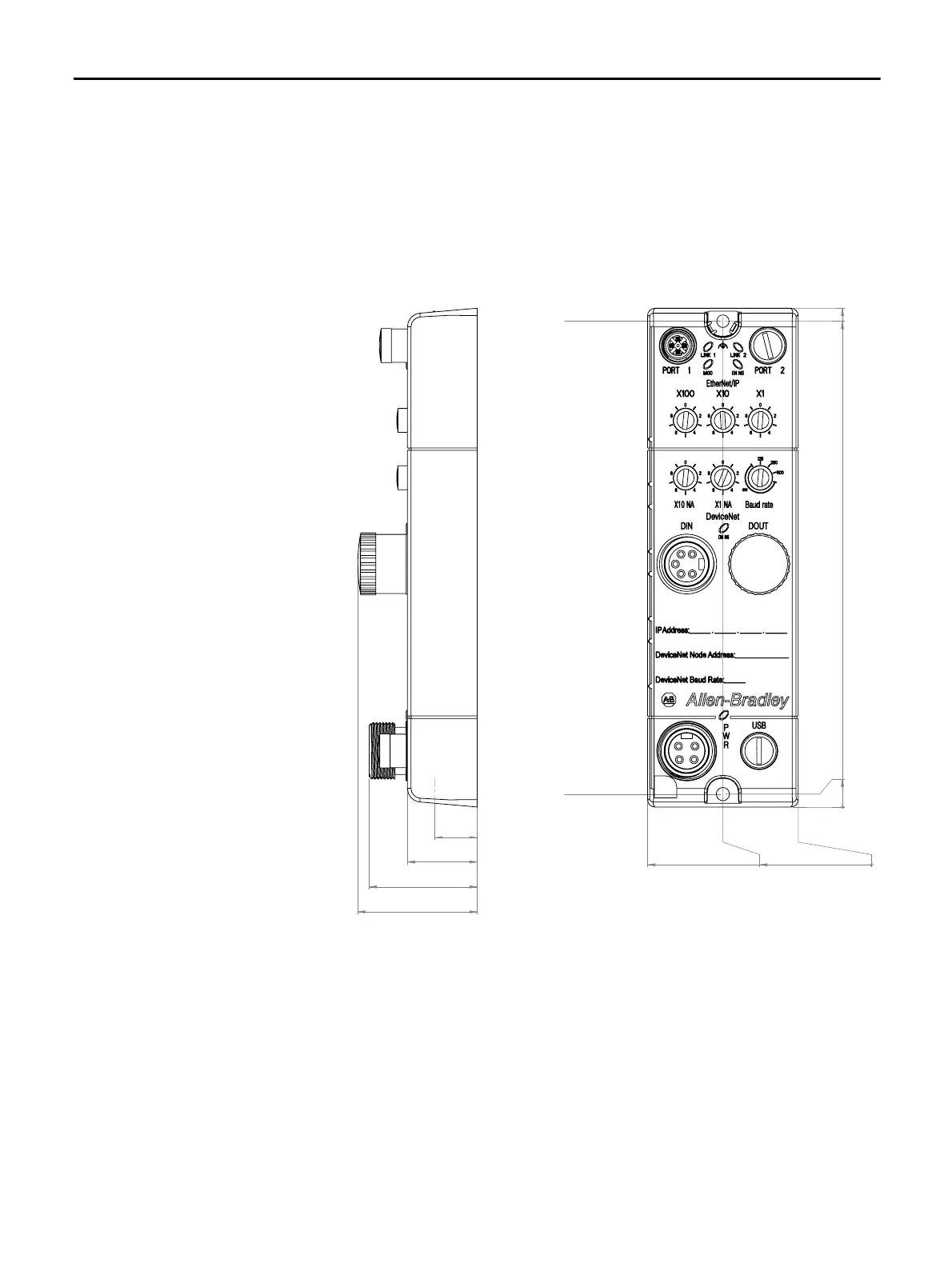

Mounting the
1788-EN2DNROM Linking
Device
Two mounting holes are used to mount the 1788-EN2DNROM linking device
directly to a panel or machine. The mounting holes accommodate #8 (M4) pan
head screws. The torque specification is 1.13 Nm (10 in-lb).
0
5,2
194,8
200
0
60,4 30,2
47,9
28
43,3
17
Mounting Hole
Functional Earth (FE)
Mounting Hole
