Allen-Bradley 1794-IF4I - Page 137

Publication 1794-6.5.8 - January 2010
Specifications 135

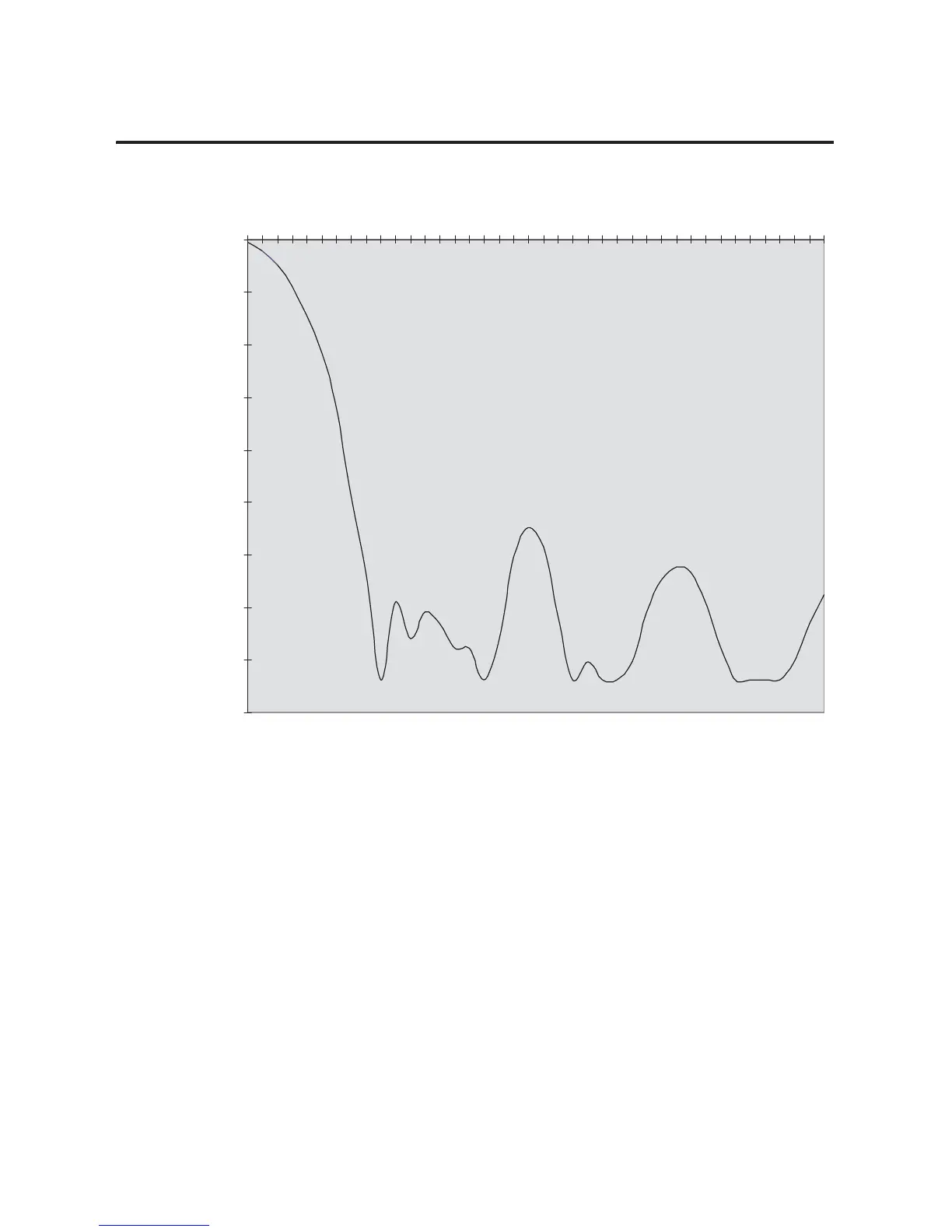

Figure A.2
Filter Response at 300Hz Conversion
±90
±80
±70
±60
±50
±40
±30
±20
±10
0
5
15 25 35 45 55 65 75 85 95
105 115 125 135 145 155 165 175 185 195
Frequency [Hz]
Magnitude [dB]
