116 Rockwell Automation Publication 5000-UM005B-EN-P - November 2015
Chapter 7 Calibrate the Module

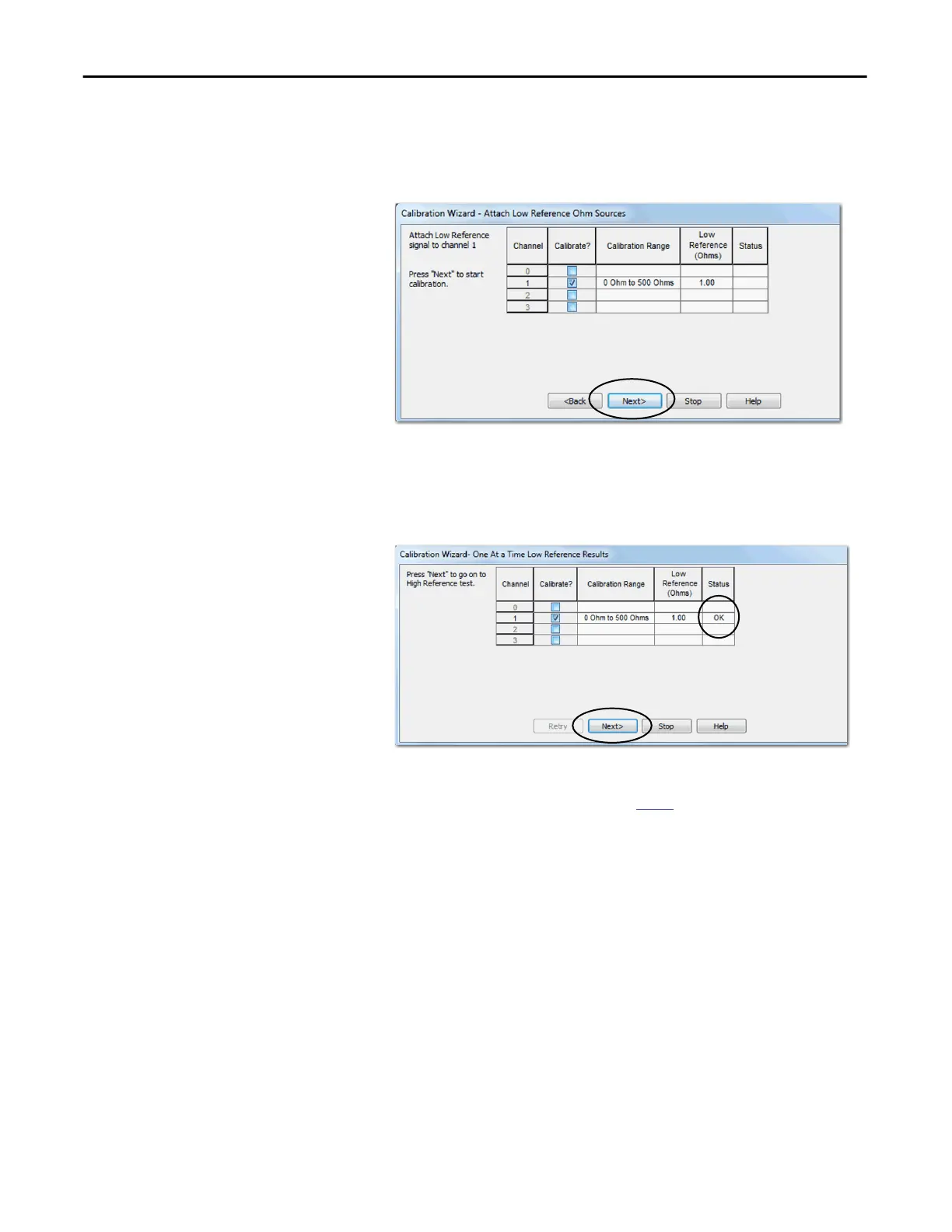

7. When the Attach Low Reference Ohm Sources dialog box appears,
connect a 1 resistor to the channel being calibrated.
8. Click Next.
The One at a Time Low Reference Results dialog box appears and
indicates the status of the channel after calibrating for the low reference.
9. If the status is OK, click Next.
If the status reports an error, return to step 8 until the status is OK.
10. When the Attach High Reference Ohm Sources dialog box appears,
connect a 487 resistor to the channel being calibrated.
