Chapter 5 Connect the Kinetix 5700 Drive System
Motor Feedback Cable Preparation
Observe the lead preparation guidelines for each of the connector kits.

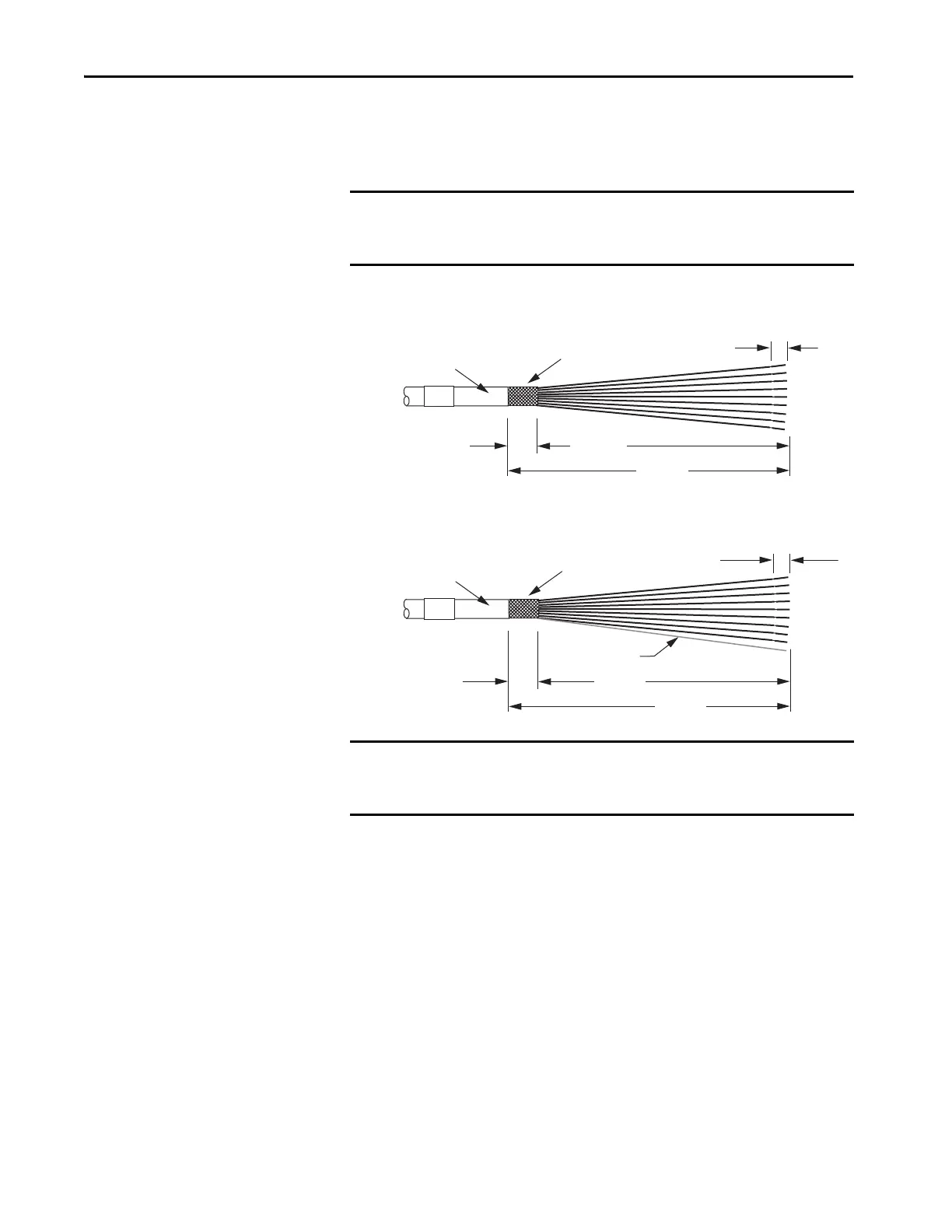

Figure 116 - Lead Preparation for 2198-H2DCK Converter Kit
Figure 117 - Lead Preparation for 2198-K57CK-D15M Connector Kit
IMPORTANT This length of wire is needed to provide a service loop for the longest wires
terminated at the terminal block. However, most wires need to be trimmed
shorter, depending on the terminal they are assigned to.
12.0 (0.5)
5.0 (0.2)
115 (4.5)
103 (4.0)
Cable Jacket
Cable Shield
Dimensions are in mm (in.)
12.0 (0.5)
5.0 (0.2)
110 (4.3)
97 (3.8)
Drain Wire
Cable Jacket
Cable Shield
Dimensions are in mm (in.)
IMPORTANT For the 2198- K57CK-D15M universal connector kit, if your 2090-Series
motor cable does not include a drain wire, you must create one from the
overall shield during wire preparation and connect it to pin 16.
