Connect the Kinetix 5700 Drive System Chapter 5
Apply the Converter Kit/Connector Kit Shield Clamp
Follow these steps to apply the shield clamp.
1. Apply the shield clamp to the 12 mm (0.5 in.) of exposed cable shield.
a. For the 2198- H2DCK converter kit, the shield clamp achieves a
high-frequency bond between the shield braid and ground.
Apply 0.30 N•m (2.6 lb•in) torque to the clamp screws.
b. For the 2198- K57CK-D15M connector kit, you must attach the
drain wire to pin 16 to achieve a high-frequency bond.
Apply 0.34 N•m (3.0 lb•in) torque to the clamp screws.
2. Route and insert each wire to its assigned terminal.
Include a service loop, as shown on page 177
, and refer to the connector
pinout on page 173
.
3. Tighten each terminal screw.
Apply 0.22…0.25 N•m (1.9…2.2 lb•in) torque to each screw.
4. Gently pull on each wire to make sure it does not come out of its
terminal; reinsert and tighten any loose wires.
5. Attach the tie wrap for added stress relief.
IMPORTANT Cable preparation and positioning/wiring that provides a high-
frequency bond between the shield braid/drain wire and ground is
required to optimize system performance.
Also, make sure that the cable is positioned where the cover clamps
onto the jacket for added stress relief.

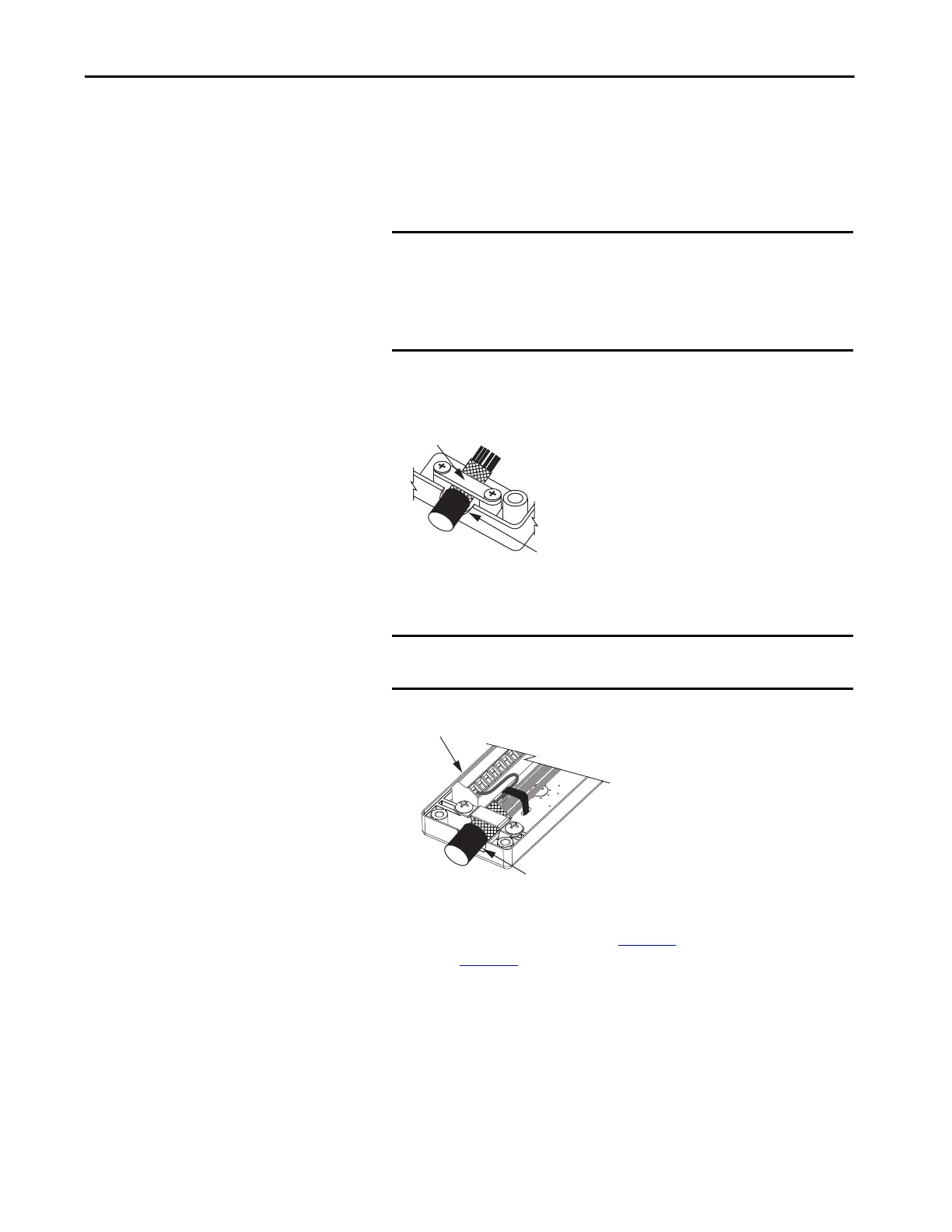

Shield Clamp
Cable Positioned Where Cover Clamps
Onto the Cable Jacket
IMPORTANT If your 2090-Series motor cable does not include a drain wire, you
must create one from the overall shield braid.
Drain Wire
Cable Positioned Where Cover Clamps
Onto the Cable Jacket
To Next Page
