250 Rockwell Automation Publication 2198-UM002G-EN-P - February 2019
Chapter 6 Configure and Start the Kinetix 5700 Drive System

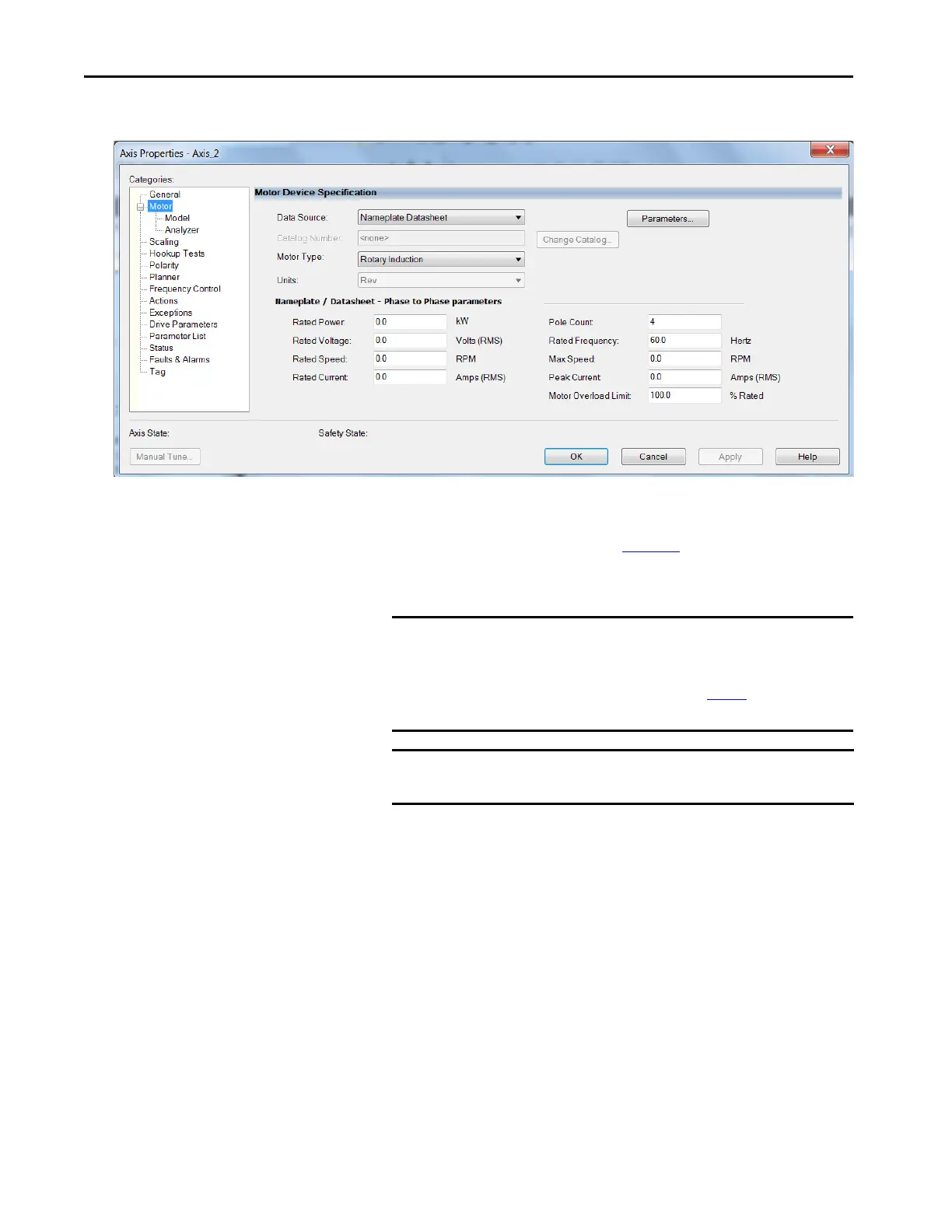

The Motor Device Specification dialog box appears.
7. From the Data Source pull-down menu, choose Nameplate Datasheet.
This is the default setting. If you have an Allen-Bradley HPK-Series™
asynchronous rotary motor, refer to page 246
to see how to populate the
Nameplate / Datasheet parameters by selecting the motor catalog
number.
a. Select the Polarity category.
IMPORTANT When you configure HPK-Series motor parameters by selecting the
motor catalog number, you must also configure the Polarity
category. This requirement applies to only HPK-Series asynchronous
motors. See Knowledgebase document 732760
for more
information.
IMPORTANT Motor NV is not a supported data source in the Logix Designer
application for axes configured as Induction-motor closed-loop.
