254 Rockwell Automation Publication 2198-UM002G-EN-P - February 2019

Chapter 6 Configure and Start the Kinetix 5700 Drive System

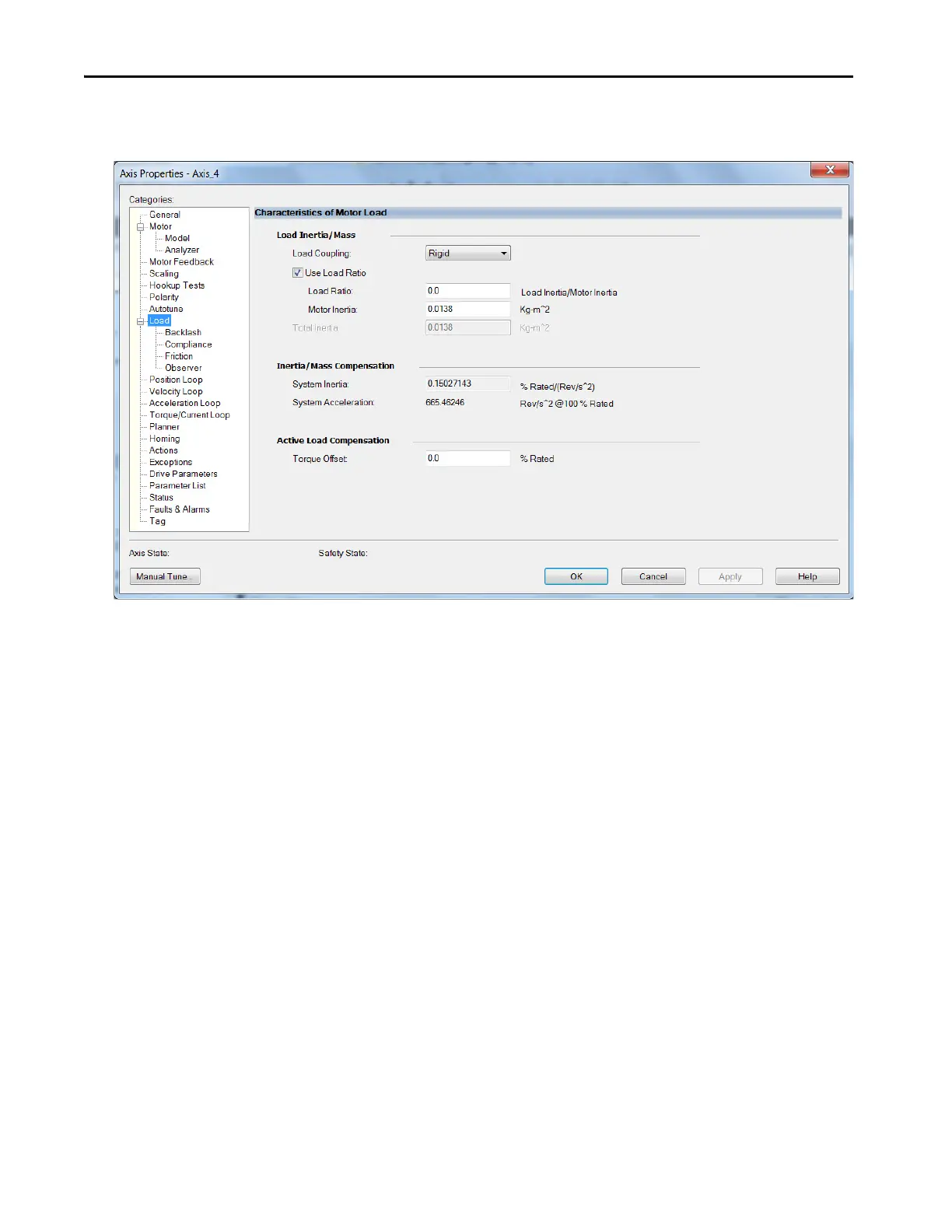

21. Select the Load category and edit the default values as appropriate for

your application.

22. Click Apply, if you make changes.

23. Click OK.

24. Select the Motor>Model category.

Motor model attributes are automatically estimated from the

Nameplate/Datasheet parameters. For improved performance, motor

tests can be run.
