386 Rockwell Automation Publication 2198-UM002G-EN-P - February 2019

Appendix B Upgrade the Drive Firmware

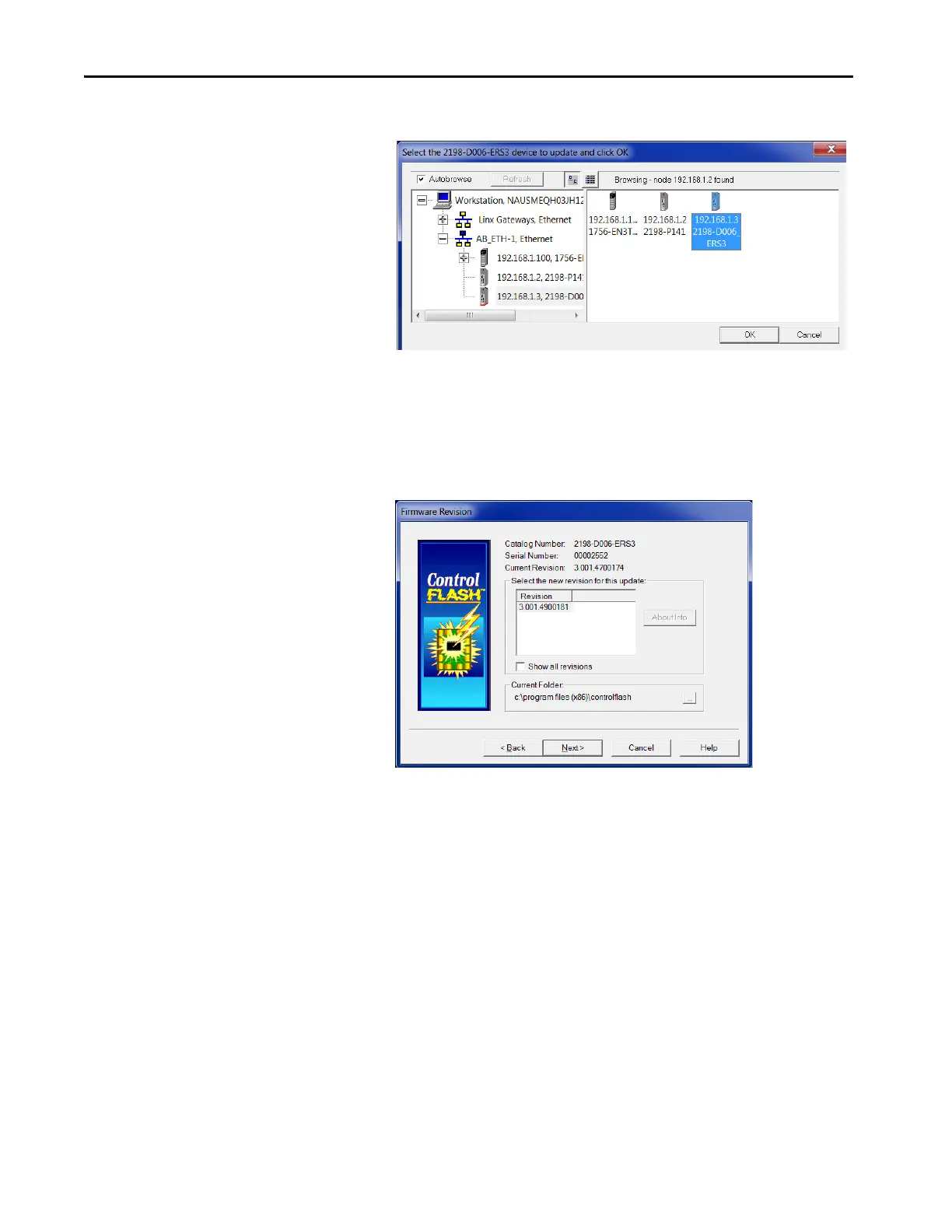

The Select Device to Update dialog box appears.

5. Expand your Ethernet node, Logix backplane, and EtherNet/IP

network module.

6. Select the servo drive to upgrade.

7. Click OK.

The Firmware Revision dialog box appears.

8. Select the firmware revision to upgrade.

9. Click Next.
