Connector Data and Feature Descriptions Chapter 4

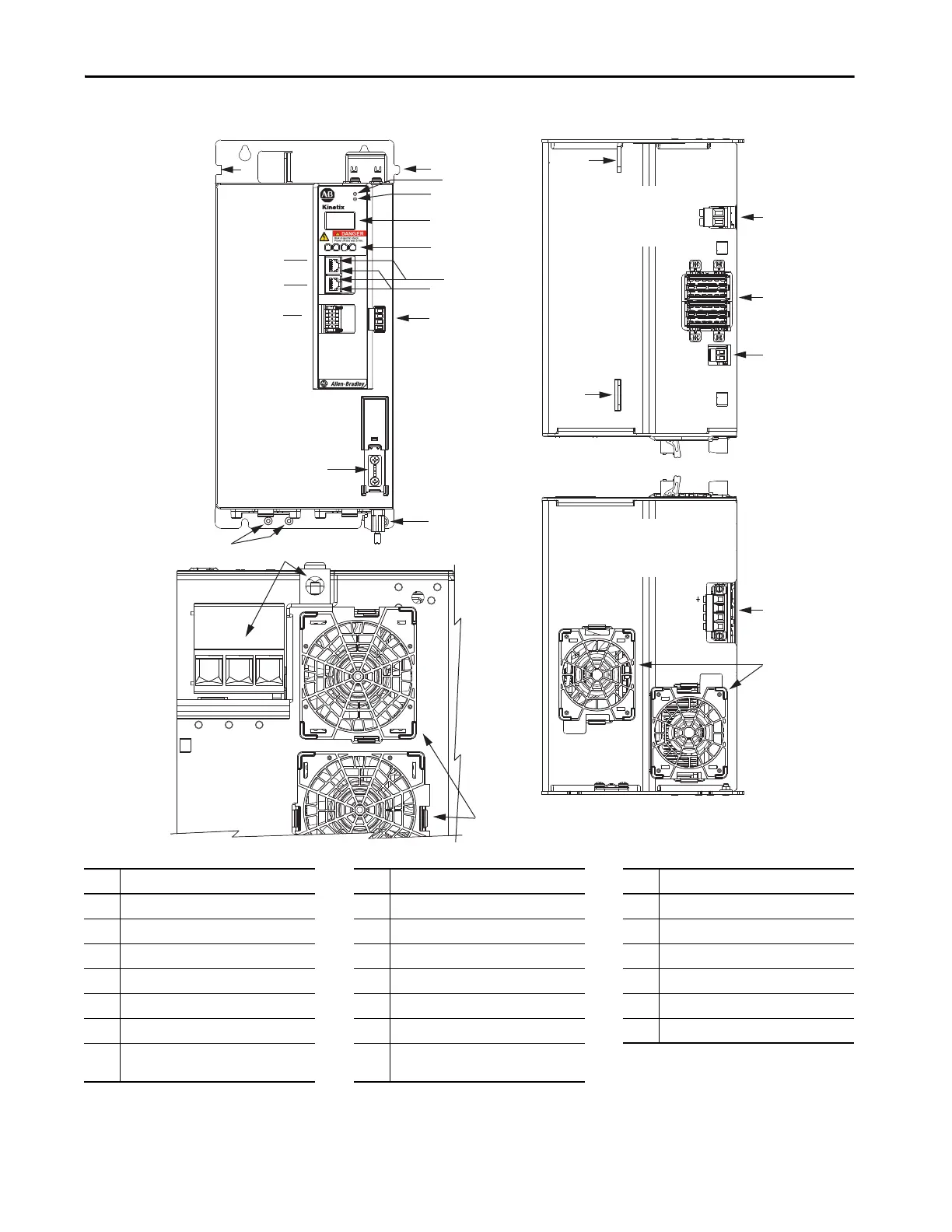

Figure 56 - Regenerative Bus Supply Features and Indicators
Item Description Item Description Item Description
1 Ground jumper in operation 8 Network status indicator 15 Lifting points
2 Ground jumper in storage 9 LCD display 16 Active shunt (RC) connector
3 Digital inputs (IOD) connector 10 Navigation push buttons 17 DC bus (DC) connector
4 Ethernet (PORT1) RJ45 connector 11 Link speed status indicators 18 24V control input power (CP) connector
5 Ethernet (PORT2) RJ45 connector 12 Link/Activity status indicators 19 AC Input power (IPD) connector
(1)
6 Zero-stack mounting tab/cutout 13 Contactor enable (CED) connector 20 Cooling fans
7 Module status indicator 14
Ground lug (partially obscured behind
input plug)
(1) Connector plug orientation applies to 2198-RP088 and 2198-RP200 modules (2198-RP200 connector size is larger). See adjacent figure for 2198-RP263 and 2198-RP312
connector plug size and orientation.
7
4
12
5
9
8
11
6
6
13
17
16
10
14
3
15
18
19
DC+
DC+
DC–
24V–
24V+
L3
L2
L1
MOD
NET
2
1
1
I/O
6
5
10
OK+
OK–
EN–
EN+
5700
DC–
2
1
15
20
19
20
2198-RP088 and 2198-RP200
Regenerative Bus Supply
Bottom View
(2198-RP088 is shown)
2198-RP263
and 2198-RP312
Regenerative Bus Supply
(bottom view)
2198-RPxxx
Regenerative Bus Supply
Top View
(2198-RP088 is shown)
2198-RPxxx
Regenerative Bus Supply
Front View
(2198-RP088 is shown)
