100 Rockwell Automation Publication 2094-UM002G-EN-P - August 2016

Chapter 5 Connect the Kinetix 6200 and Kinetix 6500 Drive System

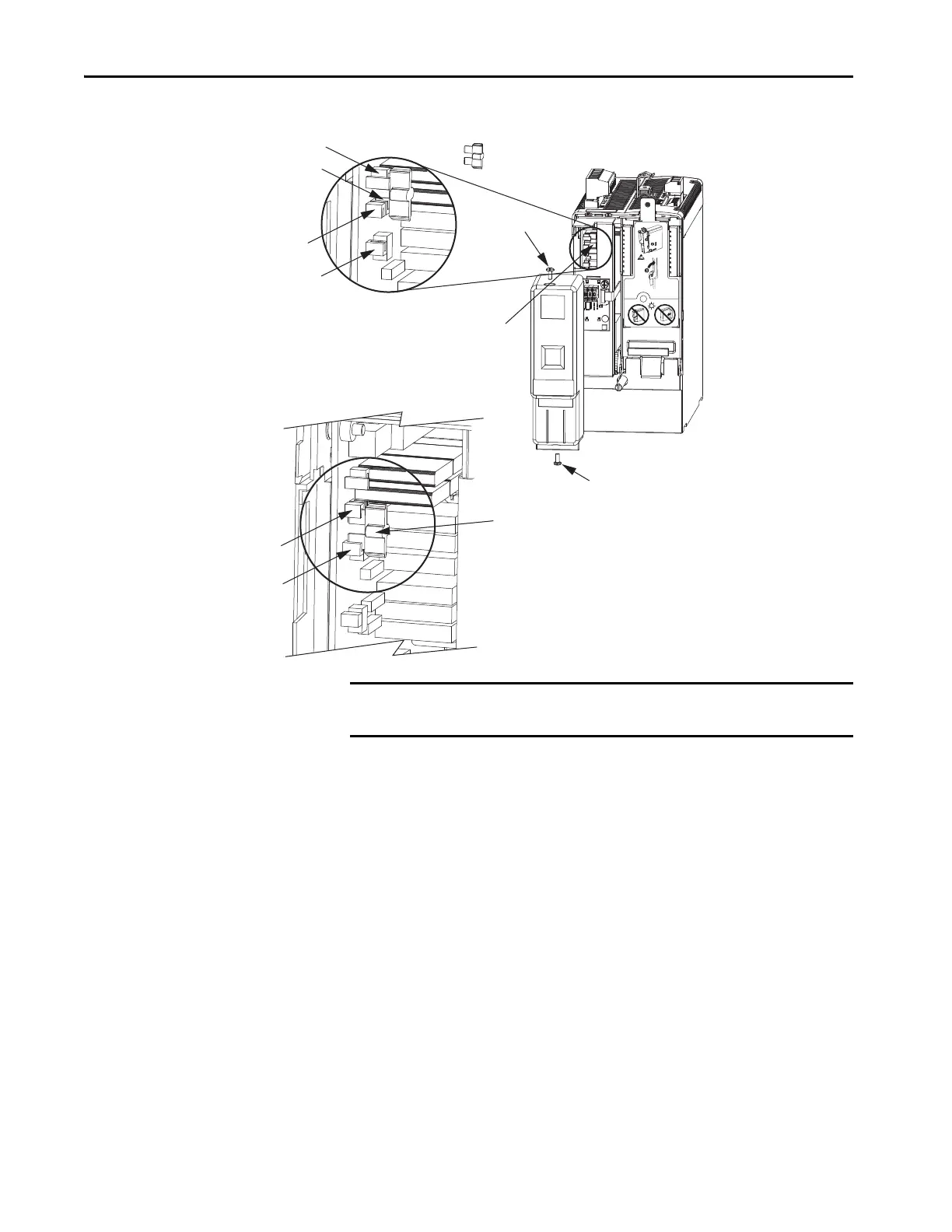

Figure 52 - Setting the Ground Jumper (460V IAM power modules)

P16

P18

P17

(behind P18)

P19

P18

P19

Bottom Screw

Front Panel

(removed)

Ground jumper set

for grounded configuration

(default setting).

Ground jumper set for

ungrounded configuration.

Top Screw

2094-BC01-MP5-M,

2094-BC01-M01-M,

2094-BC02-M02-M,

2094-BC04-M03-M, or

2094-BC07-M05-M

IAM Power Module (460V)

Removable Jumper

IMPORTANT Use the default jumper setting for grounded power configurations. Move

the jumper, as shown above, for ungrounded power.
