Rockwell Automation Publication 2094-UM002G-EN-P - August 2016 261
Upgrade the Drive Firmware Appendix B
Upgrade Firmware
Follow these steps to select the drive module to upgrade.
1. Open your ControlFLASH software.
You can access the ControlFLASH software by either of these methods:
• From the Tools menu in the Logix Designer application, choose
ControlFLASH.
• Choose Start>Programs>FLASH Programming Tools>
ControlFLASH.

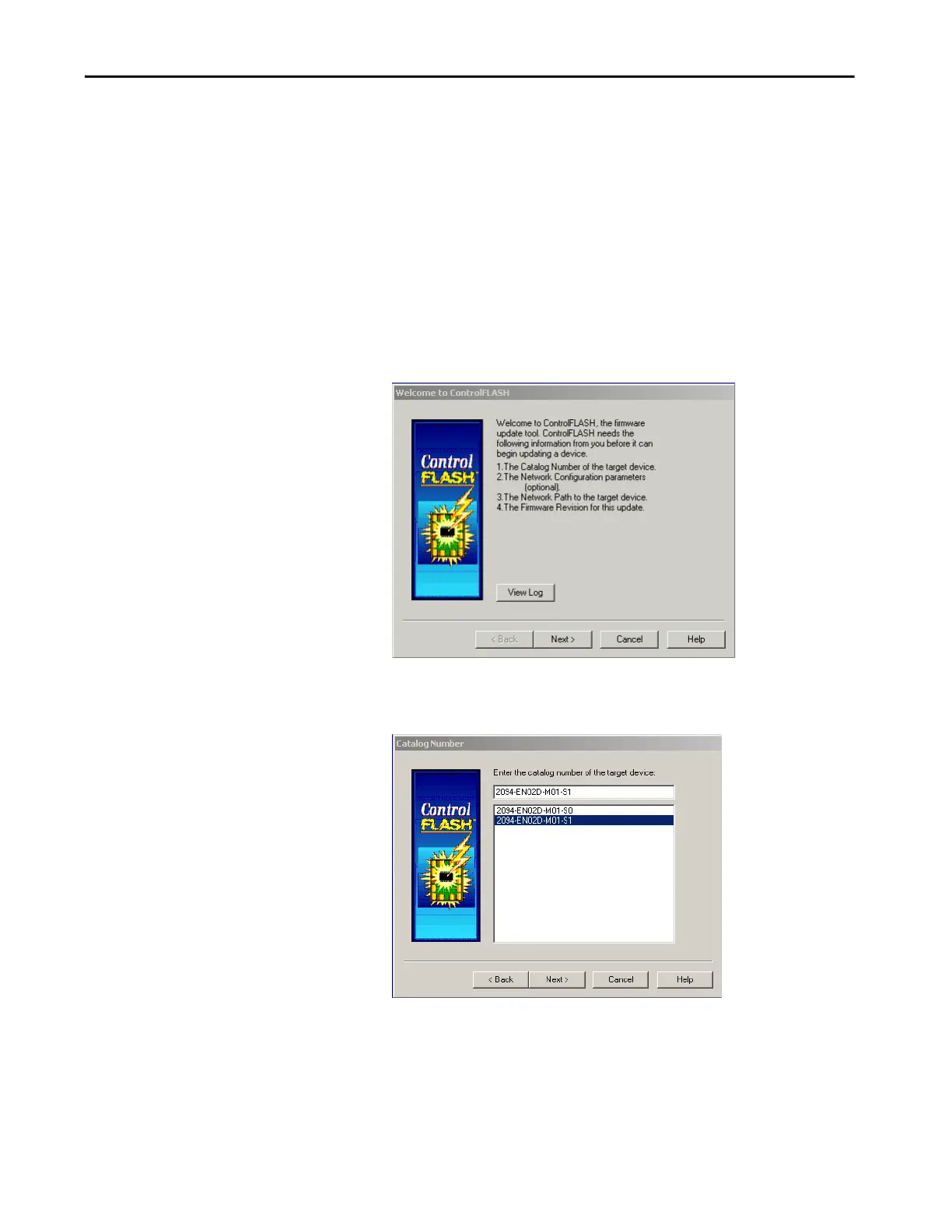

The Welcome to ControlFLASH dialog box opens.
2. Click Next.
The Catalog Number dialog box opens.
3. Select your drive module.
In this example, the Kinetix 6500 control module is selected. If you are
flashing a Kinetix 6200 control module, you’ll select your Bulletin 2094
power module and control module combination.
4. Click Next.
To Next Page
