260 Rockwell Automation Publication 2094-UM002G-EN-P - August 2016

Appendix B Upgrade the Drive Firmware

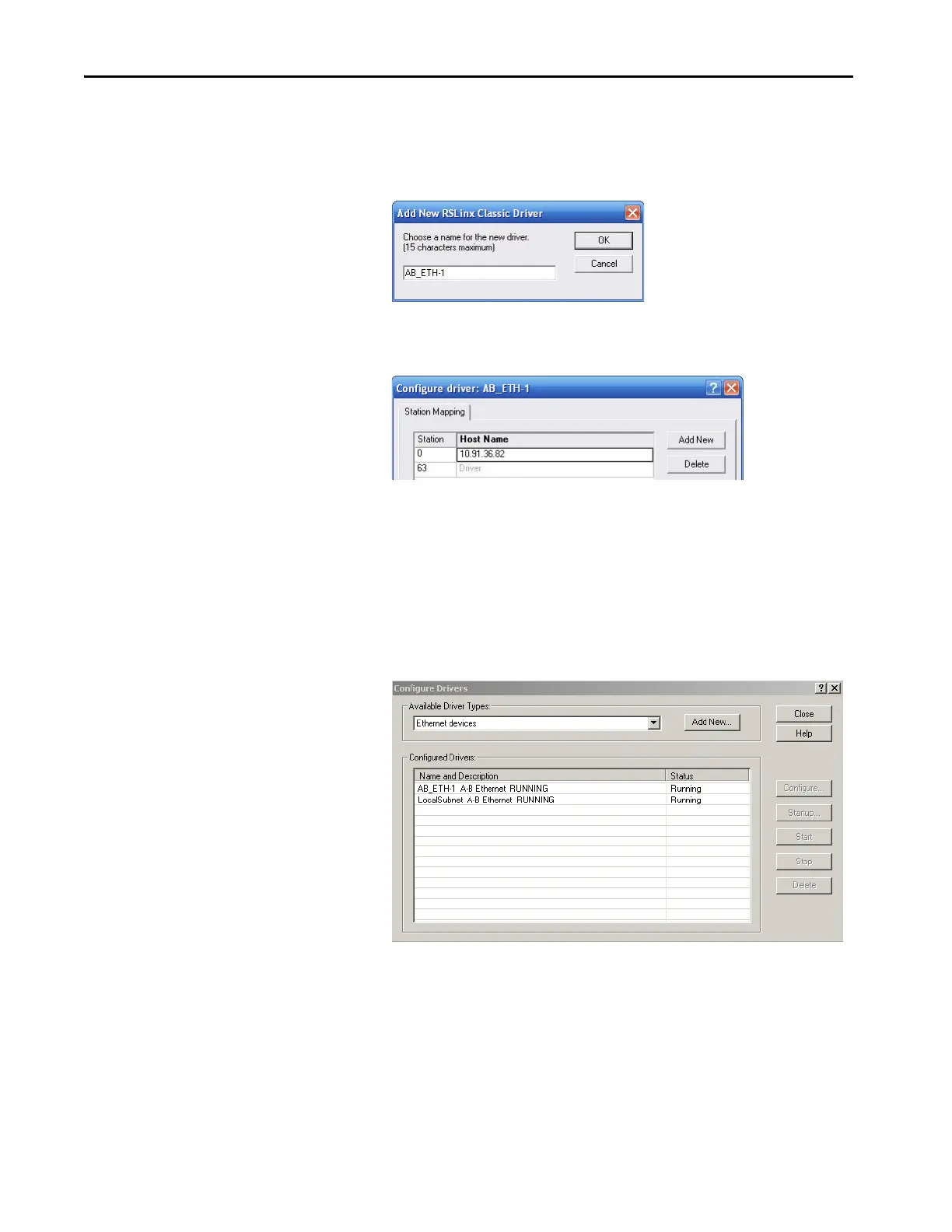

4. Click Add New.

The Add New RSLinx Classic Driver dialog box opens.

5. Type the new driver name.

6. Click OK.

The Configure driver dialog box opens.

7. Type the IP address.

For Kinetix 6200 drive systems, type the IP address of your Logix

Ethernet module.

For Kinetix 6500 drive systems, type the IP address of your IAM power

module.

8. Click OK.

The new Ethernet driver appears under Configured Drivers.

9. Click Close.

10. Minimize the RSLinx application dialog box.
