Configure and Start the Kinetix 6500 Drive System Chapter 7

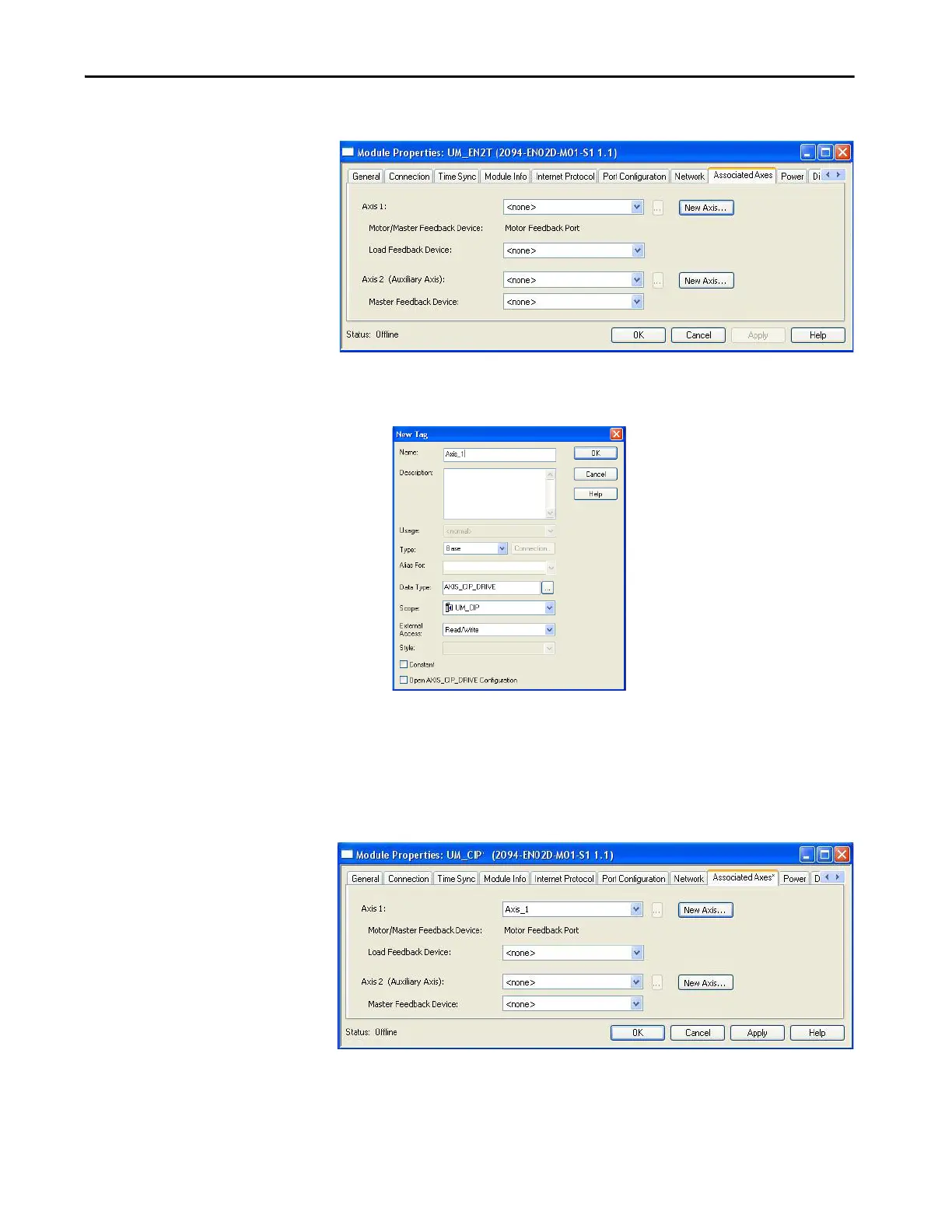

11. Click the Associated Axes tab.

12. Click New Axis.

The New Tag dialog box opens.

13. Type the axis Name.

AXIS_CIP_DRIVE is the default Data Type.

14. Click OK.

The new axis (Axis_1) appears under Motion Groups>Ungrouped Axes

in the Controller Organizer and is assigned as Axis 1.
