216 Rockwell Automation Publication 2094-UM002G-EN-P - August 2016

Chapter 8 Troubleshoot the Kinetix 6200 and Kinetix 6500 Drive System

Only selected drive exceptions are configurable. In the Drive Exception/Fault

Behavior tables beginning on page 218, the controlling attribute is given for

programmable fault actions.

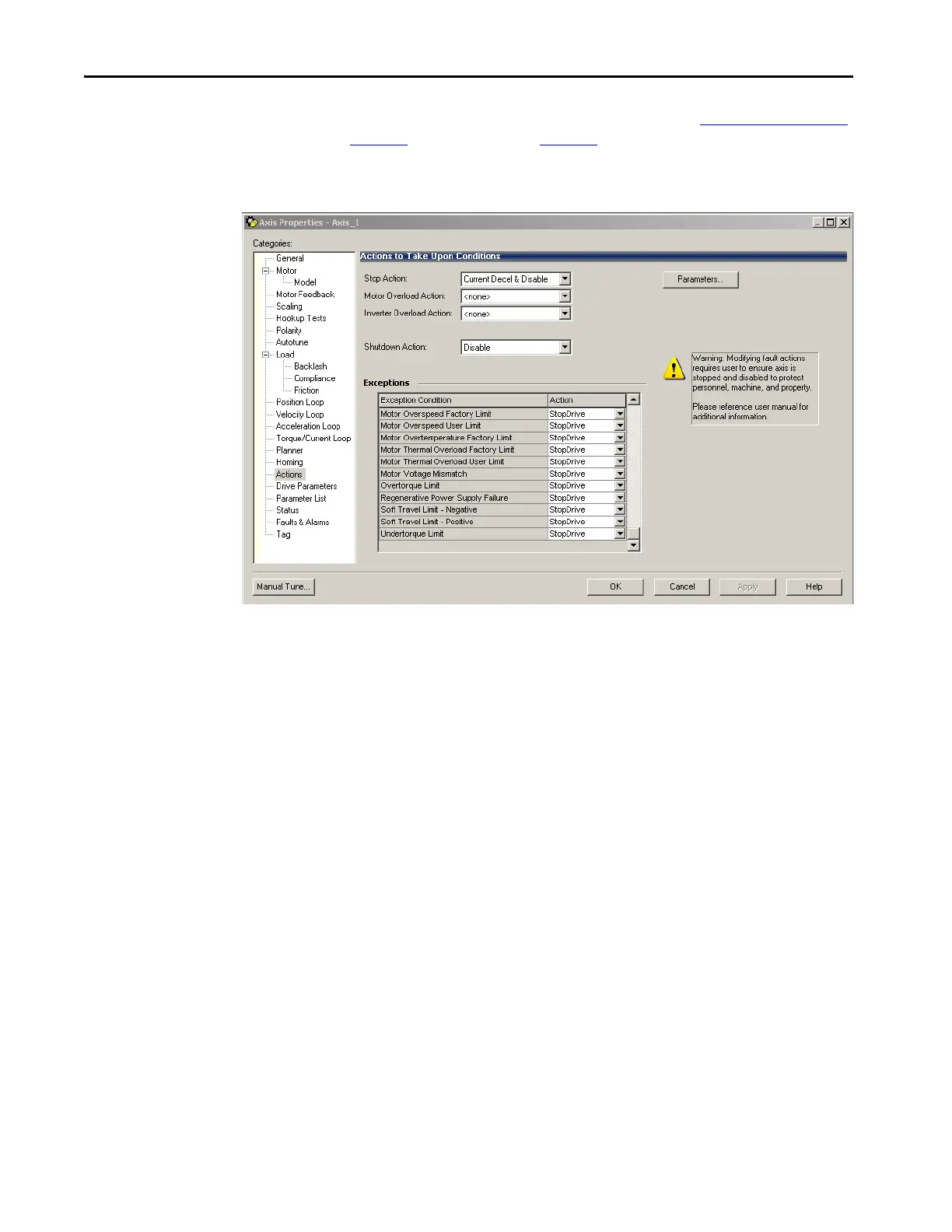

Figure 92 - Logix Designer Axis Properties - Actions Category

This dialog box applies to Kinetix 6500 (EtherNet/IP network) servo drives.
